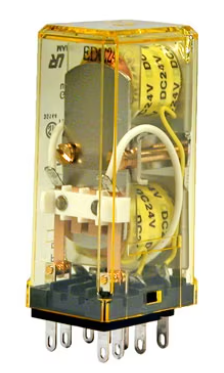

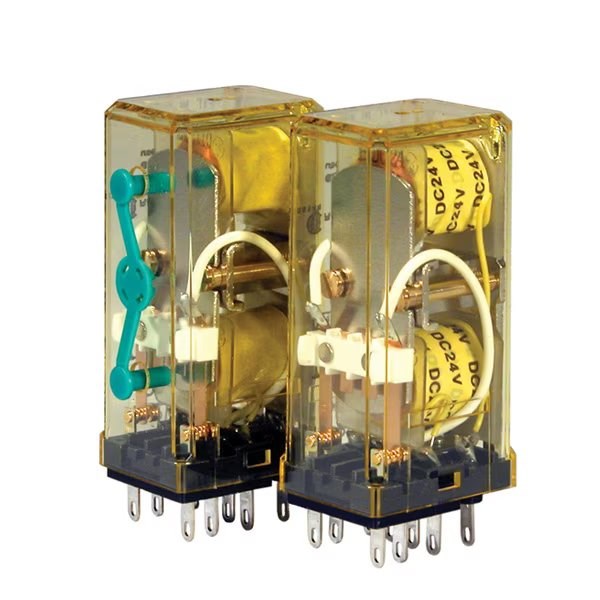

IDEC RELAY LATCHING, DPDT, 110V DC 3A, SELF MAINTAINED LATCH RY2KS-UDC110V

Product Code: RY2KS-UDC110V

The IDEC RY2KS-UDC110V is a latching relay designed for dependable performance with its dual coil permanent magnet. It features a DPDT configuration that allows for versatile switching applications and has a 3A contact rating for broad compatibility. The self-maintained latch ensures energy efficiency, while the blade terminals facilitate straightforward installation. This relay is suitable for various uses where reliable and energy-saving operation is required.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Power Consumption (VA) AC: 1.6VA (50Hz), 1.5VA (60Hz)
Resistance to Shock (m/s²) 200
Resistance to Vibrations 5 to 55Hz
Ambient Temperature Range (°C) -5 to 40
Coil Voltage DC (V) 110
Contact Configuration DPDT
Contact Material Gold-plated Silver
Dimensions (mm) 21W x 55.3H x 27.5D
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 Operations
Minimum Mechanical Life 5,000,000 Operations
Model Basic
Operational Temperature Range (°C) -5 to 40
Power Consumption (W) DC: 1.2W
Rated Current (A) 3
Terminal Type Blade
Weight (g) 67
