Product Code: RU2S-D48

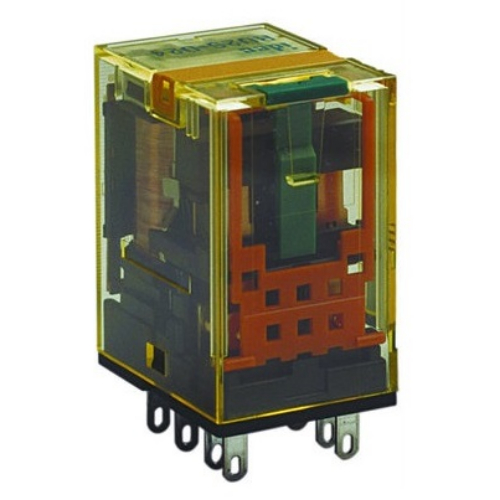

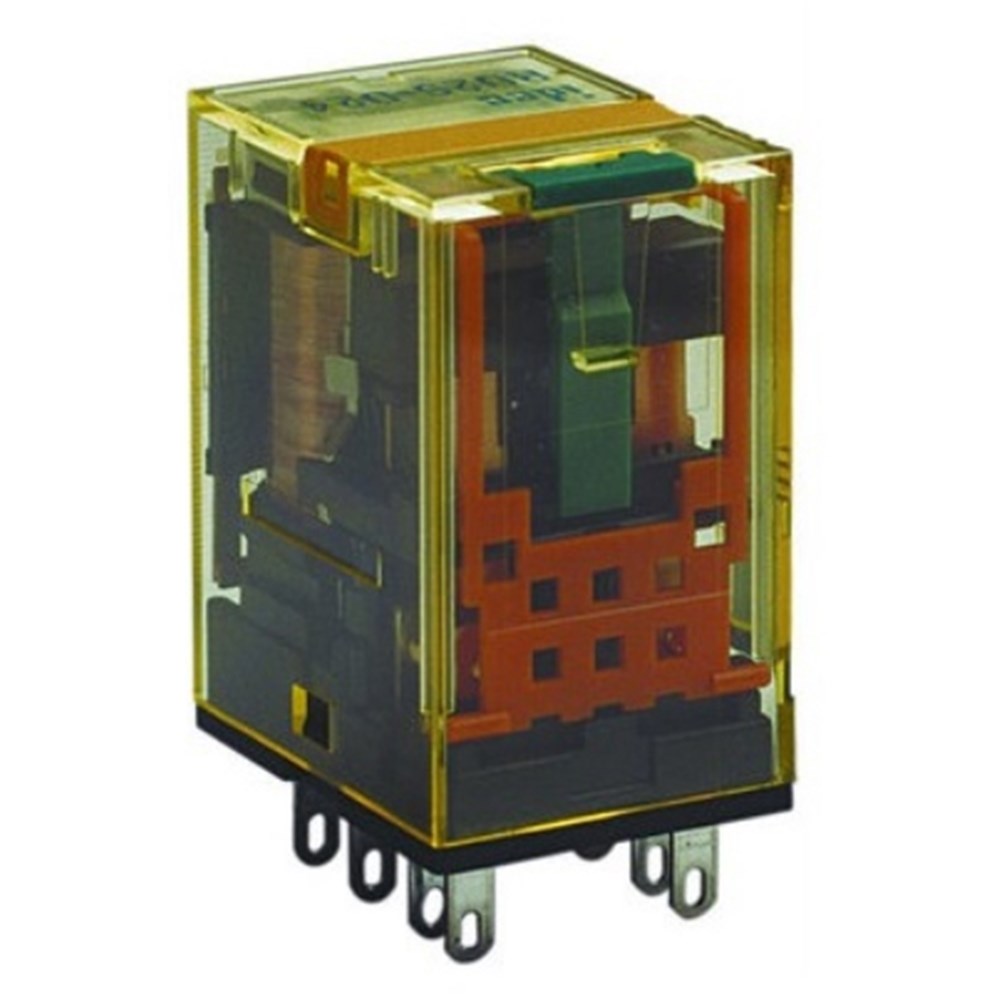

The IDEC RU2S-D48 is a DPDT plug-in relay designed for efficient operation with a 48VDC coil voltage and a 10A switching current. This compact relay includes an indicator and a manual latching lever for easy use. It features an environmentally friendly design with no internal wires and lead-free construction, complemented by a non-polarized LED indicator and mechanical flag indicator. The relay also comes with a snap-on yellow marking plate for quick identification, ensuring reliable performance with its 10A contact rating.

Brand	IDEC
Coil Voltage DC (V)	48
Contact Configuration	DPDT
Contact Material	Silver alloy
Dielectrical Strength (kV)	Between contact and coil: 2.5
Insulation Resistance (MO)	100
No. of Poles	2P
Operating Humidity	5 to 85% RH (no condensation)
Operational Temperature Range (°C)	–55 to +60
Rated Current (A)	10
Relay Type	RU2 2PDT Relay with LED indicator
Series	RU
Storage Temperature Range (°C)	–55 to +70
Suitable Base	SM2S-05C
Terminal Type	Plug-in
Weight (g)	35

Relays

IDEC PLUG-IN RELAY DPDT 48VDC 10A WITH LATCHING LEVER RU2S-D48
