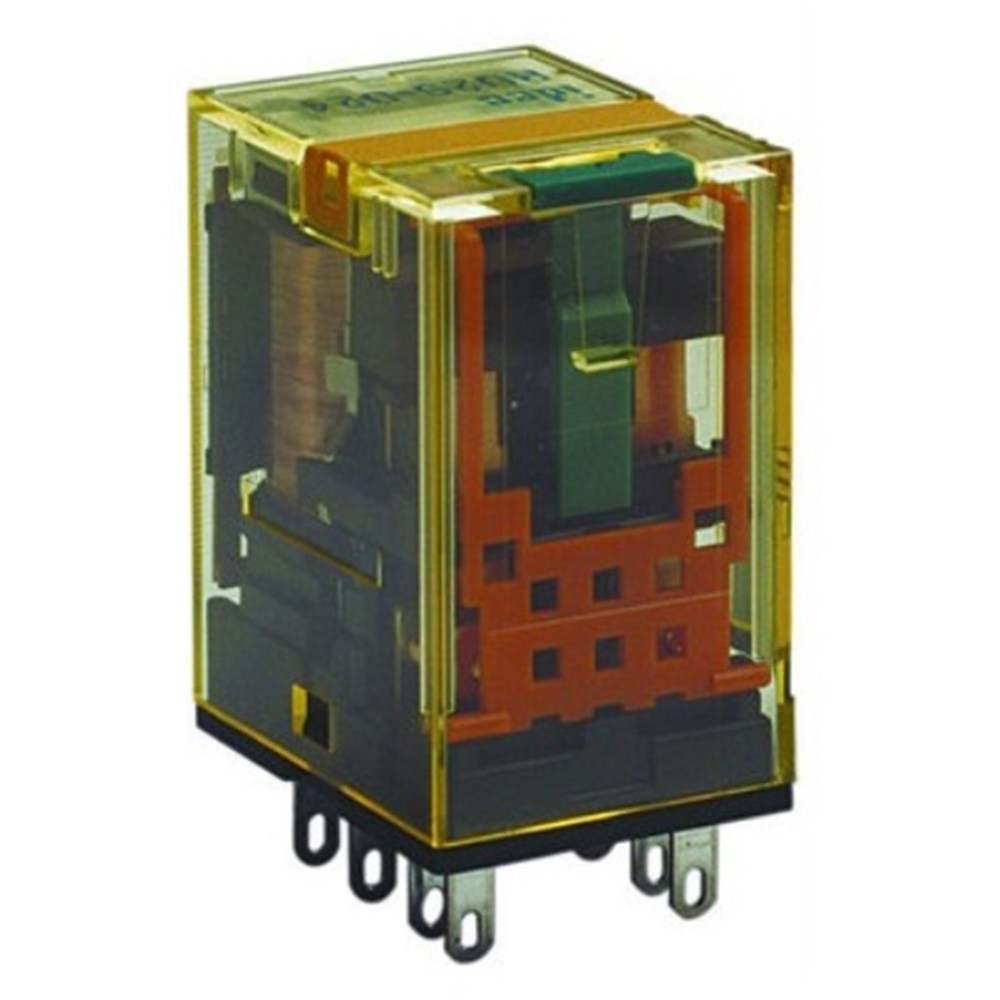

IDEC PLUG-IN RELAY DPDT 24VDC 10A WITH LATCHING LEVER RU2S-D24

Product Code: RU2S-D24

The IDEC RU2S-D24 is a DPDT plug-in relay designed for versatile applications, featuring a 24VDC coil voltage and a 10A switching current. It includes an indicator and manual latching lever for easy operation. The relay boasts an eco-friendly design with non-polarized LED indicators, mechanical flag indicators, and a snap-on yellow marking plate, all without internal wires for lead-free construction. Its contacts are rated at 10A, ensuring reliable performance.

Technical Specifications

Brand IDEC
Coil Voltage DC (V) 24
Contact Configuration DPDT
Contact Material Silver alloy
Dielectrical Strength (kV) Between contact and coil: 2.5
Insulation Resistance (MO) 100
No. of Poles 2P
Operating Humidity 5 to 85% RH (no condensation)
Operational Temperature Range (°C) –55 to +60
Rated Current (A) 10
Relay Type RU2 2PDT Relay with LED indicator
Series RU
Storage Temperature Range (°C) –55 to +70
Suitable Base SM2S-05C
Terminal Type Plug-in
Weight (g) 35
