Product Code: RU2S-A110

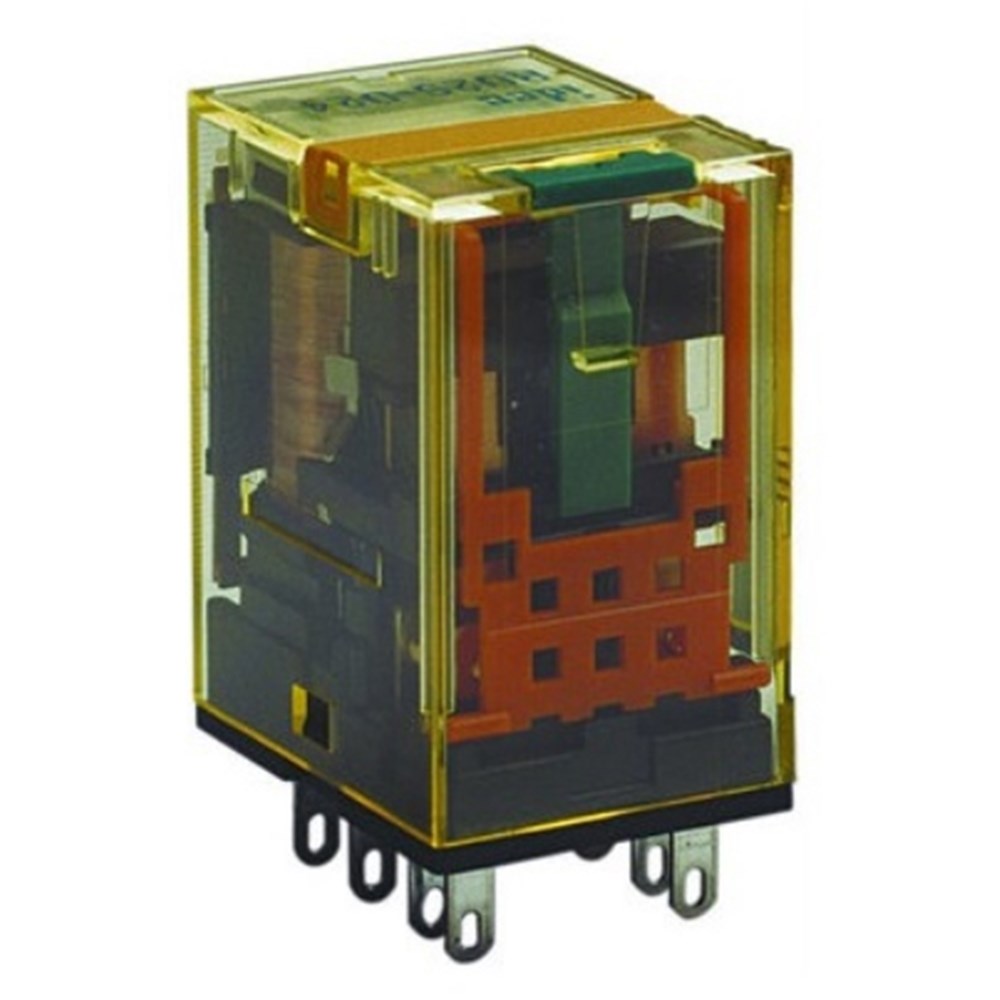

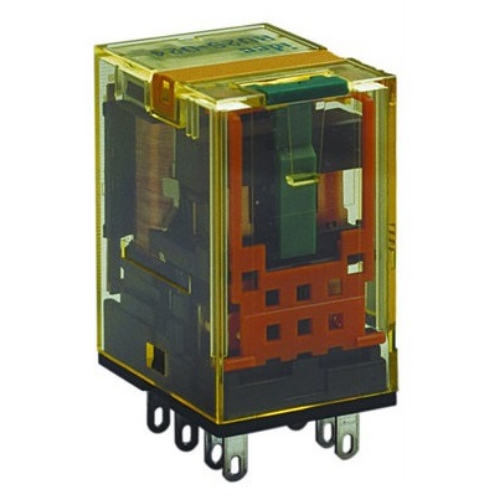

The IDEC RU2S-A110 is a DPDT plug-in relay designed for versatility and environmental consciousness. It features a 110VAC coil voltage and supports a 10A switching current, with the convenience of an indicator and manual latching lever. The relay boasts a non-polarized LED indicator, mechanical flag indicator, and comes with a snap-on yellow marking plate for easy identification. Its lead-free construction eliminates internal wiring, aligning with eco-friendly standards while maintaining a robust 10A contact rating.

Brand	IDEC
Coil Voltage AC (V)	110
Contact Configuration	DPDT
Contact Material	Silver alloy
Dielectrical Strength (kV)	Between contact and coil: 2.5
Insulation Resistance (MO)	100
No. of Poles	2P
Operating Humidity	5 to 85% RH (no condensation)
Operational Temperature Range (°C)	–55 to +60
Rated Current (A)	10
Relay Type	RU2 2PDT Relay with LED indicator
Series	RU
Storage Temperature Range (°C)	–55 to +70
Suitable Base	SM2S-05C
Terminal Type	Plug-in
Weight (g)	35

Relays

IDEC PLUG-IN RELAY DPDT 110VAC 10A WITH LATCHING LEVER RU2S-A110
