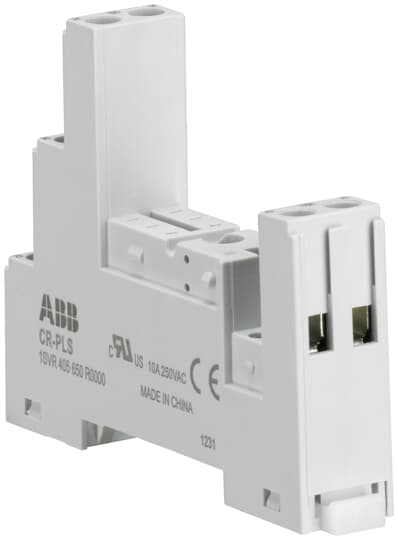

ABB RELAY BASE 1 & 2 C/O CR-P RELAY CRPLS

Product Code: CRPLS

The CR-PLS socket is from the CR-P (pcb) relay range. The logical socket with safety isolation is suitable for CR-P relays with 1 or 2 c/o (SPDT) output contacts. The socket has screw connection terminals. Pluggable function modules, holder and marker are available as accessories.

Technical Specifications

Rated Operational Current AC-12 230V (A) 2
Brand ABB
Ambient Temperature Range (°C) -40 to 70
Dimensions (mm) 15.5W x 61H x 75D
Function Logical Socket for PCB Relay 1 c/o or 2 c/o with Protective Separation
Rated Insulation Voltage (V) 5
Rated Operational Voltage (V) 250
Reference No. CR-PLS
Standards and Approvals IEC/EN 63000, IEC/EN 61984, UL 508
Storage Temperature Range (°C) -40 to 70
Terminal Type Screw
Weight (kg) 0.045
