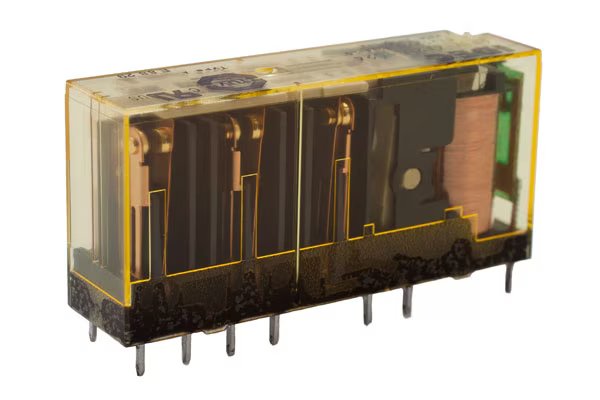

IDEC RELAY, 6 POLE, 5NO, 1NC, 6A, 24V DC, FORCE GUIDED FOR SAFETY CIRCUITS RF1V-5A1BLD1-D24

Product Code: RF1V-5A1BLD1-D24

The IDEC RF1V-5A1BLD1-D24 is a force-guided relay designed for safety circuits, featuring 6 poles with 5 Normally Open (NO) and 1 Normally Closed (NC) contacts. It handles up to 6A at 24V DC and meets EN50205 Type A TÜV standards. The relay includes a counter-electromotive force feature and a finger-safe DIN rail mount socket, as well as a PC board mount socket for secure and versatile installation.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 100
Maximum Switching Capacity AC (V) 250
Maximum Switching Capacity AC (VA) 1500
Maximum Switching Capacity DC (V) 30
Maximum Switching Capacity DC (W) 180
Resistance to Shock (m/s²) 200
Resistance to Vibrations 10 to 55Hz
Coil Voltage DC (V) 24
Dimensions (mm) 50W x 24H x 13D
Insulation Resistance (MO) 1000
Maximum Switching Current (A) 6
Minimum Mechanical Life 10,000,000
No. of Normally-closed Contacts 1
No. of Normally-open Contacts 5
No. of Poles 6
Operating Humidity 5 to 85%
Operational Temperature Range (°C) -40 to 85
Power Consumption (W) 0.5
Rated Current (mA) 20.8
Weight (g) 23
