Product Code: RF1V-5A1BL-D24

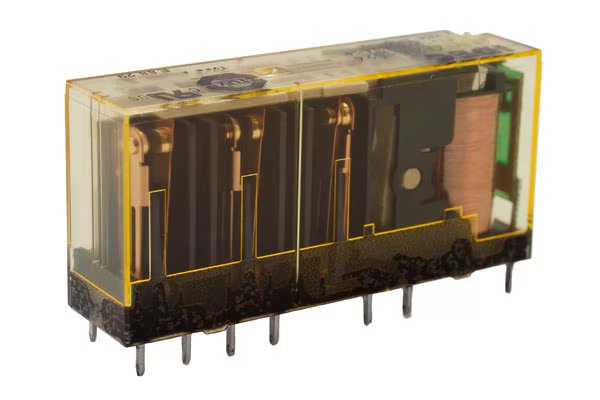

The IDEC RF1V-5A1BL-D24 is a force-guided relay designed for safety circuits, featuring a 6-pole configuration with 5 Normally Open (NO) and 1 Normally Closed (NC) contacts. It handles up to 6A at 24V DC and includes an LED indicator for easy status monitoring. This relay is EN50205 Type A TÜV approved, ensuring reliable operation in critical applications. Additionally, it offers finger-safe DIN rail mount and PC board mount sockets for secure installation and protection against contact.

Contact Resistance (mO)	100
Maximum Switching Capacity AC (V)	250
Maximum Switching Capacity AC (VA)	1500
Maximum Switching Capacity DC (V)	30
Maximum Switching Capacity DC (W)	180
Resistance to Shock (m/s²)	200
Resistance to Vibrations	10 to 55Hz
Brand	IDEC
Coil Voltage DC (V)	24
Dimensions (mm)	50W x 24H x 13D
Insulation Resistance (MO)	1000
Maximum Switching Current (A)	6
Minimum Mechanical Life	10,000,000
No. of Normally-closed Contacts	1
No. of Normally-open Contacts	5
No. of Poles	6
Operating Humidity	5 to 85%
Operational Temperature Range (°C)	-40 to 85
Power Consumption (W)	0.5
Rated Current (mA)	20.8
Weight (g)	23
