Product Code: RF1V-3A3BL-D24

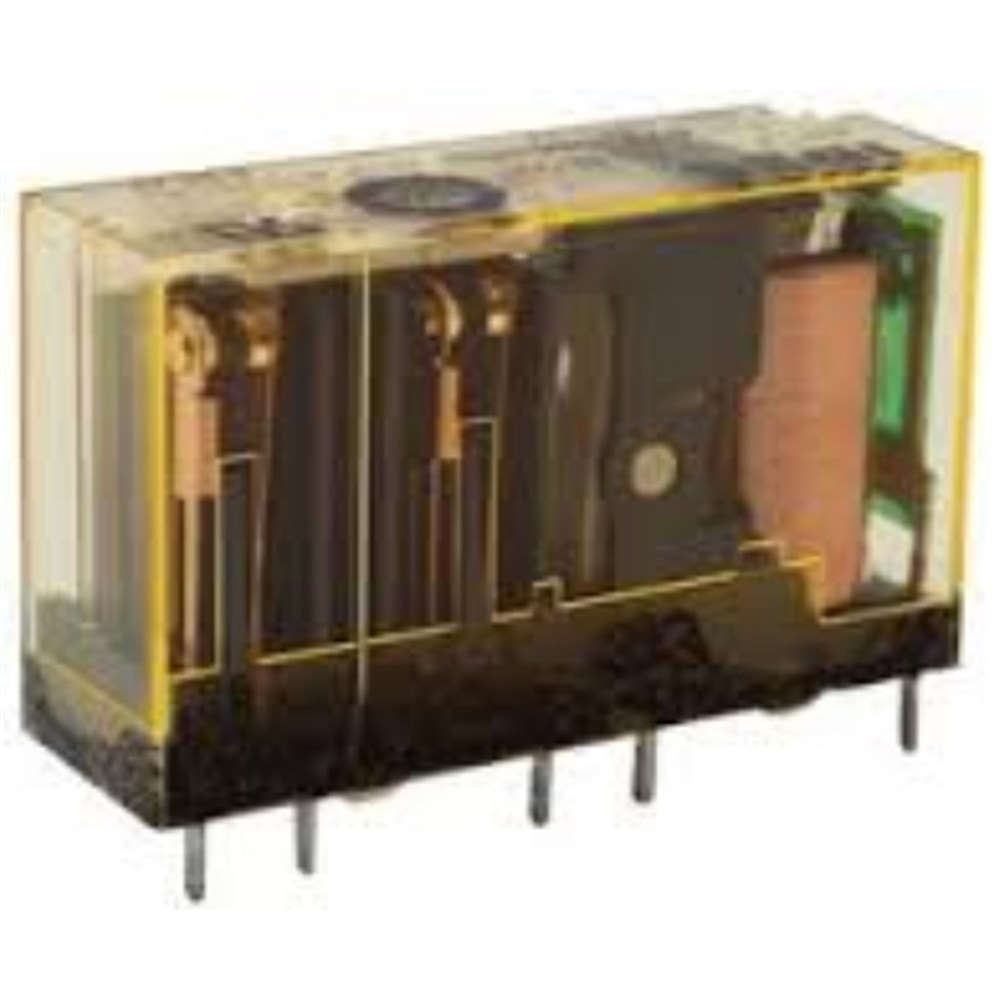

The IDEC RF1V-3A3BL-D24 is a force-guided relay designed for safety-critical circuits, featuring 6 poles with 3 Normally Open (NO) and 3 Normally Closed (NC) contacts. It has a current rating of 6A and operates at 24V DC. The relay includes an LED indicator for easy status monitoring and utilizes a force-guided contact mechanism that is EN50205 Type A TÜV approved. For secure and safe installation, it offers both finger-safe DIN rail mount and PC board mount sockets.

Brand	IDEC
Contact Resistance (mO)	100
Maximum Switching Capacity AC (V)	250
Maximum Switching Capacity AC (VA)	1500
Maximum Switching Capacity DC (V)	30
Maximum Switching Capacity DC (W)	180
Resistance to Shock (m/s²)	200
Resistance to Vibrations	10 to 55Hz
Coil Voltage DC (V)	24
Dimensions (mm)	50W x 24H x 13D
Insulation Resistance (MO)	1000
Maximum Switching Current (A)	6
Minimum Mechanical Life	10,000,000
No. of Normally-closed Contacts	3
No. of Normally-open Contacts	3
No. of Poles	6
Operating Humidity	5 to 85%
Operational Temperature Range (°C)	-40 to 85
Power Consumption (W)	0.5
Rated Current (mA)	20.8
Weight (g)	23

Relays

IDEC RELAY, 6 POLE, 3 NO, 3 NC, 6A, 24V DC, FORCE GUIDED FOR SAFETY CIRCUITS RF1V-3A3BL-D24
