Product Code: RF1V-3A1BL-D24

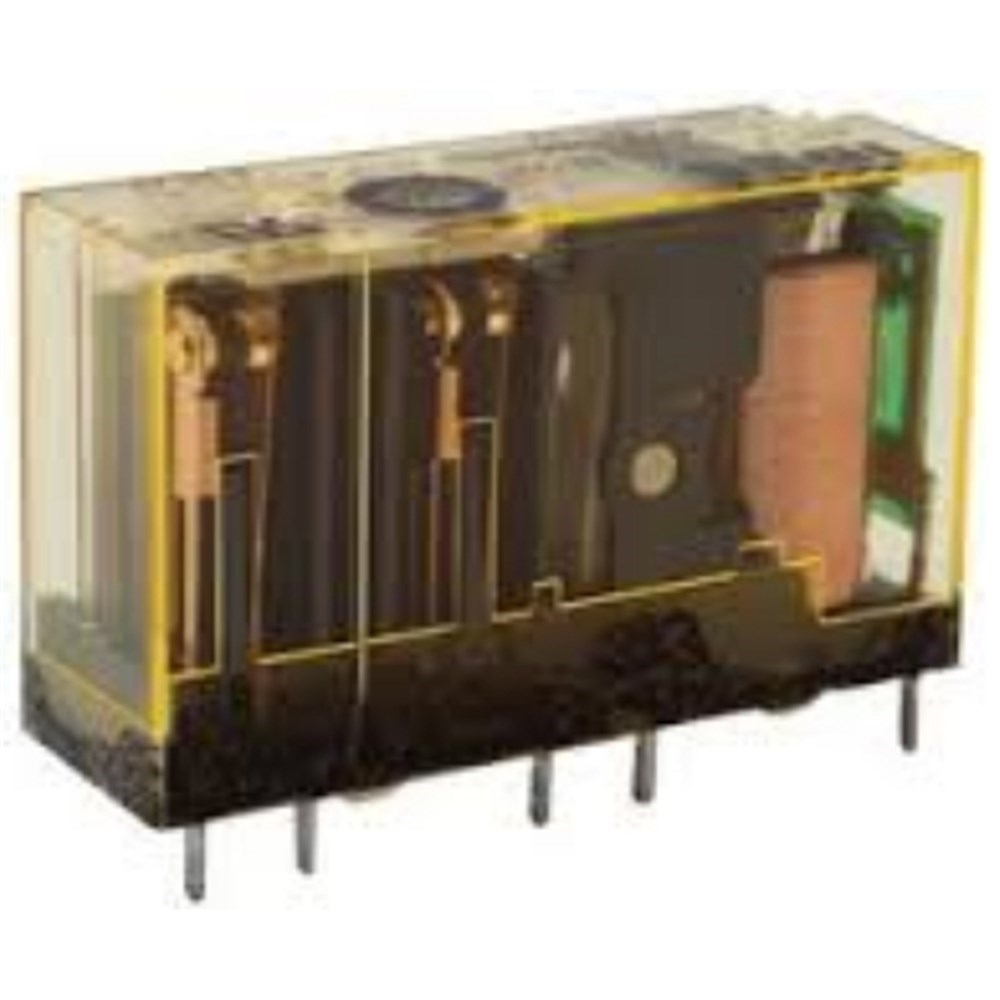

The IDEC RF1V-3A1BL-D24 is a 4-pole relay designed for safety circuits, featuring 3 Normally Open (NO) and 1 Normally Closed (NC) contacts with a current rating of 6A at 24V DC. It includes an LED indicator for easy status monitoring and utilizes a force guided contact mechanism to ensure reliable switching. This relay is EN50205 Type A TÜV approved, indicating adherence to stringent safety standards. Additionally, it offers finger-safe DIN rail mount and PC board mount sockets for secure installation and protection against accidental contact.

Brand	IDEC
Contact Resistance (mO)	100
Maximum Switching Capacity AC (V)	250
Maximum Switching Capacity AC (VA)	1500
Maximum Switching Capacity DC (V)	30
Maximum Switching Capacity DC (W)	180
Resistance to Shock (m/s²)	200
Resistance to Vibrations	10 to 55Hz
Coil Voltage DC (V)	24
Dimensions (mm)	40W x 24H x 13D
Insulation Resistance (MO)	1000
Maximum Switching Current (A)	6
Minimum Mechanical Life	10,000,000
No. of Normally-closed Contacts	1
No. of Normally-open Contacts	3
No. of Poles	4
Operating Humidity	5 to 85%
Operational Temperature Range (°C)	-40 to 85
Power Consumption (W)	0.36
Rated Current (mA)	15
Weight (g)	20

Relays

IDEC RELAY, 4 POLE, 3NO, 1NC, 6A,24V DC, FORCE GUIDED FOR SAFETY CIRCUITS RF1V-3A1BL-D24
