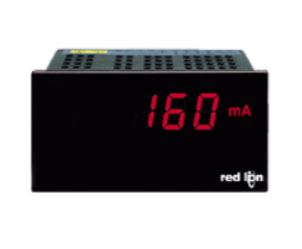

RED LION PAX LITE AC CURRENT METER PAXLIA00

The AC Current Meter is a versatile device that allows you to measure AC current in various ranges. With selectable ranges from 0 to 199.9uA/199.9mV, 0 to 1.999mA, 0 to 19.99mA, 0 to 199.9mA, and 0 to 1.999A, you can easily customize the meter to suit your specific needs. This meter features a clear and easy-to-read display with a 3 1/2 digit, 0.56" (14.2 mm) LED screen that includes polarity indication. The compact size of the meter makes it suitable for installation in tight spaces, with a standard 1/8 DIN (50 mm x 97 mm) form factor. The built-in scaling provisions allow you to adjust the decimal point location according to your preference or requirements. The meter also includes auto zeroing circuits for accurate measurements and over-range indication for added convenience. With its NEMA 4X/IP65 sealed front bezel, this meter is designed to withstand harsh environments and provide reliable performance even in challenging conditions. Additionally, there is an option for an optional custom units overlay with backlighting for enhanced visibility. Please note that accessory shunts are available for higher current ranges if needed.
