Product Code: CUB5IR00

The product features four selectable D.C. ranges: 200 uA, 2 mA, 20 mA, and 200 mA. It has a minimum and maximum display capture with a reflective display measuring 0.48" (12.2 mm) high digits. Optional serial communication modules (RS-232 or RS-485) are available, as well as optional setpoint cards (dual sink or relay) and a USB programming card. The product operates from a power source of 9 to 28 VDC and can be controlled through the front panel or Crimson programmable NEMA 4X/IP65 sealed front bezel.

Number of Display Digits	5
Brand	RED LION
Display Screen Size (Inch)	0.48
Degree of Protection	IP65
Dimensions (mm)	74.9W x 39.1H x 43.4D
Display Screen Type	Reflective LCD
Inputs	200µA, 2mA, 20mA, or 200mA
Operational Temperature Range (°C)	-35 to 75
Rated Voltage DC (V)	9 - 28
Standards and Approvals	EN 61326-1, IEC/EN 61010-1, EN 61010-1, EN 61010-2-030
Storage Temperature Range (°C)	-35 to 85

Process Meters & Controllers

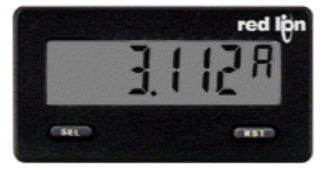

RED LION CUB5 DC CURRENT METER WITH REFLECTIVE DISPLAY CUB5IR00

Product Code: CUB5IR00
