Number of Display Digits	6
Output Type	Dual Relay & Solid State
Response Time (ms)	10
Sensor Power	12V DC (± 15%) at 100mA Max.
Brand	RED LION
Display Screen Size (Inch)	0.3 (Main), 0.2 (Secondary)
Degree of Protection	IP65
Dimensions (mm)	49.5W x 49.5H x 115.3D
Display Screen Type	Backlit LCD
Mounting Type	Panel Mount
Operating Humidity	85% (Non Condensing)
Operational Temperature Range (°C)	0°C to 50°C
Pollution Degree	2
Rated Voltage AC (V)	85 - 250
Standards and Approvals	EN 61326-1, EN 61010-1, EN 61010-2-030, RoHS Compliant, UL Recognized
Storage Temperature Range (°C)	-40°C to 70°C
Type	Batch Counter
Weight (kg)	0.17

Process Meters & Controllers

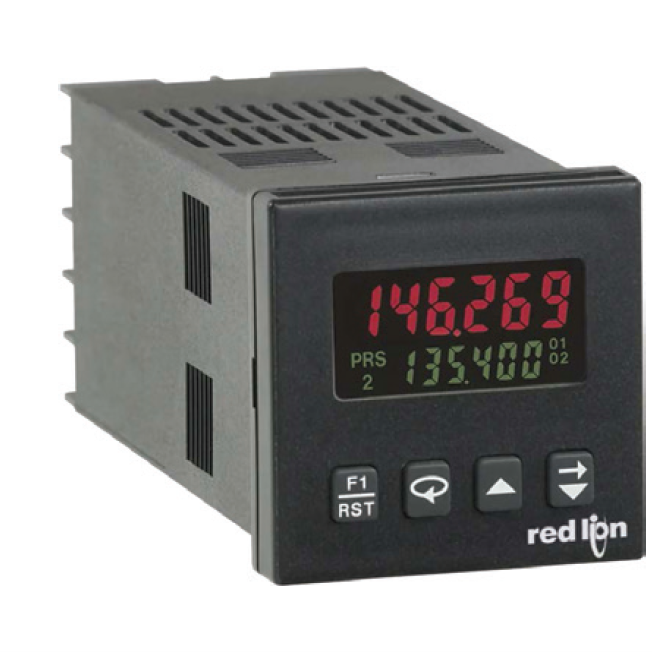

RED LION 3 PRESET BATCH COUNTER, BACKLIT C48CB104
