Brand	ABB
Impulse Withstand Voltage (kV/1.2µS)	4
AC Voltage (V)	230/400
Application	Commercial and Industrial
Current Rating (A)	40
Degree of Protection	IP20
Family	F200
Housing Material	Insulation Group I - II, RAL 7035
Icn-Rated Short Circuit Capacity (kA)	10
Inc-Rated Conditional Short Circuit Capacity (kA)	10
Mounting Type	DIN Rail
No. of Poles	4P
Poles	4P
Pollution Degree	2
Power Loss (W)	1.81/pole
Rated Conditional Short-Circuit Current - Inc (kA)	10
Rated Current (A)	40
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage AC (V)	500
Rated Operational Voltage AC (V)	230/400
Rated Residual Current (mA)	30
Rated Short-Circuit Capacity - Icn (kA)	10
Rated Voltage AC (V)	240/415
Residual Current Type	B
Series	F200
Type of Residual Current	B

DIN MCB

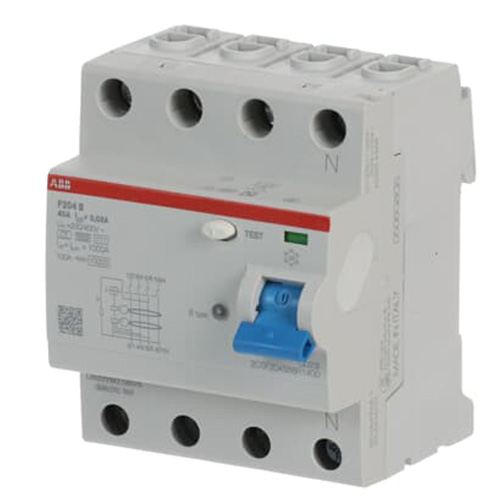

ABB F204B40/0.03 RCCB 10kA 3P+N 40A Type B 30mA INDUSTRIAL
