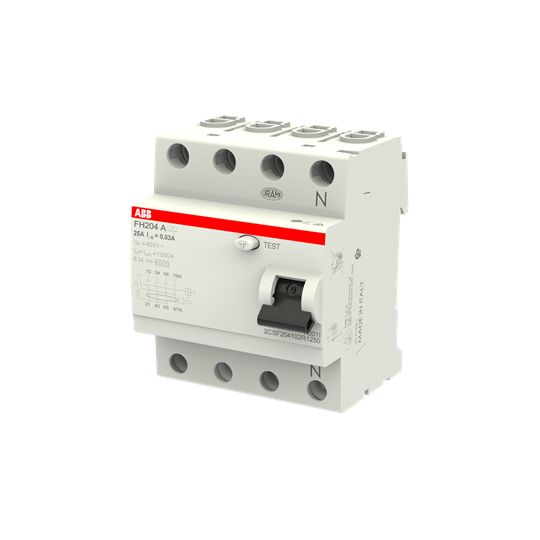

ABB RCCB 4 POLE 25A TYPE A 6kA FH204A25/0.03

Product Code: FH204A25/0.03

The RCCBs FH200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous AC and A types is particularly suitable for installation in domestic applications.

Technical Specifications

Leakage Current Type A
Rated Service Short-Circuit Breaking Capacity - Ics (kA) 1
Brand ABB
Degree of Protection IP2X
Dimensions (mm) 70W x 85H x 69D
Mounting Type DIN Rail
No. of Modules - Width 17.5 mm 4
No. of Poles 4
Operational Temperature Range (°C) -5 to 40
Power Loss (W) 1.3W per Pole
Rated Conditional Short-Circuit Current - Inc (kA) 6
Rated Current (A) 25
Rated Frequency (Hz) 50
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 500
Rated Operational Voltage AC (V) 230/400
Rated Residual Current (mA) 30
Rated Voltage (V) 230/400
Standards and Approvals IEC/EN 61008
Storage Temperature Range (°C) -40 to 70
Type of Residual Current A
Weight (kg) 0.38
