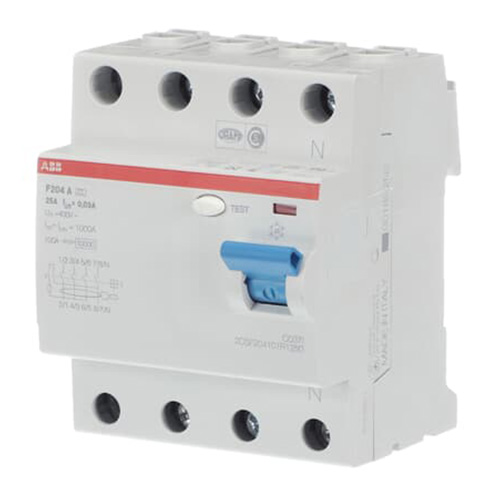

ABB F204A25/0.03 RCCB 10kA 3P+N 25A TYPE A 30mA INDUSTRIAL

Product Code: F204A25/0.03

The ABB RCCB is a Type A 30mA circuit breaker designed for commercial and industrial applications. It provides protection against earth leakage faults at 230/400VAC with a breaking capacity of 10kA. This RCCB has a 3P+N configuration and a rated current of 25A. Trust ABB for reliable and efficient electrical protection in your commercial or industrial setting.

Technical Specifications

Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 4
AC Voltage (V) 230/400
Application Commercial and Industrial
Current Rating (A) 25
Degree of Protection IP20
Family F200
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 10
Mounting Type DIN Rail
No. of Poles 4P
Poles 4P
Pollution Degree 2
Power Loss (W) 1.3/pole
Rated Conditional Short-Circuit Current - Inc (kA) 10
Rated Current (A) 25
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage AC (V) 500
Rated Operational Voltage AC (V) 230/400
Rated Residual Current (mA) 30
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Voltage AC (V) 240/415
Residual Current Type A
Series F200
Type of Residual Current A
