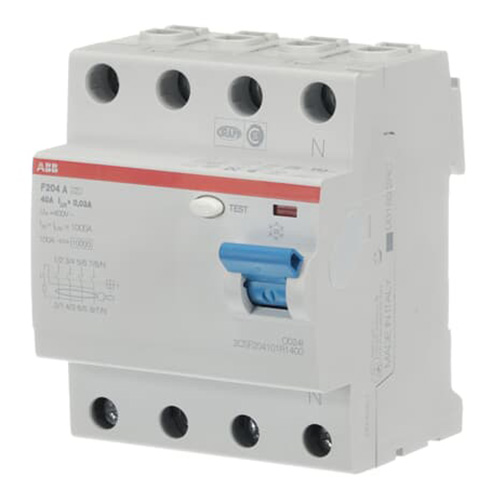

ABB F204A40/0.03 RCCB 10kA 3P+N 40A TYPE A 30mA INDUSTRIAL

Product Code: F204A40/0.03

The ABB RCCB is a Type A 30mA circuit breaker designed for commercial and industrial use. It offers protection against earth leakage faults and has a rating of 10kA at 230/400VAC. With a 3P+N configuration and a current rating of 40A, this RCCB is suitable for various applications in the electrical industry. Trust ABB for reliable and efficient protection against electrical faults.

Technical Specifications

Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 4
AC Voltage (V) 230/400
Application Commercial and Industrial
Current Rating (A) 40
Degree of Protection IP20
Family F200
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 10
Mounting Type DIN Rail
No. of Poles 4P
Poles 4P
Pollution Degree 2
Power Loss (W) 3.2/pole
Rated Conditional Short-Circuit Current - Inc (kA) 10
Rated Current (A) 40
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage AC (V) 500
Rated Operational Voltage AC (V) 230/400
Rated Residual Current (mA) 30
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Voltage AC (V) 240/415
Residual Current Type A
Series F200
Type of Residual Current A
