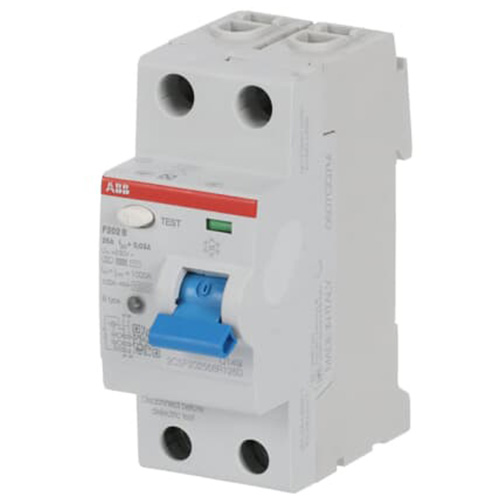

ABB F202B25/0.03 RCCB 10kA 1P+N 25A Type B 30mA INDUSTRIAL

Product Code: F202B25/0.03

The ABB RCCB is a Type B circuit breaker designed for commercial and industrial use. It offers protection against earth leakage faults with a sensitivity of 30mA. This RCCB has a breaking capacity of 10kA at 230VAC and is suitable for single-phase and neutral applications with a current rating of 25A.

Technical Specifications

Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 4
AC Voltage (V) 230/240
Application Commercial and Industrial
Current Rating (A) 25
Degree of Protection IP40 (Housing), IP20 (Terminals)
Family F200
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 10
Mounting Type DIN Rail
No. of Poles 2P
Poles 2P
Pollution Degree 3
Power Loss (W) 1.58
Rated Conditional Short-Circuit Current - Inc (kA) 10
Rated Current (A) 25
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage AC (V) 440
Rated Operational Voltage AC (V) 230
Rated Residual Current (mA) 30
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Voltage AC (V) 230/400
Residual Current Type B
Series F200
Test Voltage (kV) 0.17-0.253
Type of Residual Current B
