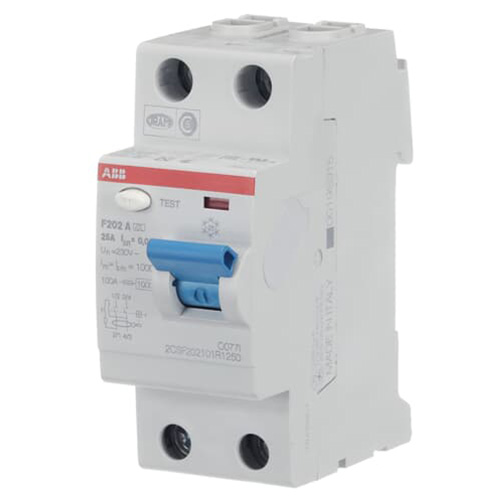

ABB F202A25/0.03 RCCB 10kA 1P+N 25A TYPE A 30mA INDUSTRIAL

Product Code: F202A25/0.03

The ABB RCCB is a Type A 30mA circuit breaker designed for commercial and industrial applications. It offers protection against earth leakage faults and has a breaking capacity of 10kA at 230VAC. This single pole plus neutral (1P+N) device has a rated current of 25A. Trust ABB for reliable and efficient electrical protection in your commercial or industrial setting.

Technical Specifications

Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 4
AC Voltage (V) 230/240
Application Commercial and Industrial
Current Rating (A) 25
Degree of Protection IP20
Family F200
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 10
Mounting Type DIN Rail
No. of Poles 2P
Poles 2P
Pollution Degree 2
Power Loss (W) 1.0/pole
Rated Conditional Short-Circuit Current - Inc (kA) 10
Rated Current (A) 25
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage AC (V) 500
Rated Operational Voltage AC (V) 230
Rated Residual Current (mA) 30
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Voltage AC (V) 230/400
Residual Current Type A
Series F200
Type of Residual Current A
