ABB DS203NCC25A30 RCBO 6kA 3P+N 25A C CURVE TYPE A 30mA
Zoom
Zoom
Zoom

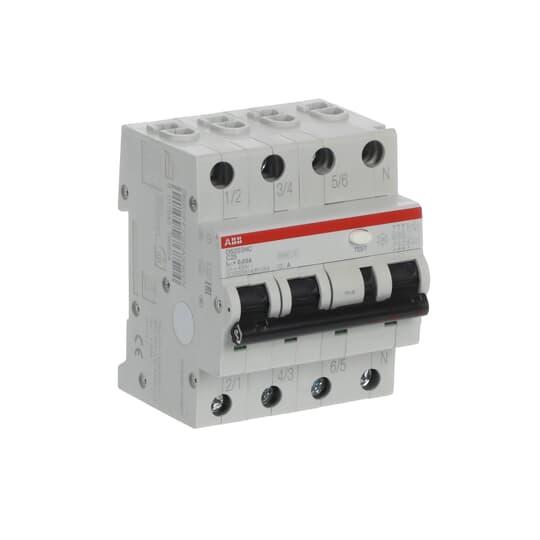

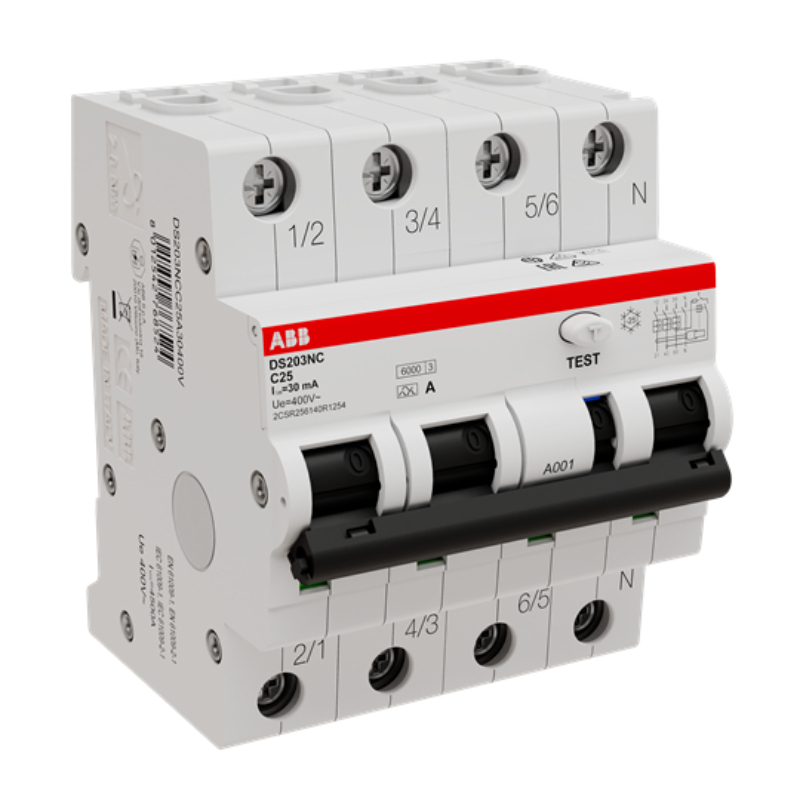

ABB DS203NCC25A30 RCBO 6kA 3P+N 25A C CURVE TYPE A 30mA
Product Code: DS203NCC25A30
The ABB RCBO is a combined MCB/RCD that provides 6kA protection at 230/400VAC. It has 3P+N configuration and a rating of 25A with C curve. The Type A RCBO offers 30mA protection against short circuit, thermal overload, and earth leakage. It is designed for commercial and industrial applications.
Technical Specifications
Brand
ABB
Impulse Withstand Voltage (kV/1.2µS)
4
AC Voltage (V)
400/415
Application
Commercial and Industrial
Breaking Capacity (kA)
10 @230 V AC
Breaking Capacity 230V AC - Icu (kA)
10
Current Rating (A)
25
Curve Type
C Curve
Degree of Protection
IP20
Family
DS203NC
Housing Material
Insulation Group II, RAL 7035
Icn-Rated Short Circuit Capacity (kA)
6
Inc-Rated Conditional Short Circuit Capacity (kA)
10
Mounting Type
DIN Rail
No. of Poles
3P+N
Poles
3P+N
Pollution Degree
2
Power Loss (W)
10.3
Rated Conditional Short-Circuit Current - Inc (kA)
10
Rated Current (A)
25
Rated Frequency (Hz)
50/60
Rated Impulse Withstand Voltage (kV)
4
Rated Insulation Voltage AC (V)
500
Rated Operational Voltage AC (V)
400/415
Rated Residual Current (mA)
30
Rated Short-Circuit Capacity - Icn (kA)
6
Rated Voltage AC (V)
230/400
Residual Current Type
A
Series
DS203NC
Trip Curve
C Curve
Type of Residual Current
A
Documents
Datasheet
IPD Product Catalogue V17
