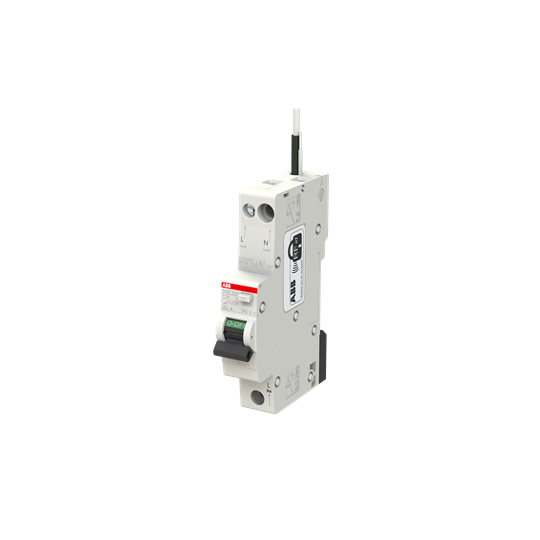

ABB RCBO 6KA 1P+N 25A 30mA TYPE A, C CURVE 1 MODULE MEDIUM BODY DSE201C25A30

Product Code: DSE201C25A30

DSE201 is a 1P+N residual current circuit breaker with overcurrent protection (RCBO) in one module for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts. DSE201 is equipped with supply neutral wire and functional earth wire.

Technical Specifications

Dielectric Test Voltage (kV) 2
Energy Limiting Class 3
Leakage Current Type A
Release Type C
Test Voltage (V) 195 - 264
Brand ABB
Connecting Capacity Busbar 10mm² Rigid 1 - 25mm² Flexible 1 - 16mm²
Curve Type C
Degree of Protection Terminals: IP20 Housing: IP40
Dimensions (mm) 18W x 100H x 69D
Mounting Type DIN Rail
No. of Modules - Width 17.5 mm 1
No. of Poles 1
Operational Temperature Range (°C) -25 to 55
Overvoltage Category III
Power Loss (W) 3.8
Rated Conditional Short-Circuit Current - Inc (kA) 6
Rated Current (A) 25
Rated Frequency (Hz) 50 - 60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 500
Rated Operational Voltage AC (V) 230 - 240
Rated Residual Current (mA) 30
Rated Short-Circuit Capacity - Icn (kA) 6
Rated Voltage AC (V) 230 - 240
Standards and Approvals IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1
Terminal Type Screw Terminals
Type of Residual Current Type A
Weight (g) 180
Wire Stripping Length (mm) Top: 11mm Bottom: 12.5mm
