Breaking Capacity 240V AC - Icu (kA)	6
Brand	ABB
Impulse Withstand Voltage (kV/1.2µS)	4
AC Voltage (V)	230/240
Breaking Capacity (kA)	6 @240 V AC
Current Rating (A)	40
Curve Type	C Curve
Degree of Protection	IP40 (Housing), IP20 (Terminals)
Dimensions (mm)	35Wx85Hx69D
Family	DS200
No. of Poles	1P+N
Operational Temperature Range (°C)	-25 to +55
Poles	1P+N
Rated Current (A)	40
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage AC (V)	500
Rated Operational Voltage AC (V)	230/240
Rated Residual Current (mA)	30
Rated Voltage (V)	230
Residual Current Type	A
Series	DS200
Terminal Type	Screw Terminals
Trip Curve	C Curve
Type of Residual Current	A

DIN MCB

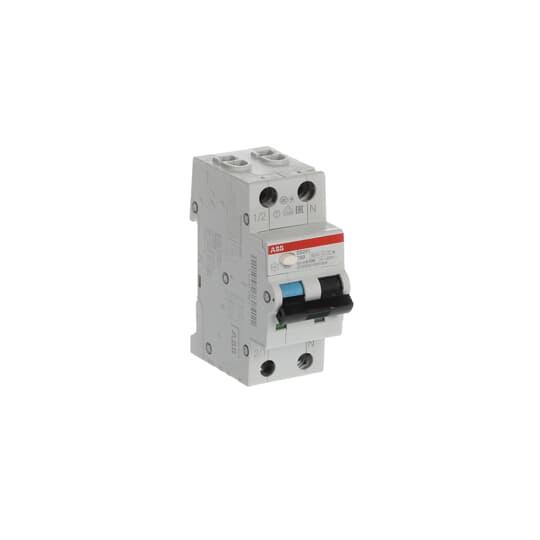

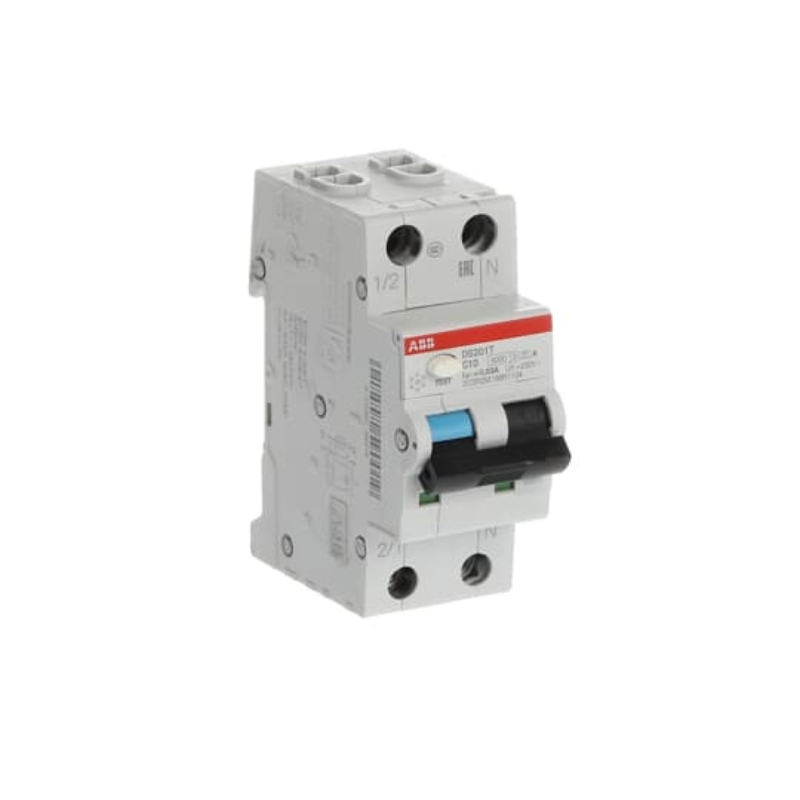

ABB RCBO, 6kA 1P+N 40A C-CURVE 30mA DS201C40A30
