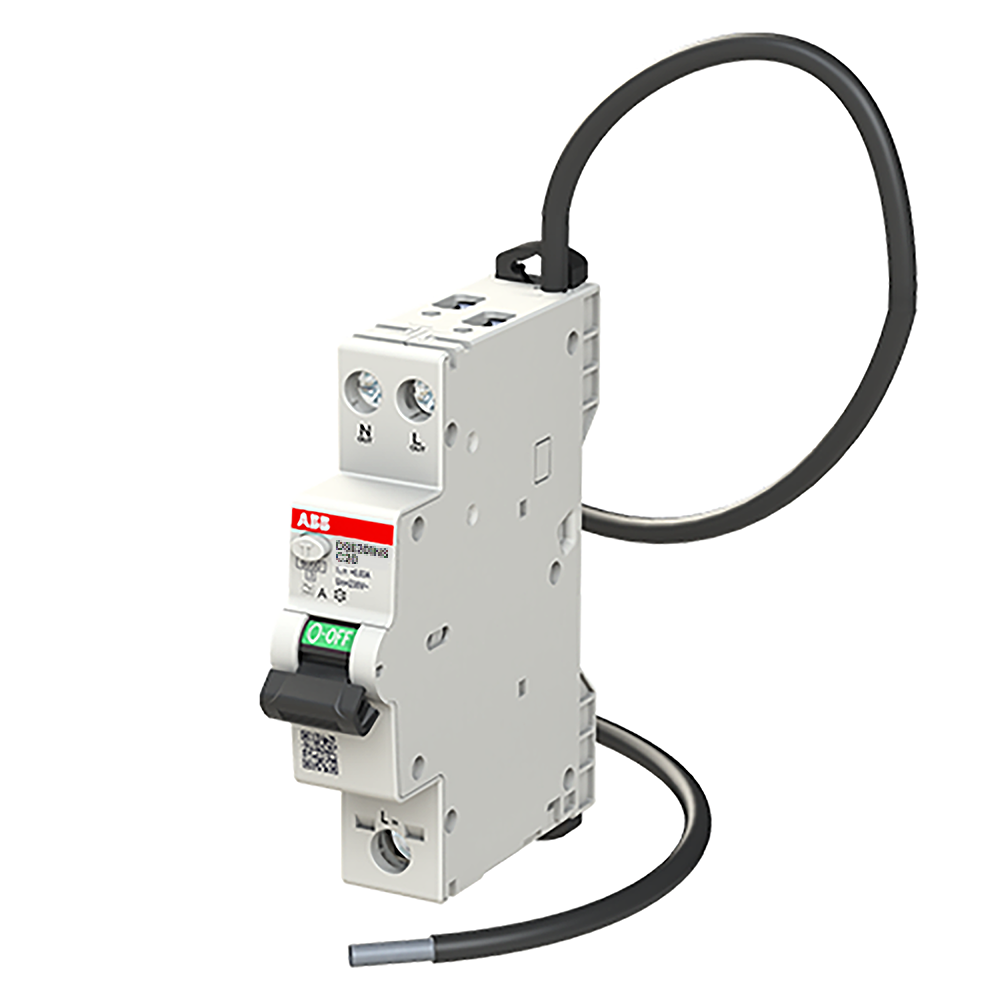

ABB DSE201C20A30NS RCBO 6kA 1P+N 20A C CURVE TYPE A 30mA

Product Code: DSE201C20A30NS

The ABB RCBO is a compact combined MCB/RCD designed for commercial and industrial use. It has a breaking capacity of 6kA at 230VAC and is suitable for single-phase and neutral applications. With a current rating of 20A and a C curve, it provides protection against short circuits, thermal overload, and earth leakage. The Type A device features neutral switching and operates with a sensitivity of 30mA.

Technical Specifications

Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 6
AC Voltage (V) 230
Application Commercial and Industrial
Current Rating (A) 20
Curve Type C Curve
Degree of Protection IP40 (Housing), IP20 (Terminals)
Family DSE201NS
Housing Material Insulation Group I, RAL 7035
Icn-Rated Short Circuit Capacity (kA) 6
Mounting Type DIN Rail
No. of Poles 1P+N
Poles 1P+N
Pollution Degree 3
Rated Current (A) 20
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage DC (V) 440
Rated Residual Current (mA) 30
Rated Short-Circuit Capacity - Icn (kA) 6
Rated Voltage AC (V) 230
Residual Current Type A
Series DSE201NS
Trip Curve C Curve
Type of Residual Current A
