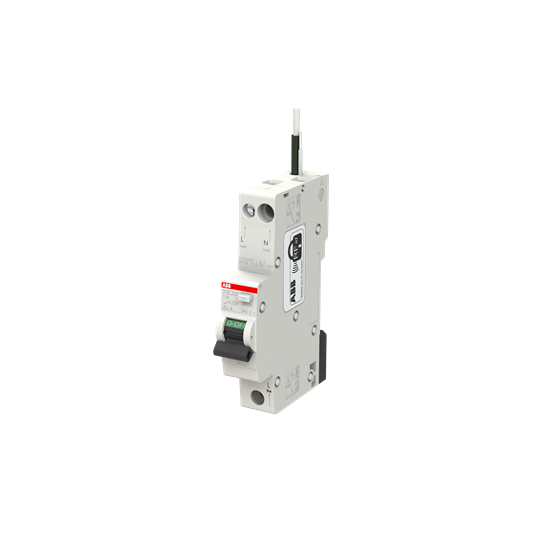

ABB RCBO 6kA 1P+N 16A 30mA TYPE A, C CURVE 1 MODULE MEDIUM BODY DSE201C16A30

Product Code: DSE201C16A30

DSE201 is a 1P+N residual current circuit breaker with overcurrent protection (RCBO) in one module for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts. DSE201 is equipped with supply neutral wire and functional earth wire.

Technical Specifications

Brand ABB
Dielectric Test Voltage (kV) 2
Energy Limiting Class 3
Leakage Current Type A
Test Voltage (V) 195 - 264
Connecting Capacity Busbar 10mm² Rigid 1 - 25mm² Flexible 1 - 16mm²
Curve Type C
Degree of Protection Terminals: IP20 Housing: IP40
Dimensions (mm) 18W x 100H x 69D
Mounting Type DIN Rail
No. of Modules - Width 17.5 mm 1
No. of Poles 1
Operational Temperature Range (°C) -25 to 55
Overvoltage Category III
Power Loss (W) 3.8
Rated Conditional Short-Circuit Current - Inc (kA) 6
Rated Current (A) 16
Rated Frequency (Hz) 50 - 60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 500
Rated Operational Voltage AC (V) 230 - 240
Rated Residual Current (mA) 30
Rated Short-Circuit Capacity - Icn (kA) 6
Standards and Approvals IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1
Terminal Type Screw Terminals
Weight (g) 180
Wire Stripping Length (mm) Top: 11mm Bottom: 12.5mm
