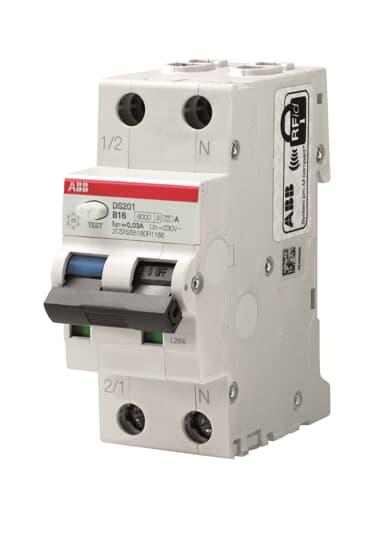

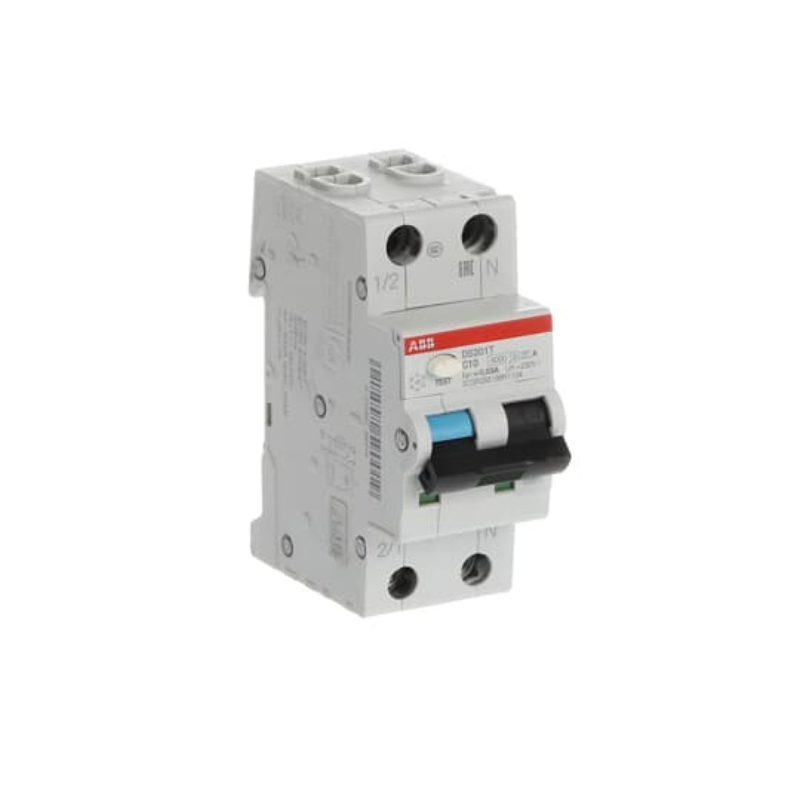

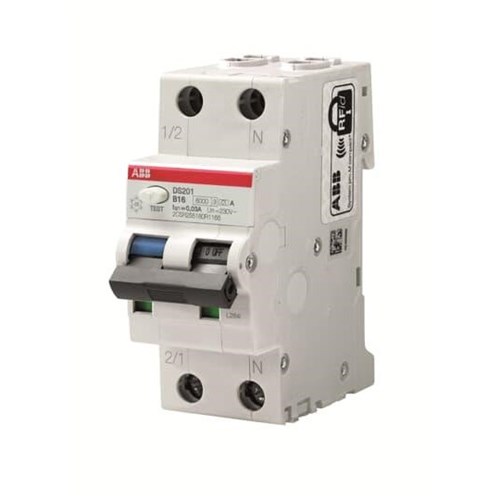

<p>This RCBO (Residual Current Circuit Breaker with Overcurrent Protection) is a robust solution for Australian industrial and commercial applications, providing reliable circuit protection while maintaining user-friendly features. Designed to ensure safety and efficiency, it offers a comprehensive set of specifications tailored to meet rigorous standards.</p><p>With a rated current of 10 A, this RCBO ensures optimal performance within its electrical parameters. It operates at a rated voltage of 240 V and maintains an impressive rated insulation voltage of 500 V, ensuring adequate protection against potential electrical hazards. The device&#39;s ability to withstand impulse voltages up to 4 kV further enhances its reliability in fluctuating power conditions.</p><p>The RCBO&#39;s breaking capacity is notably strong at 10 kA, with a short circuit capacity of 6 kA, making it suitable for environments where high fault currents may occur. Its degree of protection is classified as IP20/IP40, offering resistance against solid objects and limited water ingress under specified conditions.</p><p>Installation is straightforward with the screw clamp terminal type requiring a tightening torque of 2.8 N-m. The compact dimensions—35 mm width, 85 mm height, and 69 mm depth—allow for efficient space utilization on DIN rails during mounting.</p><p>In compliance with IEC/EN standards (61009-1 and 61009-2-1), this RCBO guarantees adherence to international safety and operational benchmarks. It supports both single-core (0.75-25 sq-mm) and multi-wired cables (0.75-16 sq-mm), accommodating various wiring configurations in industrial setups.</p><p>The device possesses an electrical durability rating capable of enduring up to 10,000 cycles—a testament to its longevity in demanding environments. Its curve type C characteristic ensures effective tripping under overload conditions typical in resistive or low inductive loads.</p><p>Rated for ambient temperatures ranging from -25&#176;C to +55&#176;C, this RCBO can operate reliably across diverse climatic conditions found throughout Australia’s varied landscapes. The residual current detection capability at Type A ensures sensitive fault detection even when dealing with pulsating DC components.</p><p>Safety features include contact position indication via red for ON and green for OFF states alongside a blue flag on the toggle indicating fault detection status—enhancing visibility during operation checks or troubleshooting tasks.</p><p>Housing comes in RAL 7035 grey offering aesthetic consistency with standard electrical panels while the arbitrary power supply connection provides flexibility during installation phases without compromising functionality or safety protocols.</p><p>Overall, this RCBO stands out as an efficient protective device combining advanced technical attributes with ease-of-use features essential for modern electrical installations across commercial sectors ensuring peace of mind through dependable performance metrics aligned perfectly within industry expectations.</p>
