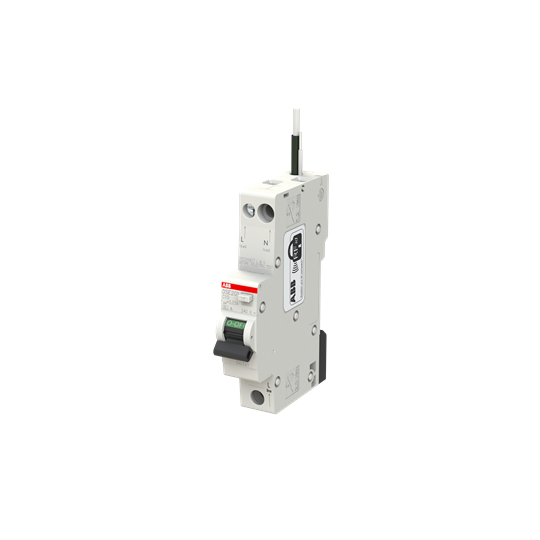

<p>When it comes to ensuring the safety and reliability of electrical installations, selecting the right Residual Current Circuit Breaker with Overcurrent Protection (RCBO) is crucial. This particular RCBO offers a comprehensive range of features that cater to various industrial and commercial applications, making it a solid choice for professionals seeking dependable performance.</p><p>Designed with a rated current of 10 A, this RCBO operates efficiently under standard conditions. It offers a rated voltage of 240 V and an insulation voltage of 500 V, providing robust protection against electrical faults. The device can withstand impulse voltages up to 4 kV, ensuring resilience in environments prone to transient overvoltages.</p><p>The RCBO&#39;s breaking capacity stands at 6 kA, which means it can effectively interrupt fault currents without compromising safety. With its dual degree of protection—IP20/IP40—it safeguards against dust ingress and accidental contact in diverse settings. The unit employs a screw clamp terminal type with tightening torques ranging from 1.2 N-m to 2.8 N-m, enabling secure connections.</p><p>With dimensions measuring 18 mm in width, 100 mm in height, and 69 mm in depth, this compact device fits seamlessly onto DIN rails for easy installation. Its weight is just 180 g, facilitating hassle-free handling during setup or maintenance.</p><p>Compliance with standards such as IEC 61009-1, IEC 61009-2-2, and AS/NZS 61009.1 underscores its adherence to rigorous quality benchmarks. It supports cable cross-sections from solid core (1-25 sq-mm) to multi-wired configurations (1-16 sq-mm), offering versatility for different wiring needs.</p><p>The RCBO&#39;s C curve type ensures optimal tripping characteristics suitable for general applications where moderate surge currents are expected upon startup or switch-on events. Rated at frequencies between 50/60 Hz and featuring an electrical durability of up to 10,000 cycles, this device promises longevity even under frequent use.</p><p>For ease of connection flexibility, the product accommodates busbar connections up to 10 sq-mm as well as rigid cables from 1-25 sq-mm or flexible cables from 1-16 sq-mm—a versatile solution catering to varied installation requirements.</p><p>Operating within ambient temperatures ranging from -25&#176;C to +55&#176;C allows deployment across diverse climatic conditions while maintaining reliable functionality throughout its service life span thanks largely due also thanks largely due also thanks largely due also thanks largely due also partly because partly because partly because partly because partly because partly because partly because it supports instantaneous operating characteristics coupled along alongside alongside alongside alongside alongside alongside instantaneous operating characteristic operating characteristic operating characteristic operating characteristic indicating indicating indicating showing showing showing showing Contact Position Indication: Red ON Green OFF</p><p>This RCBO is housed in RAL7035 grey color housing color housing color housing color housing color enhancing enhancing enhancing enhancing aesthetic appeal aesthetic appeal aesthetic appeal aesthetic appeal within any professional setup professional setup professional setup professional setting setting setting setting Manufacturer Part Number: [Product Code]</p>
