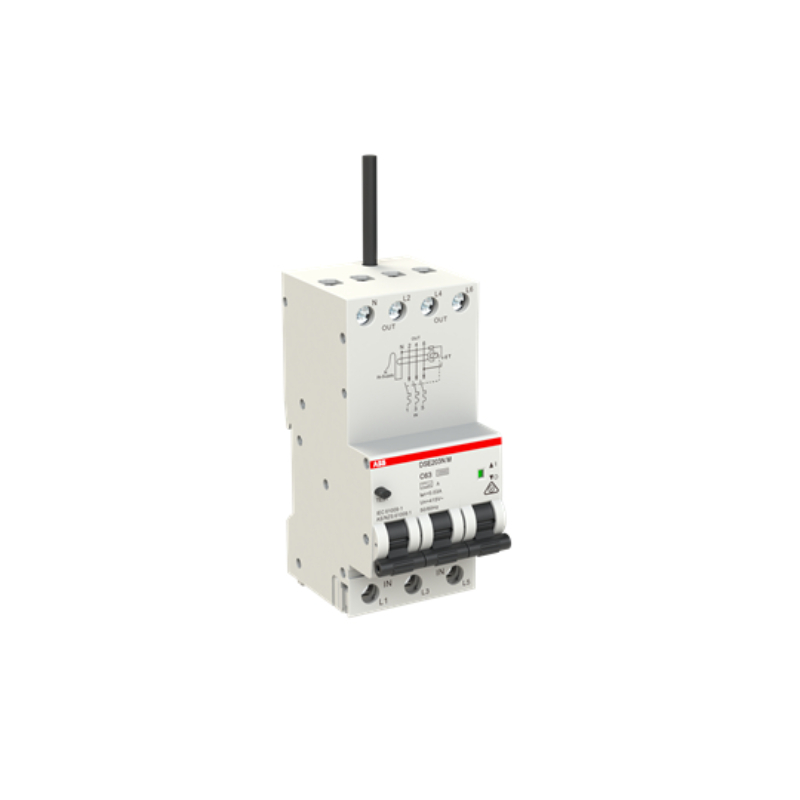

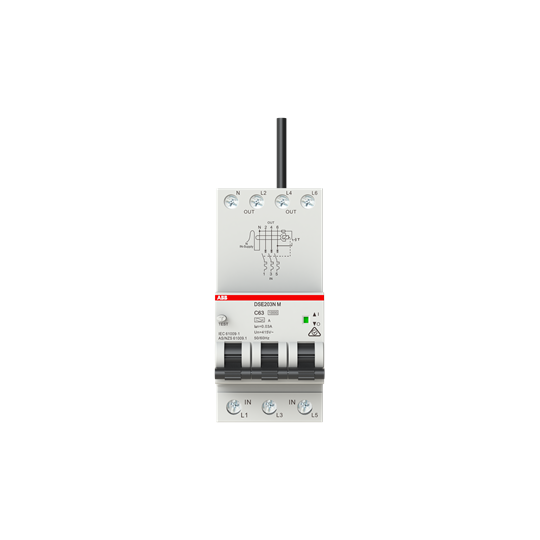

ABB RCBO, 10kA 3P+N 50A C-CURVE 30mA DSE203NMC50A30

Product Code: DSE203NMC50A30

Technical Specifications

Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 4
AC Voltage (V) 400/415
Breaking Capacity (kA) 10 @415 V AC
Breaking Capacity 415V AC - Icu (kA) 10
Current Rating (A) 50
Curve Type C Curve
Degree of Protection IP40 (Housing), IP20 (Terminals)
Dimensions (mm) 53.4Wx117.5Hx71.6D
Family DSE200
No. of Poles 3P+N
Operational Temperature Range (°C) -25 to +70
Poles 3P+N
Rated Current (A) 50
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage AC (V) 500
Rated Operational Voltage AC (V) 415
Rated Residual Current (mA) 30
Residual Current Type A
Series DSE200
Terminal Type Pillar terminals
Trip Curve C Curve
Type of Residual Current A
