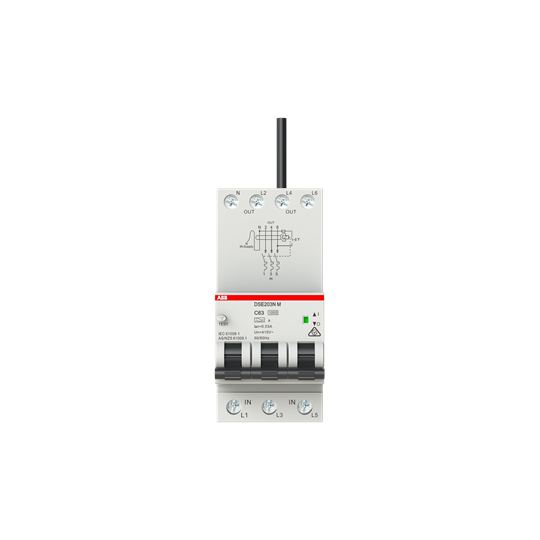

<p>When it comes to safeguarding your electrical installations, selecting the right Residual Current Circuit Breaker with Overcurrent protection (RCBO) is crucial. This particular RCBO model offers a blend of robust performance and compliance with international standards, making it suitable for various industrial and commercial applications.</p><p>Rated at 32 A, this RCBO is designed to handle substantial electrical loads while providing reliable protection against overcurrents and earth faults. Operating within a rated voltage range of 400/415 VAC, it ensures compatibility with most standard power systems in Australia. The device&#39;s rated impulse withstand voltage is 4 kV, offering a high level of resilience against transient overvoltages.</p><p>With its compact dimensions—53.4 mm in width, 117.5 mm in height, and 71.6 mm in depth—this RCBO can be easily integrated into existing setups without demanding excessive space. Weighing just 0.549 kg, it’s lightweight yet durable enough to withstand the rigors of industrial environments.</p><p>The RCBO adheres to important standards such as IEC 61009-1, IEC 61009-2-2, and AS/NZS 61009-1, ensuring compliance with both international and local safety requirements. It boasts an IP20 degree of protection which provides basic protection against solid objects larger than 12mm but should be installed in enclosures that provide higher degrees of ingress protection based on environmental conditions.</p><p>This device features a C curve type that caters well to inductive loads like motors or transformers by allowing short duration surges without tripping unnecessarily. Its residual current type A capability means it&#39;s sensitive enough to detect both AC and pulsating DC components from circuits.</p><p>Engineered for durability with an electrical endurance of up to 10,000 cycles and a short circuit capacity of 10 kA, this RCBO promises long-term reliability under regular operation conditions typical within industrial settings.</p><p>For installation flexibility, the connecting capacity accommodates busbars up to 10 sq-mm along with rigid cables ranging from 1-25 sq-mm or flexible ones from 1-16 sq-mm. Additionally featuring an overvoltage category III rating makes it fit for use in fixed installations like distribution boards where higher transient voltages may occur due to lightning strikes or switching operations upstream.</p><p>The ambient temperature operating range spans from -5&#176;C up to +55&#176;C catering well across diverse Australian climates whether indoors or outdoors (with appropriate housing). Furthermore its instantaneous operating characteristic ensures rapid disconnection during fault conditions minimizing potential hazards effectively safeguarding personnel &amp; equipment alike.</p><p>Overall this RCBO combines efficiency &amp; reliability backed by stringent testing conforming all necessary regulatory approvals offering peace-of-mind knowing your infrastructure remains protected under varying operational demands encountered daily throughout industry sectors nationwide!</p>
