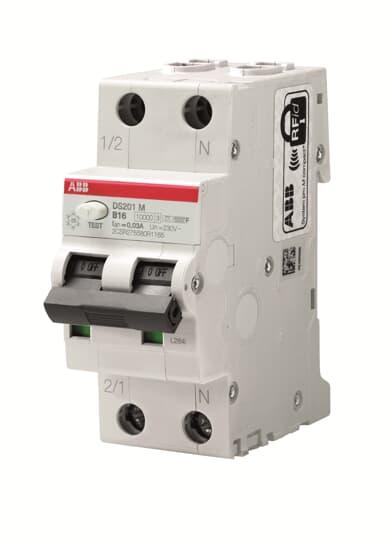

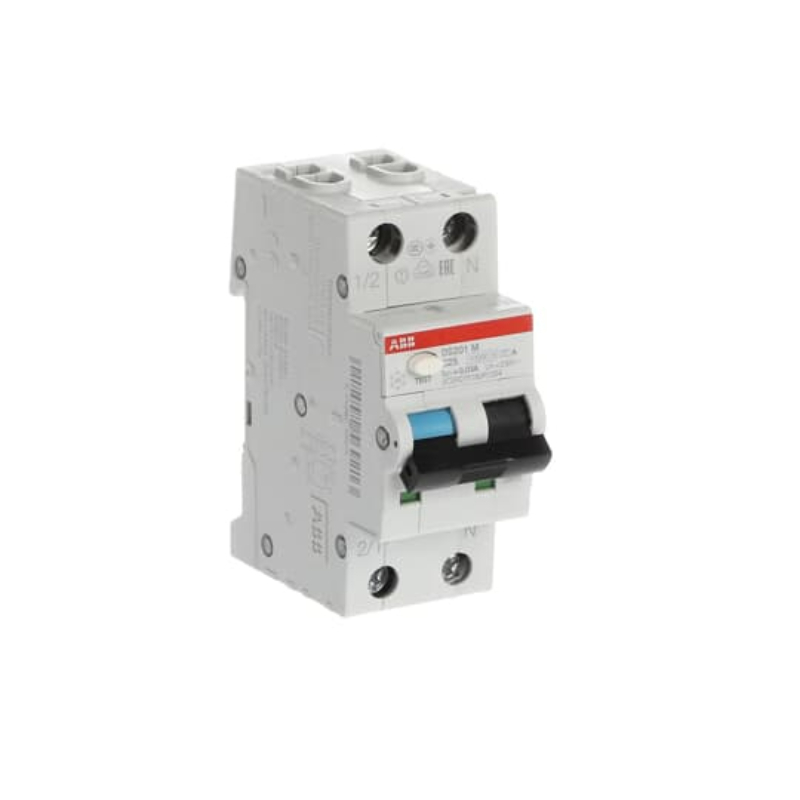

ABB DS201MC20F30 RCBO 10kA 1P+N 20A C CURVE TYPE F 30mA

Product Code: DS201MC20F30

The ABB RCBO is a combined MCB/RCD that offers protection against short circuit, thermal overload, and earth leakage. It has a 10kA breaking capacity at 230VAC and is designed for commercial and industrial use. The RCBO has a single pole plus neutral configuration (1P+N) with a current rating of 20A. It features a C curve trip characteristic and operates at a sensitivity of 30mA. The device is two modules wide and belongs to the Type F category.

Technical Specifications

Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 4
AC Voltage (V) 230/240
Application Commercial and Industrial
Breaking Capacity (kA) 15 @230 V AC
Breaking Capacity 230V AC - Icu (kA) 15
Current Rating (A) 20
Curve Type C Curve
Degree of Protection IP40 (Housing), IP20 (Terminals)
Family DS201MC
Housing Material Insulation Group I - II, RAL 7035
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 15
Mounting Type DIN Rail
No. of Poles 1P+N
Poles 1P+N
Pollution Degree 2
Power Loss (W) 3.6
Rated Conditional Short-Circuit Current - Inc (kA) 15
Rated Current (A) 20
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage AC (V) 500
Rated Operational Voltage AC (V) 230/240
Rated Residual Current (mA) 30
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Voltage AC (V) 230
Residual Current Type F
Series DS201MC
Test Voltage (kV) 0.17-0.264
Trip Curve C Curve
Type of Residual Current F
