Product Code: DS201MC16A30

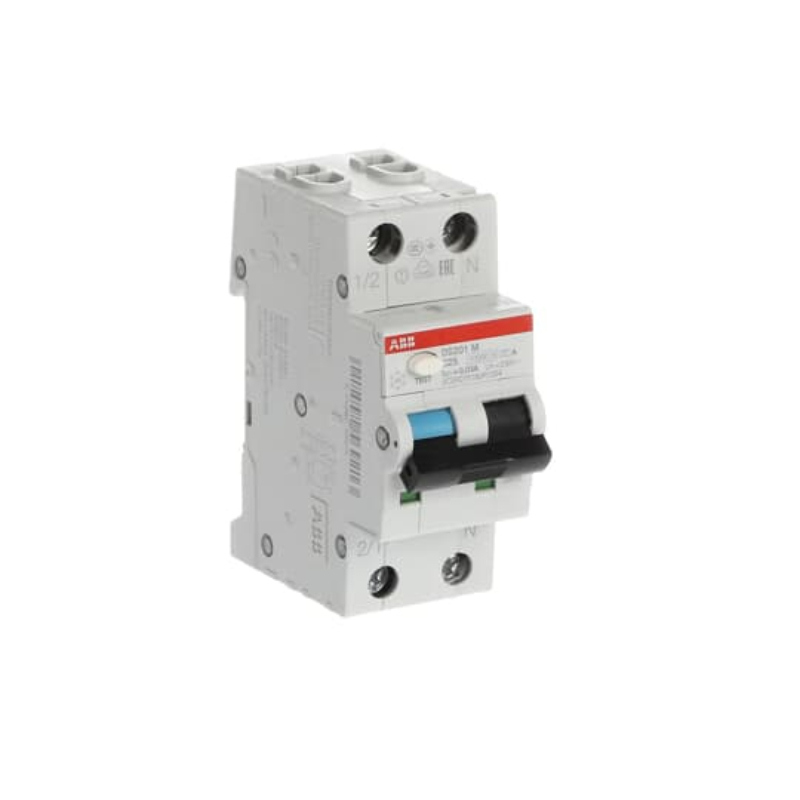

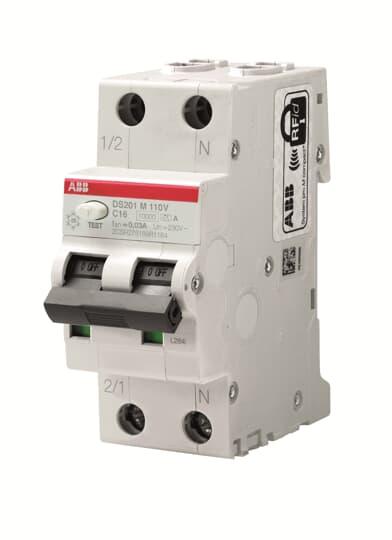

The ABB RCBO is a combined MCB/RCD that offers protection against short circuit, thermal overload, and earth leakage. It has a breaking capacity of 10kA at 230VAC and is designed for commercial and industrial use. This RCBO is 1P+N (single pole + neutral) with a current rating of 16A. It features a C curve and operates at a sensitivity of 30mA. The RCBO is two modules wide, making it compact and space-efficient. Trust ABB for reliable and efficient electrical protection in your commercial or industrial applications.

Brand	ABB
Impulse Withstand Voltage (kV/1.2µS)	4
AC Voltage (V)	230/240
Application	Commercial and Industrial
Breaking Capacity (kA)	15 @230 V AC
Breaking Capacity 230V AC - Icu (kA)	15
Current Rating (A)	16
Curve Type	C Curve
Degree of Protection	IP40 (Housing), IP20 (Terminals)
Family	DS201M
Housing Material	Insulation Group I - II, RAL 7035
Icn-Rated Short Circuit Capacity (kA)	10
Inc-Rated Conditional Short Circuit Capacity (kA)	15
Mounting Type	DIN Rail
No. of Poles	1P+N
Poles	1P+N
Pollution Degree	2
Power Loss (W)	3.3
Rated Conditional Short-Circuit Current - Inc (kA)	15
Rated Current (A)	16
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage AC (V)	500
Rated Operational Voltage AC (V)	230/240
Rated Residual Current (mA)	30
Rated Short-Circuit Capacity - Icn (kA)	10
Rated Voltage AC (V)	230
Residual Current Type	A
Series	DS201M
Test Voltage (kV)	0.17-0.264
Trip Curve	C Curve
Type of Residual Current	A

DIN MCB

ABB DS201MC16A30 RCBO 10kA 1P+N 16A C CURVE TYPE A 30mA

Product Code: DS201MC16A30
