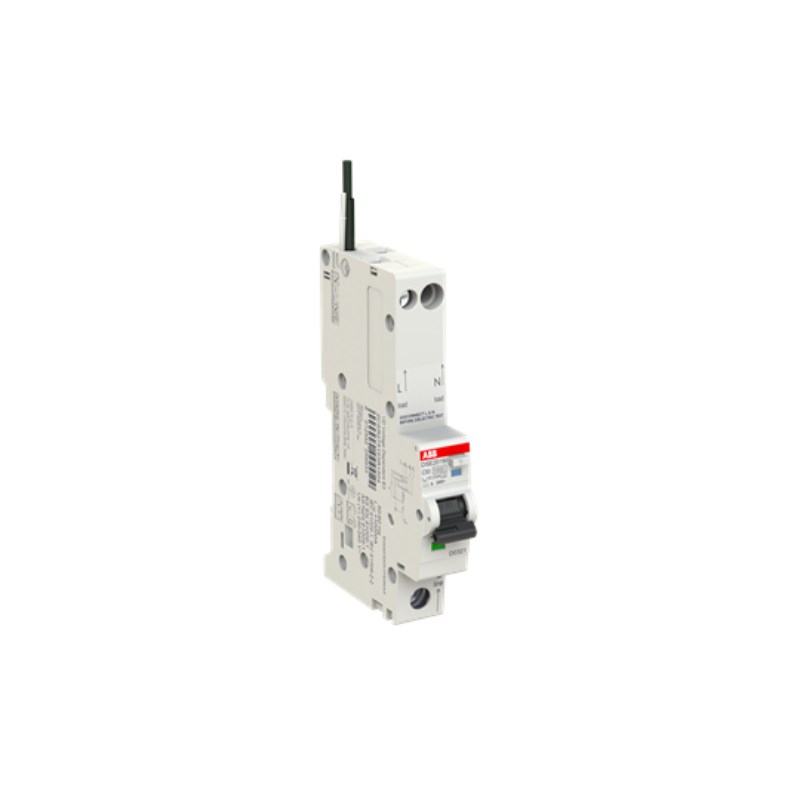

<p>The Long Body RCBO is a robust solution for those seeking reliability and efficiency in electrical systems. Designed to meet industrial and commercial needs, this device combines circuit breaker and residual current protection into one compact unit, offering an excellent choice for safeguarding your electrical installations.</p><p>Rated at 16 A with a rated voltage of 240 V, this RCBO efficiently manages power distribution while maintaining safety standards. Its rated impulse withstand voltage is set at 4 kV, ensuring resilience against transient over-voltages. The product&#39;s insulation voltage stands at 500 V, providing adequate protection from potential faults.</p><p>This device features a breaking capacity of 15 kA, making it suitable for environments where high fault currents may occur. Additionally, the short circuit capacity is rated at 10 kA. With its IP20/IP40 degree of protection, it offers reliable performance in various environmental conditions.</p><p>Installation flexibility is enhanced by its screw clamp terminal type and DIN rail mounting capability. Measuring just 18 mm wide, 115 mm high, and 69 mm deep, this RCBO fits seamlessly into standard setups without requiring extensive space.</p><p>Engineered to endure up to 10,000 electrical cycles and operating within an ambient temperature range of -25 to 55 degrees Celsius, it promises long-term durability even under demanding conditions. The curve type C characteristic ensures effective tripping under overload conditions typical in mixed load applications.</p><p>The device supports a cable cross-section ranging from solid core wires (1-35 sq-mm) to multi-wired cables (1-25 sq-mm), accommodating diverse wiring needs. The wire stripping length requirements are straightforward: 11 mm on top connections and 12.5 mm on bottom connections.</p><p>Compliant with key international standards such as IEC 61009-1/2-2 and AS/NZS 61009.1 among others, this RCBO meets stringent quality benchmarks that assure users of its safety credentials.</p><p>For ease of use during installation or maintenance checks, the contact position indication provides clear status visibility—red indicates &#39;ON&#39; while green denotes &#39;OFF&#39;. This feature enhances operational transparency for technicians managing complex systems.</p><p>Designed in RAL 7035 grey housing color with bottom power supply connection points; the product also includes undelayed earthing switch functionality which adds another layer of security by minimizing delay during fault detection processes.</p><p>Overall suitable for overvoltage category III applications; it accommodates busbar connections up to ten square millimeters along with rigid (up to thirty-five square millimeters) or flexible cabling options (one-sixteen square millimeters). Rated short circuit current stands firmly at thirty milliampere adding further assurance against leakage currents potentially harmful if left unchecked—a crucial aspect when considering comprehensive system integrity measures across varied settings requiring dependable protective devices like these within their infrastructure frameworks!</p>
