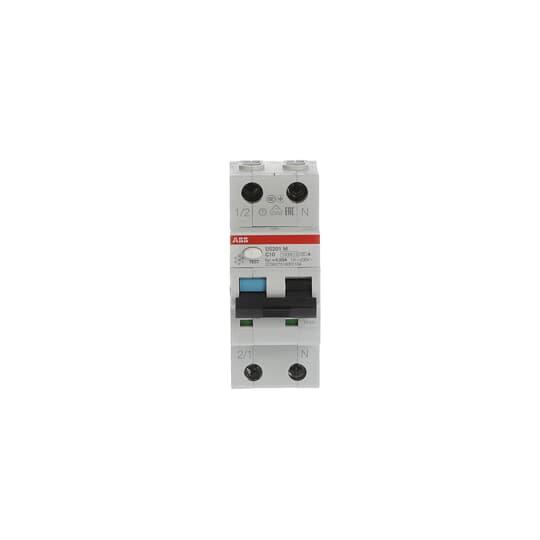

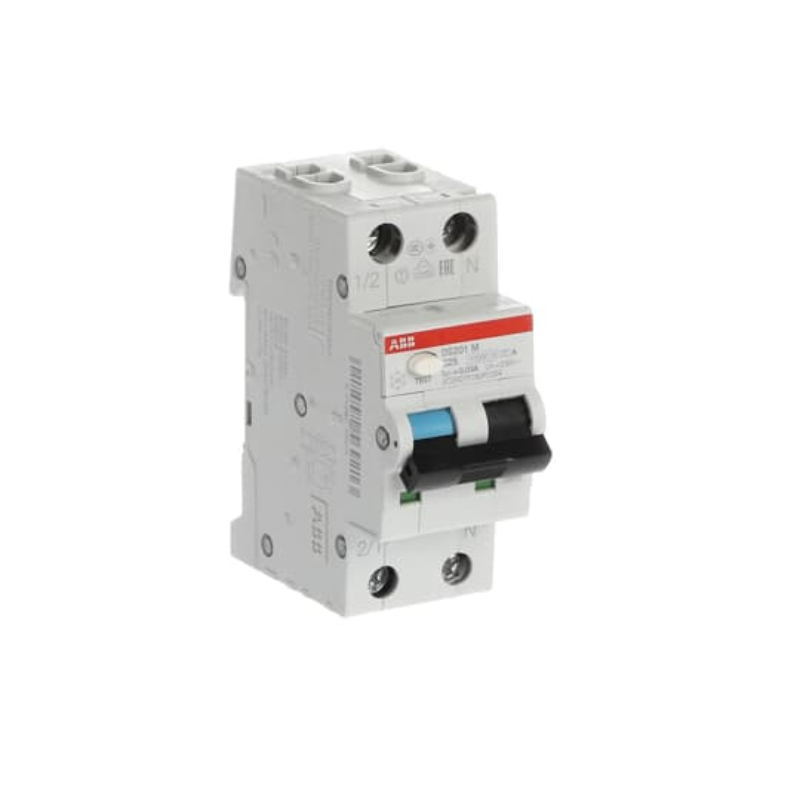

<p>This RCBO (Residual Current Circuit Breaker with Overcurrent Protection) is designed to meet the demanding requirements of industrial and commercial applications. It combines the functions of a residual current device and a circuit breaker, offering comprehensive protection against overloads, short circuits, and earth faults.</p><p>With a rated current of 10 A, this RCBO operates efficiently within a rated voltage of 240 V. The robust design ensures it can withstand impulses up to 4 kV and maintains insulation at 500 V. Its breaking capacity stands strong at 15 kA, making it suitable for environments where high fault currents may occur.</p><p>The unit&#39;s compact dimensions—35 mm in width, 85 mm in height, and 69 mm in depth—allow for easy integration into existing systems via DIN rail mounting. Weighing just 200 g, it offers flexibility without compromising on durability or performance.</p><p>Engineered with an IP20/IP40 degree of protection, this RCBO is adept at handling various environmental conditions. It operates reliably across a wide ambient temperature range from -25 to 55 degrees Celsius. The product meets IEC/EN standards (61009-1 and 61009-2-1), ensuring compliance with international safety regulations.</p><p>The terminal type features screw clamps that support tightening torque up to 2.8 N-m. This allows secure connections for cable cross-sections ranging from solid core (0.75-25 sq-mm) to multi-wired configurations (0.75-16 sq-mm). Additionally, the product supports flexible wiring options with ferrules.</p><p>Electrical durability is assured with an impressive lifespan of up to 10,000 cycles under normal operating conditions. The RCBO accommodates both busbar connections (10-10 sq-mm) and varied stranded or flexible wire types.</p><p>Designed for ease of use, it includes clear contact position indication: red signifies &#39;ON&#39; while green indicates &#39;OFF&#39;. Fault detection is simplified by a blue flag on the toggle switch for immediate visual identification during maintenance checks.</p><p>Operating characteristics are instantaneous with an undelayed earthing switch type ensuring rapid response times when needed most. Rated short circuit current sensitivity stands at a precise threshold of 30 mA providing effective earth fault protection without unnecessary tripping under minor disturbances.</p><p>Housed in RAL 7035 grey casing reflecting its professional-grade quality; overvoltage category III classification further emphasizes its suitability across diverse electrical installations requiring rigorous safety standards adherence.</p><p>Overall this RCBO delivers reliable performance backed by technical excellence essential for safeguarding electrical systems within Australian commercial or industrial settings.</p>
