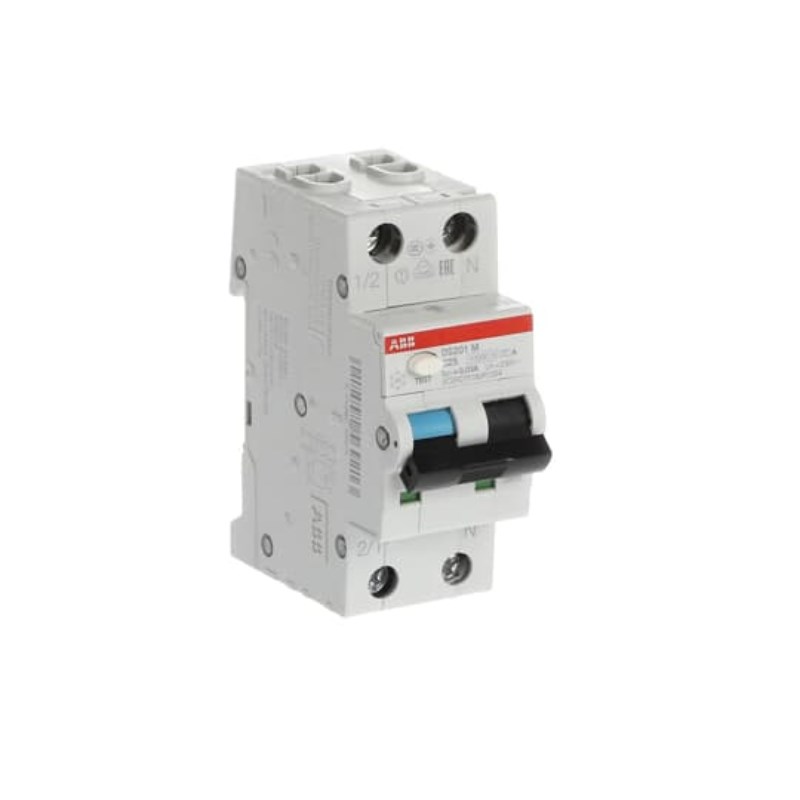

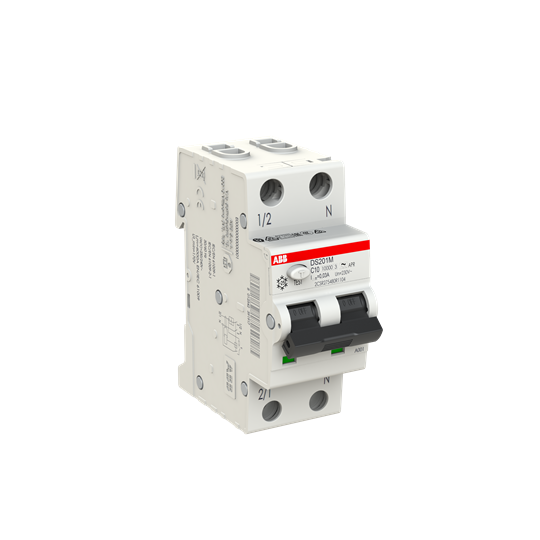

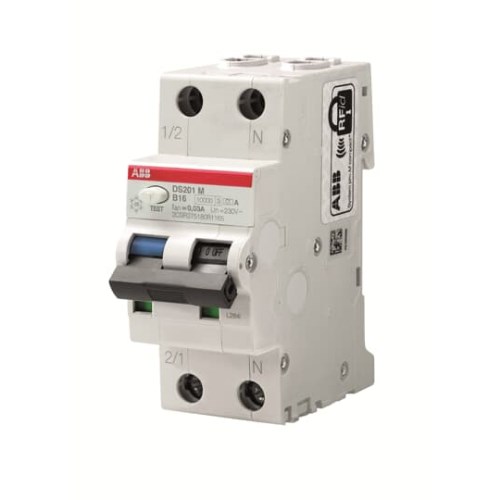

<p>This RCBO (Residual Current Circuit Breaker with Overcurrent Protection) is a robust and reliable choice for industrial and commercial electrical systems. Designed to ensure safety and efficiency, it combines the functions of an MCB (Miniature Circuit Breaker) and RCD (Residual Current Device), providing effective protection against overloads, short circuits, and earth leakage currents.</p><p>With a rated current of 10 A, this device operates efficiently under standard conditions. It boasts a high breaking capacity of 15 kA, ensuring it can handle significant fault conditions without compromising performance. The unit supports a rated voltage of 240 V and has an impressive rated impulse withstand voltage of 4 kV, making it suitable for environments where voltage spikes are common.</p><p>The RCBO&#39;s design includes two poles and adheres to IEC/EN 61009-1 and IEC/EN 61009-2-1 standards, guaranteeing compliance with international safety regulations. Its degree of protection ranges from IP20 to IP40 depending on installation specifics, offering flexibility in various settings.</p><p>For ease of installation, the RCBO features screw clamp terminals with a tightening torque specification of 2.8 N-m. It fits neatly onto DIN rails thanks to its compact dimensions: width at just 35 mm, height at 85 mm, and depth at 69 mm. Despite its compact size, it&#39;s built for durability with an electrical endurance rating of up to 10,000 cycles.</p><p>The product&#39;s operational range is wide; it functions optimally in ambient temperatures between -25&#176;C to +55&#176;C. Additionally, the curve type C characteristic ensures that it provides adequate tripping time under various load conditions—ideal for mixed load applications like lighting or motor circuits.</p><p>For connection versatility, the RCBO accommodates different cable cross sections: solid core wires from 0.75 to 25 sq-mm or multi-wired cables from 0.75 to16 sq-mm can be securely connected using flexible ferrules or stranded wire configurations.</p><p>From a practical standpoint, the housing is colored RAL7035 grey—a neutral tone that blends seamlessly into most control panels—and incorporates clear contact position indicators: red indicates ON while green signifies OFF status.</p><p>Safety features include Type A residual current detection for enhanced sensitivity towards AC currents mixed with pulsating DC components commonly found in modern appliances. An undelayed earthing switch type further enhances safety by preventing nuisance tripping due to transient faults.</p><p>In summary this RCBO offers comprehensive protection tailored specifically towards demanding industrial applications ensuring both peace-of-mind operation reliability across diverse settings Manufacturer Part Number</p>
