Product Code: YRM2.DIODE

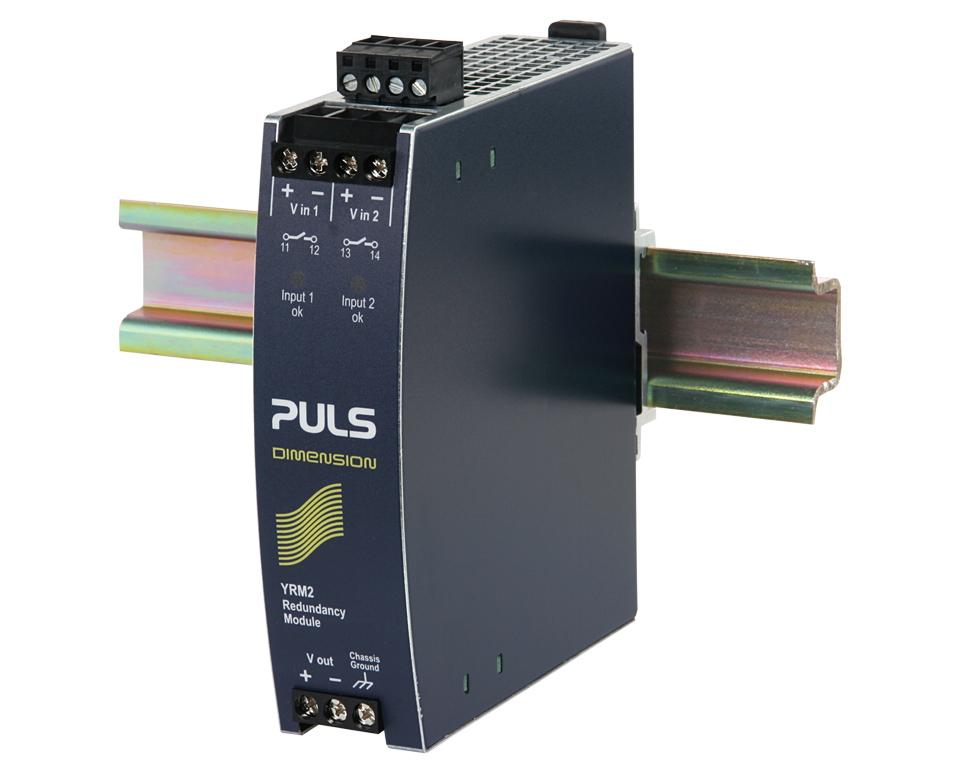

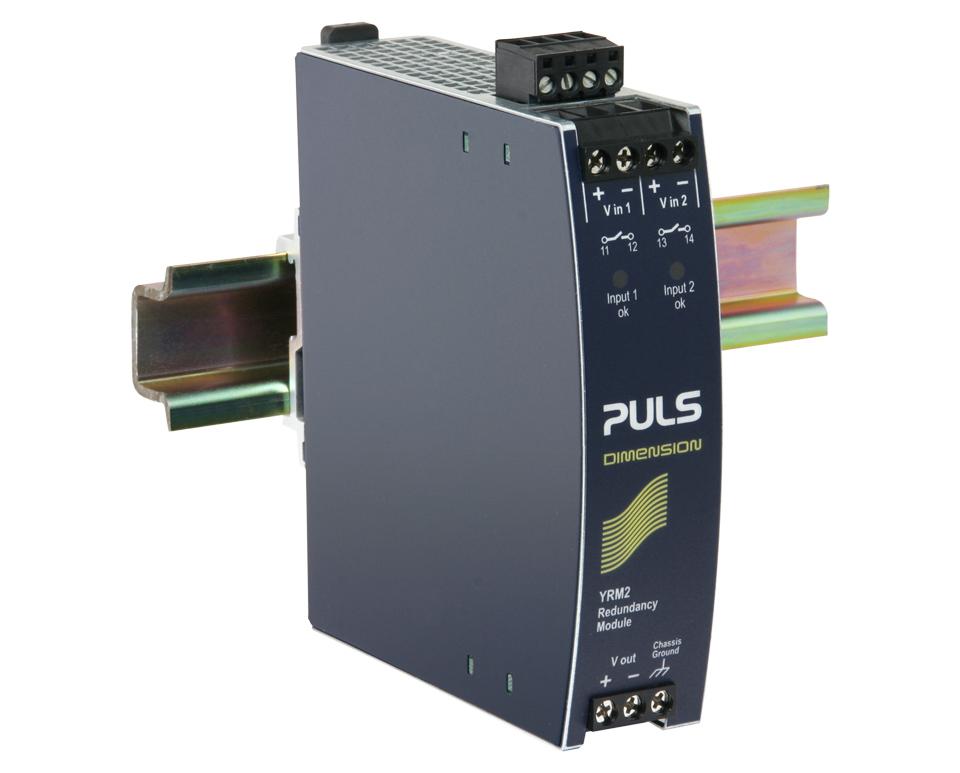

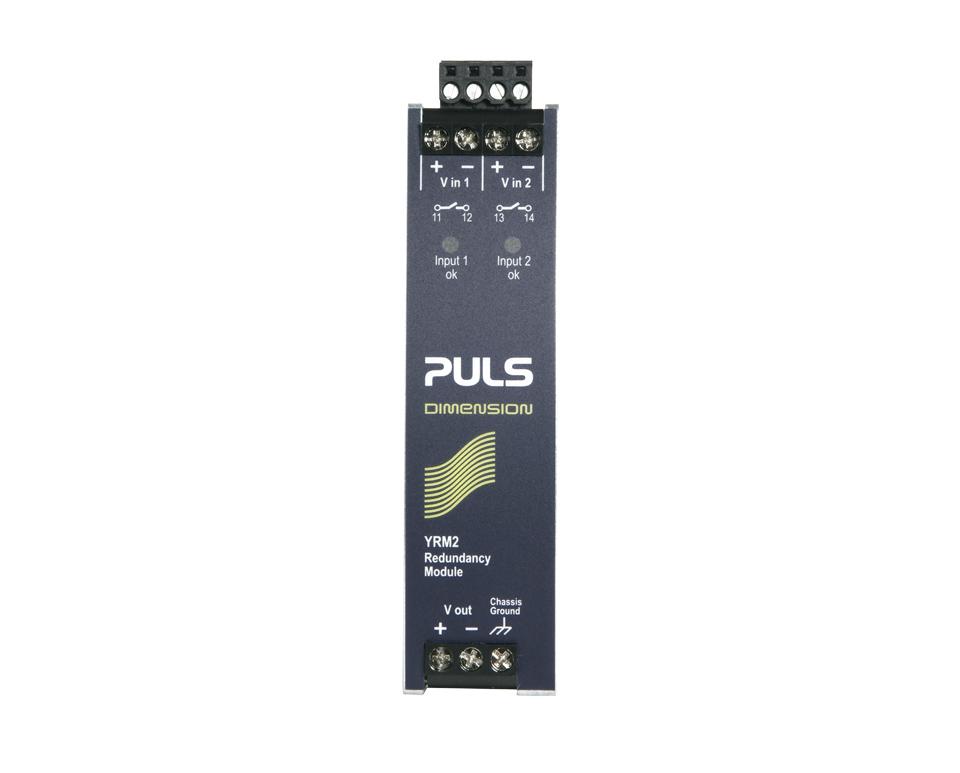

Cost-effective solution for building redundant systems. This product features dual input with a single output, alarm relay-contacts for each input path, and two diodes with a common cathode. It has a wide-range input of DC 24-48V +-25% (18-60Vdc) and can operate at full power between -40°C and +60°C. With a width of only 32mm, it is compact and housed in a rugged metal casing. The product also includes large screw terminals for easy wiring, with a distribution terminal for the negative pole included.

Brand	PULS
Conformal Coating	No
Connection Type	Screw terminals
Country of Origin	China / Czech Republic
Customs Tariff Number	85044083
Degree of Protection	IP20
Derating	0.5 W/°C
Derating Temperature (°C)	> +60
Dimensions (mm)	32W x 124H x 117D
E Classification	E-CS03
Efficiency	%
Family	DIMENSION
Input Voltage Range DC (V)	24, 48
Maximum Input Voltage DC (V)	48
Maximum Output Short-circuit Current (A)	25
Minimum Input Voltage DC (V)	24
Minimum Output Current (A)	20
Mounting Type	DIN Rail
No. of Inputs	2
Nominal Current Per Input (A)	10
Operational Temperature Range (°C)	-40 to 70
Output Voltage (V)	24
Power Loss (W)	9
Power Loss No Load (W)	1
Range	DIMENSION
Rated Current (A)	20
Series	Y series
Special Application	Hazardous location, Marine
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Use In Crosslinking	Yes
Voltage Drop (mV)	800
Warranty Period (Months)	36
Weight (g)	350
