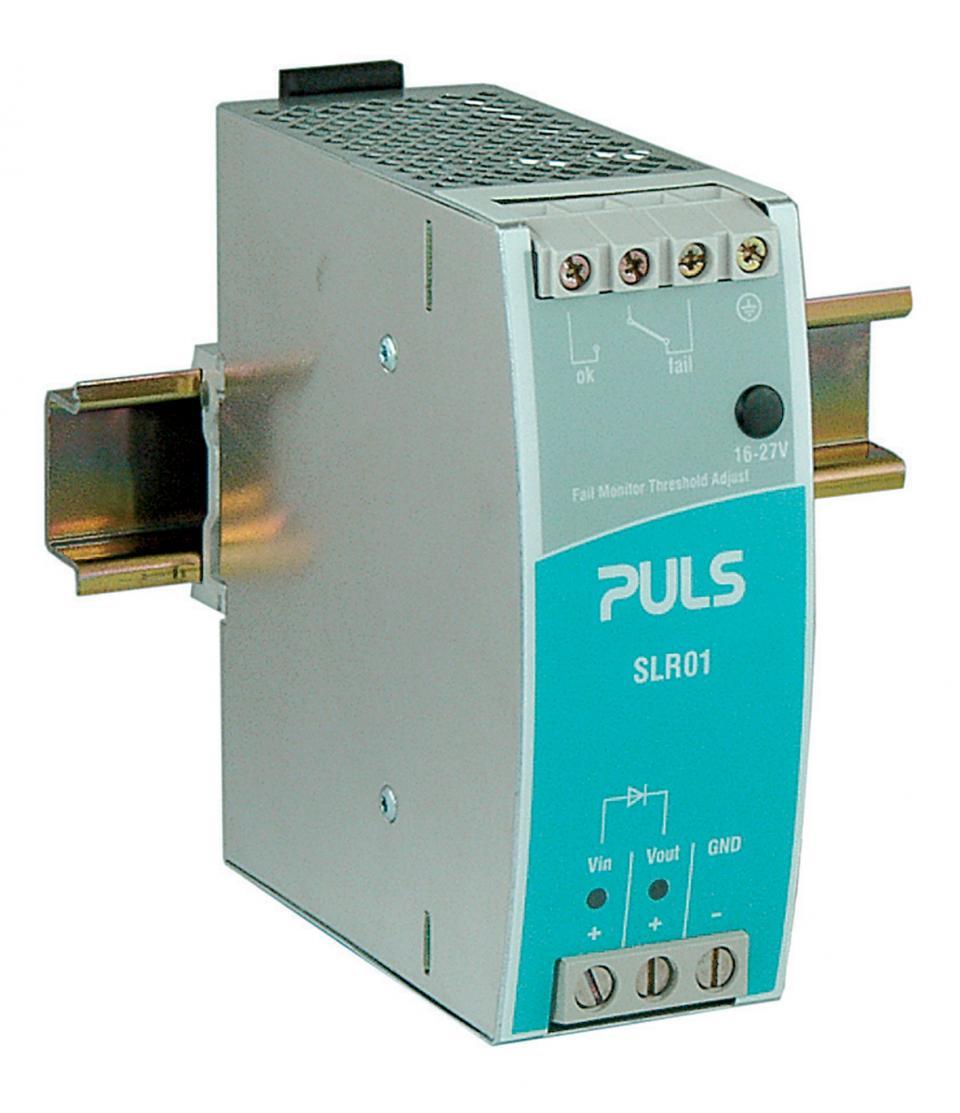

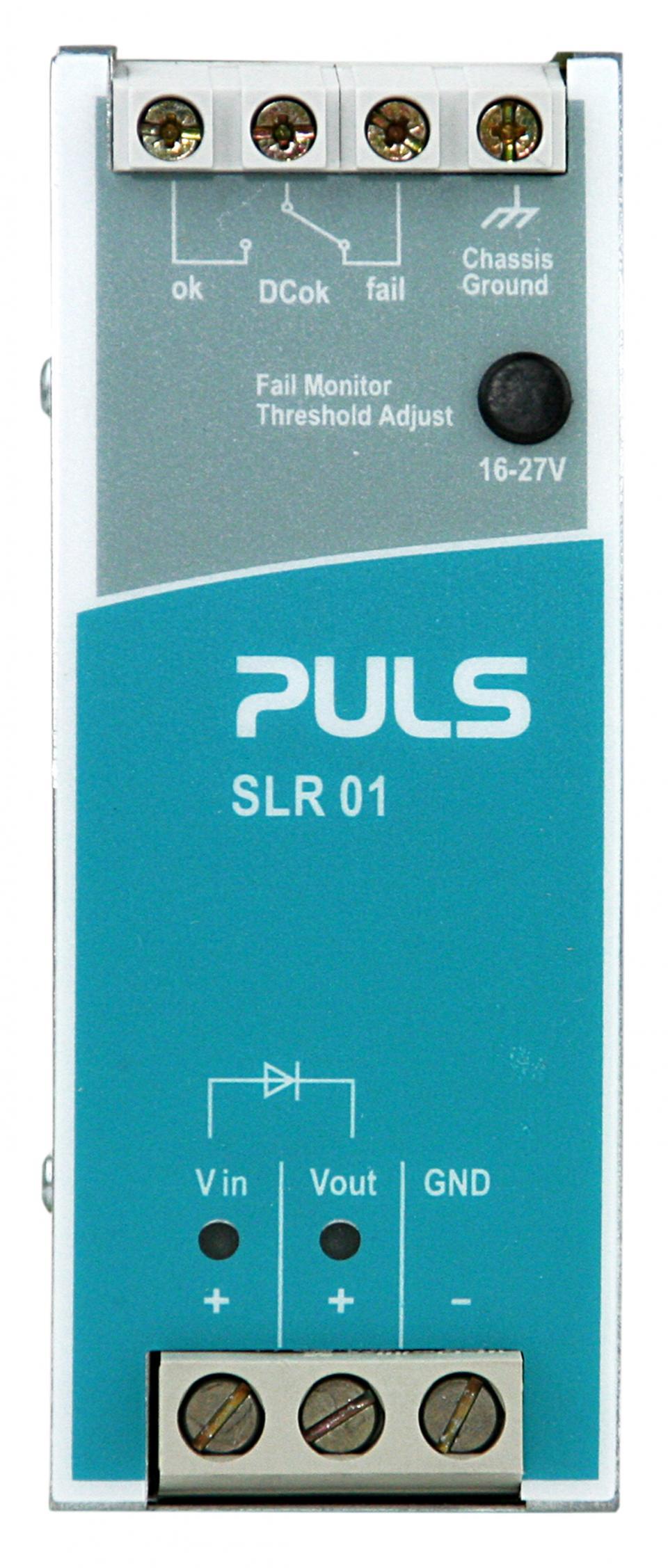

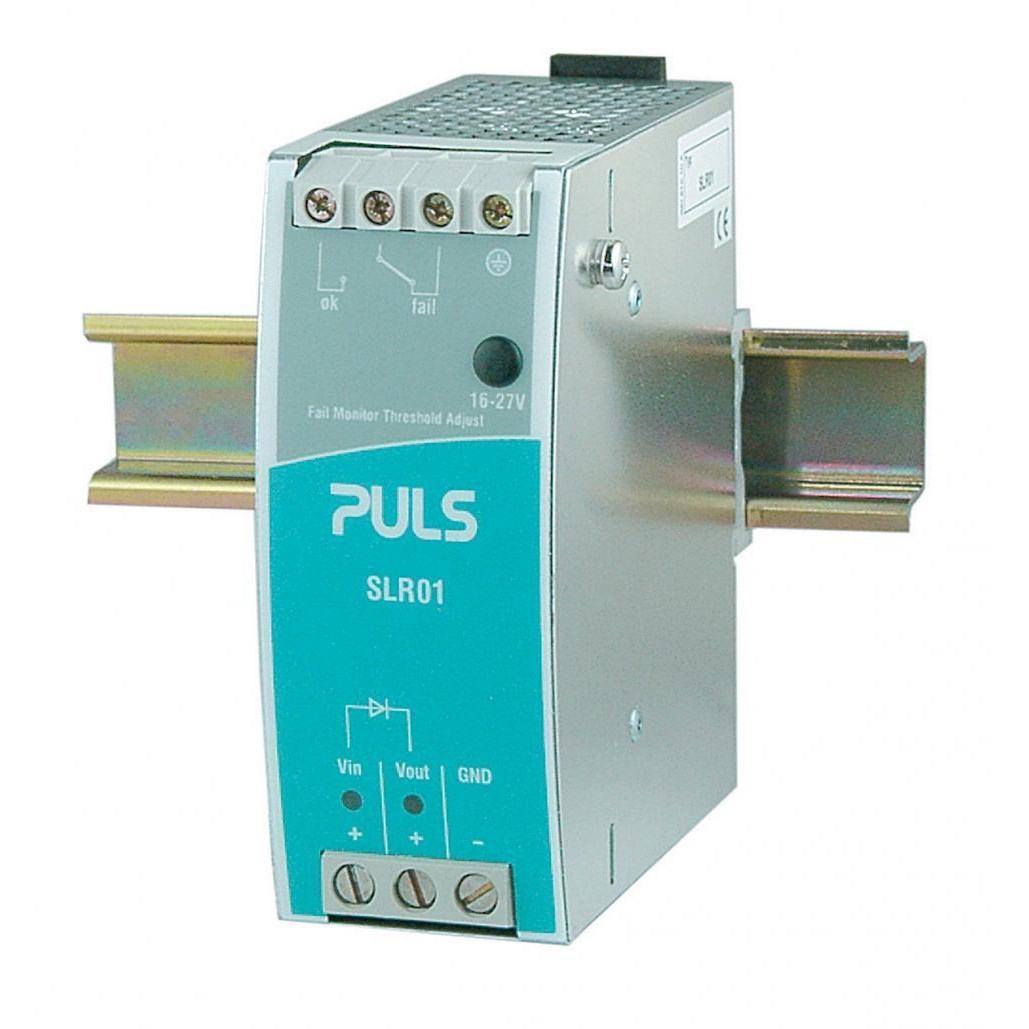

PULS DIODE REDUNDANCY MODULE 24V 40A SLR01

Product Code: SLR01

Redundancy module for building redundant systems. This module has a single input with a 40A ampacity. It features an alarm relay that monitors the inputVoltage. Even under full load, there is only a 0.5V Voltage drop between the input and output. It can provide full output current in temperatures ranging from -10 to +60°C.

Technical Specifications

Conformal Coating No
Country of Origin Czech Republic
E Classification E-CS03
Efficiency %
Input Voltage Range DC (V) 24
Maximum Input Voltage DC (V) 28
Minimum Input Voltage DC (V) 24
Minimum Output Current (A) 40
No. of Inputs 0
Output Voltage (V) 24
Use In Crosslinking Yes
Brand PULS
Connection Type Screw terminals
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 48W x 124H x 117D
Family SilverLine
Mounting Type DIN Rail
Range SilverLine
Rated Current (A) 40
Series SL series
Warranty Period (Months) 36
Weight (g) 650
