Product Code: YR40.242

The N+1 and 1+1 redundant systems are suitable for all DIMENSION power supplies, except the QT20 and QTD20 series. They have a dual input with a single output. At 20 A output current, there is only a 72 mVVoltage drop. The loss at 20 A is only 1.7 W, and at 40 A it is 5.9 W. The system has a peak load capability of 160% (65 A). It also has reverse input polarity protection and can operate at full power between -40°C and +60°C. The width of the system is only 36mm, and it comes in a rugged metal housing. Wiring is made easy with the distribution terminal for the negative pole included.

Conformal Coating	No
Country of Origin	China / Czech Republic
Derating	1 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS03
Efficiency	%
Input Voltage Range DC (V)	12, 24
Maximum Input Voltage DC (V)	28
Maximum Output Short-circuit Current (A)	26
Minimum Input Voltage DC (V)	12
Minimum Output Current (A)	40
No. of Inputs	2
Nominal Current Per Input (A)	20
Output Voltage (V)	12-28
Power Loss No Load (W)	0.2
Special Application	Hazardous location, Marine
Use In Crosslinking	Yes
Voltage Drop (mV)	72
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	36W x 124H x 127D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-40 to 70
Power Loss (W)	1.7
Range	DIMENSION
Rated Current (A)	40
Series	Y series
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	280

Power Supply Redundancy Modules

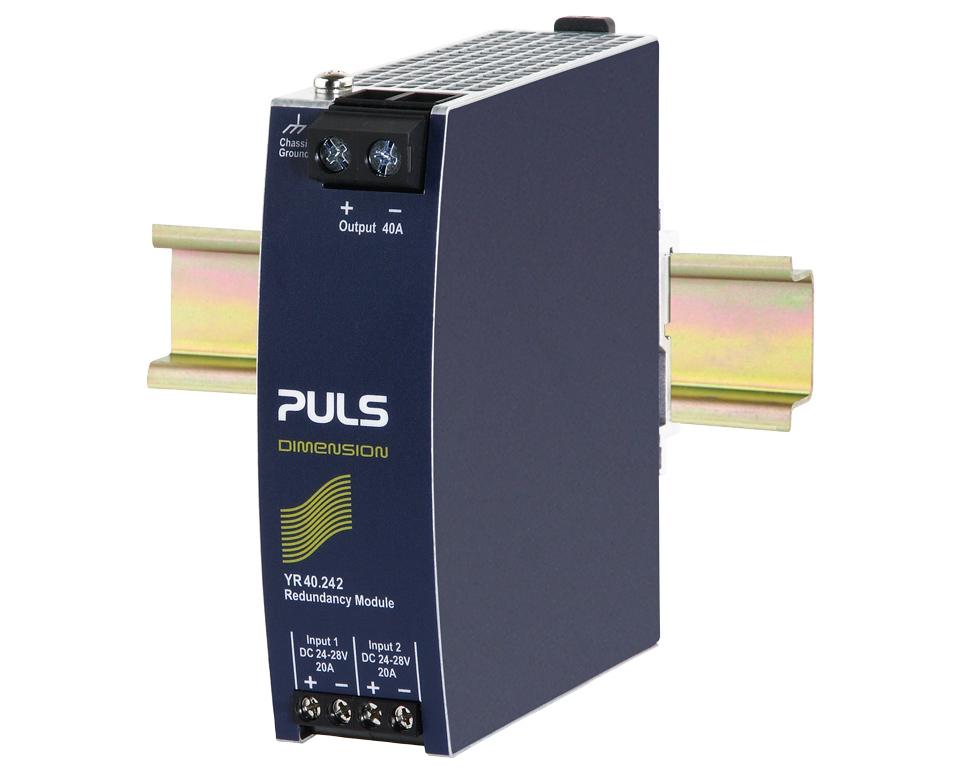

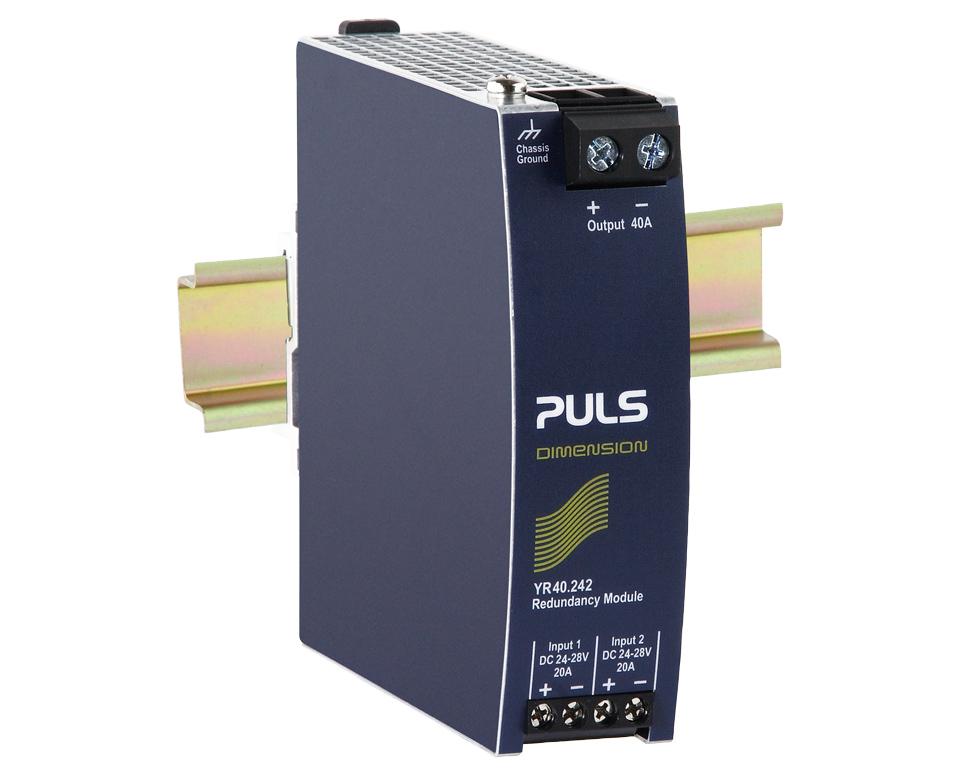

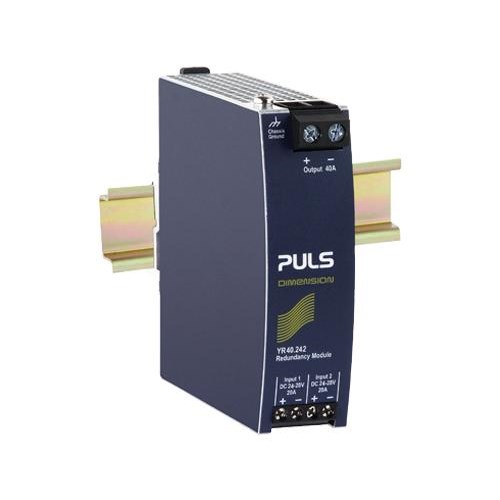

PULS MOSFET REDUNDANCY MODULE 12-28VDC 40A YR40.242

Product Code: YR40.242
