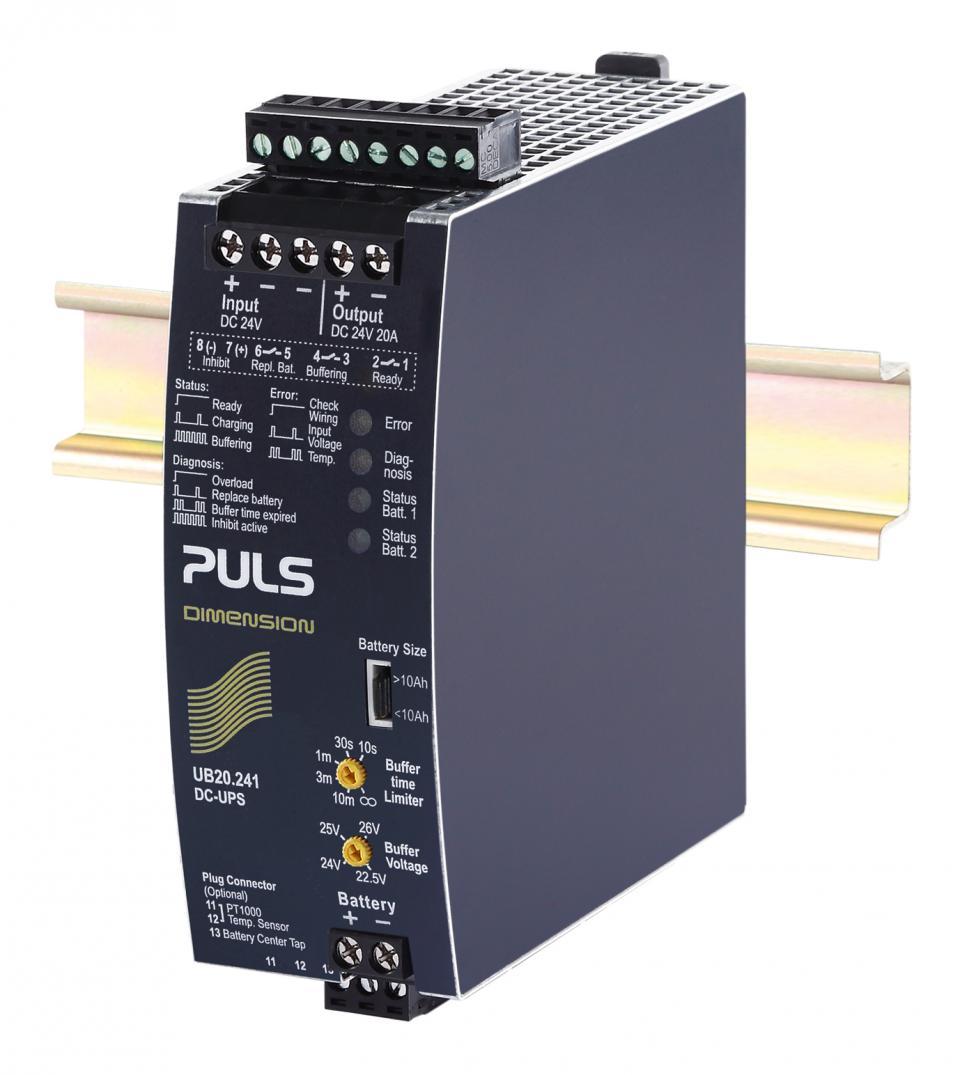

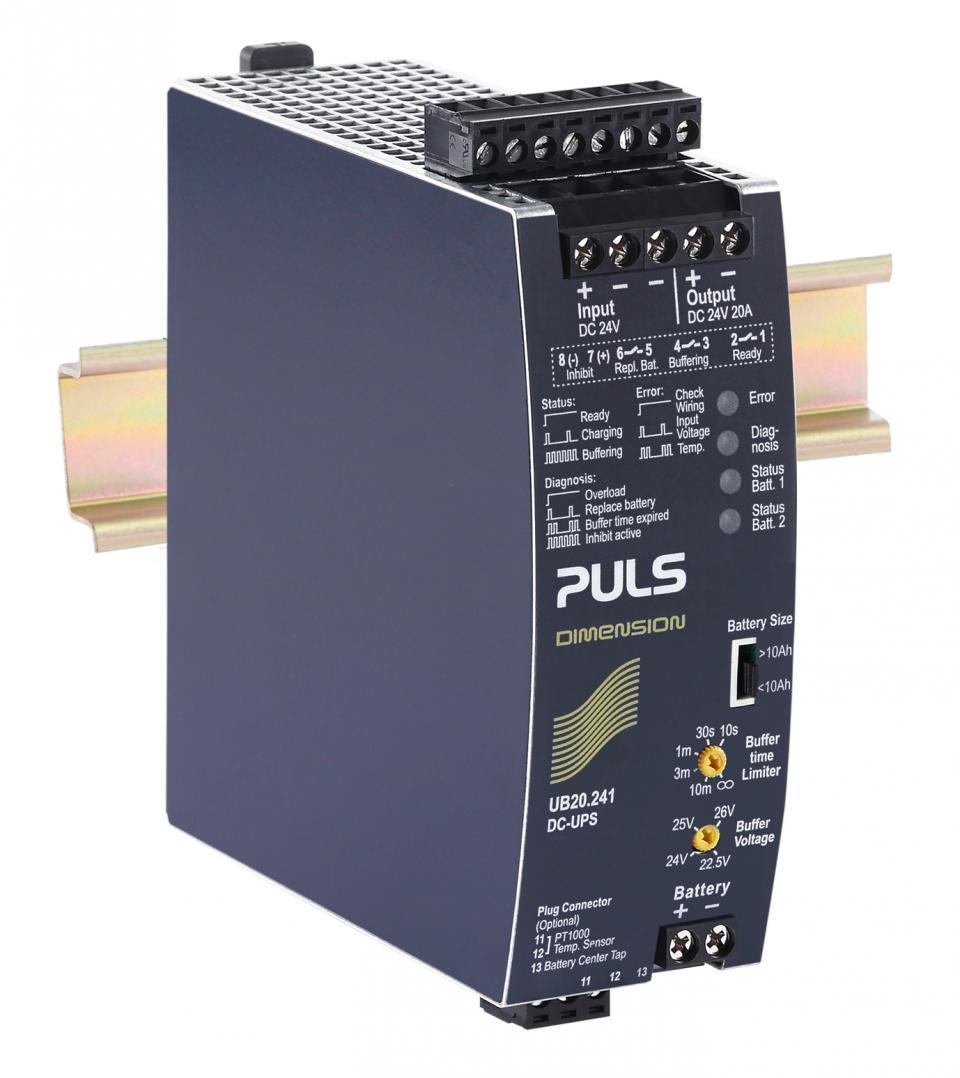

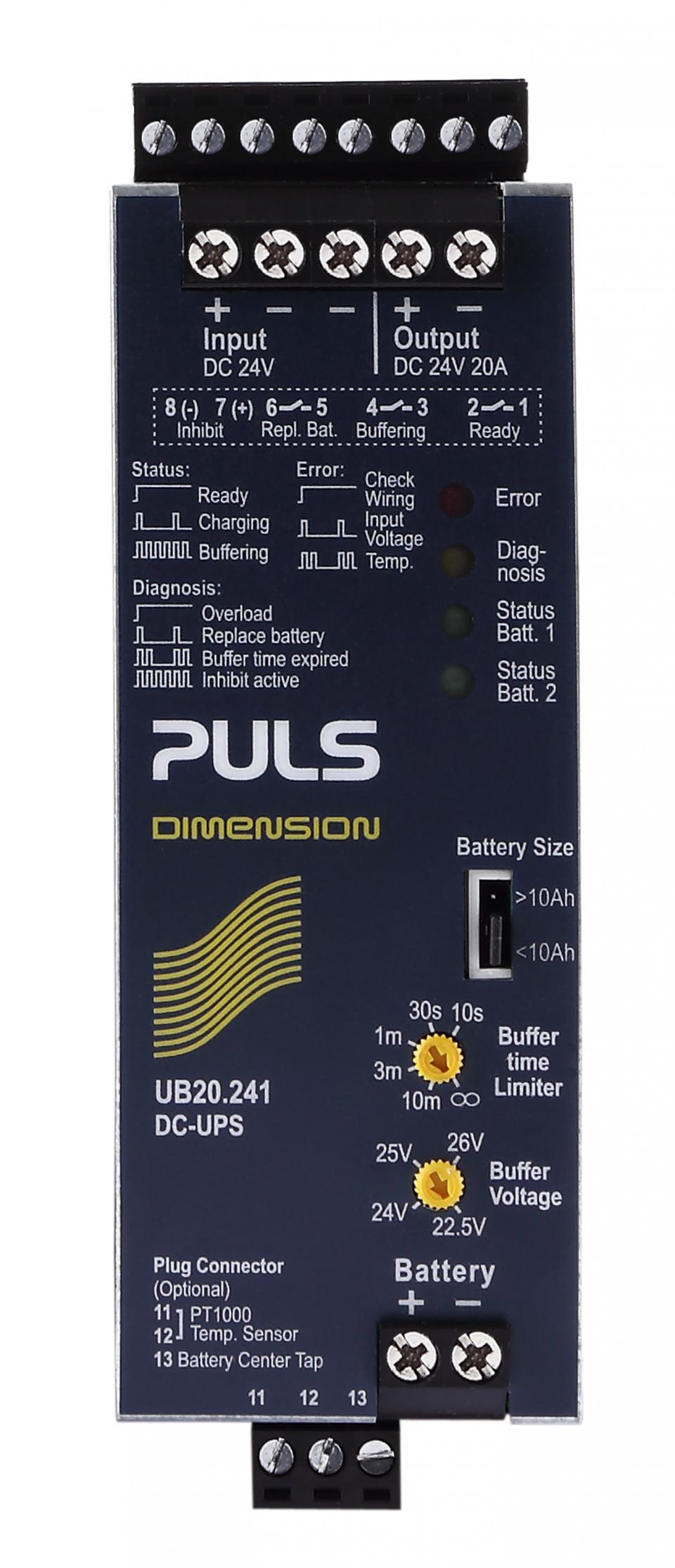

PULS DC-UPS CONTROL UNIT 24VDC 25A UB20.241

Product Code: UB20.241

The battery mode of this product ensures a consistent outputVoltage. You can also choose from different outputVoltages in battery mode. The 1-Battery-Concept charges and monitors each 12V battery separately, maximizing their lifespan. Precise battery charging is achieved through the use of a temperature sensor. Additionally, there is a battery size selector for both small and large batteries. The product offers 50% BonusPower, providing 30A of power for up to 4 seconds. It also has a high breaking capacity for branch protectors. Furthermore, it features smart battery diagnostics and monitoring functions.

Technical Specifications

Battery Size 24 V, 3.9 to 150 Ah
Conformal Coating No
Country of Origin China / Czech Republic
Derating 12 W/°C
Derating Temperature (°C) +60 to +70
E Classification E-CS04
Efficiency %
Input Voltage Range DC (V) 24
Internal Current Consumption (A) 2.3 / 4.3 (Including Charging Current)
Minimum Input Voltage DC (V) 24
Nominal Output Current 'a' (A) 25
Nominal Output Current 'b' (A) 20
Output Power (W) 480
Output Voltage (V) 24
Power Reserve Type BonusPower for typ. 4s
Power Reserves 50%
Special Application Hazardous location, Marine
Storage Element External lead acid battery
Temperature Tracking Of The End-of-charge Voltage Automatically with temperature sensor
Use In Crosslinking Yes
Brand PULS
Connection Type Screw terminals
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 46W x 124H x 127D
Family DIMENSION
Mounting Type DIN Rail
Operational Temperature Range (°C) -40 to 70
Power Loss (W) 4.6
Range DIMENSION
Rated Current (A) 20
Series U series
Standards and Approvals ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 700
