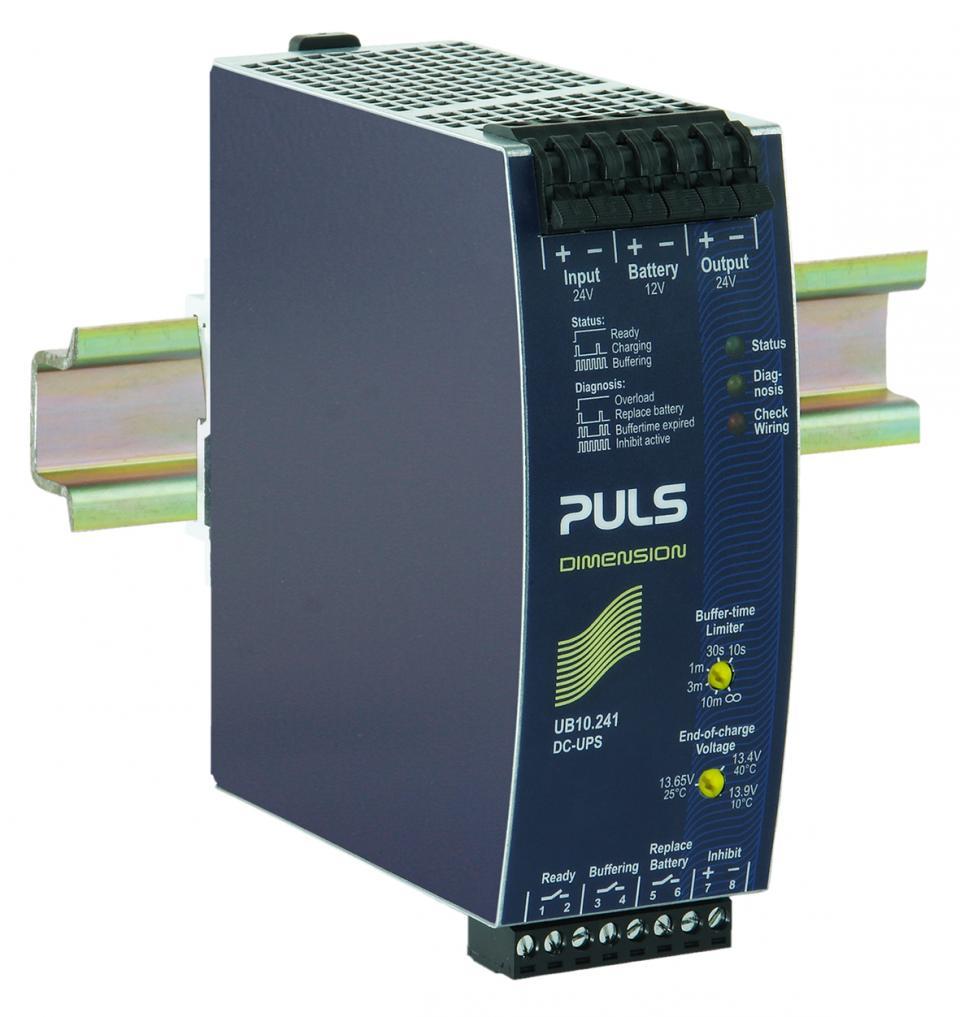

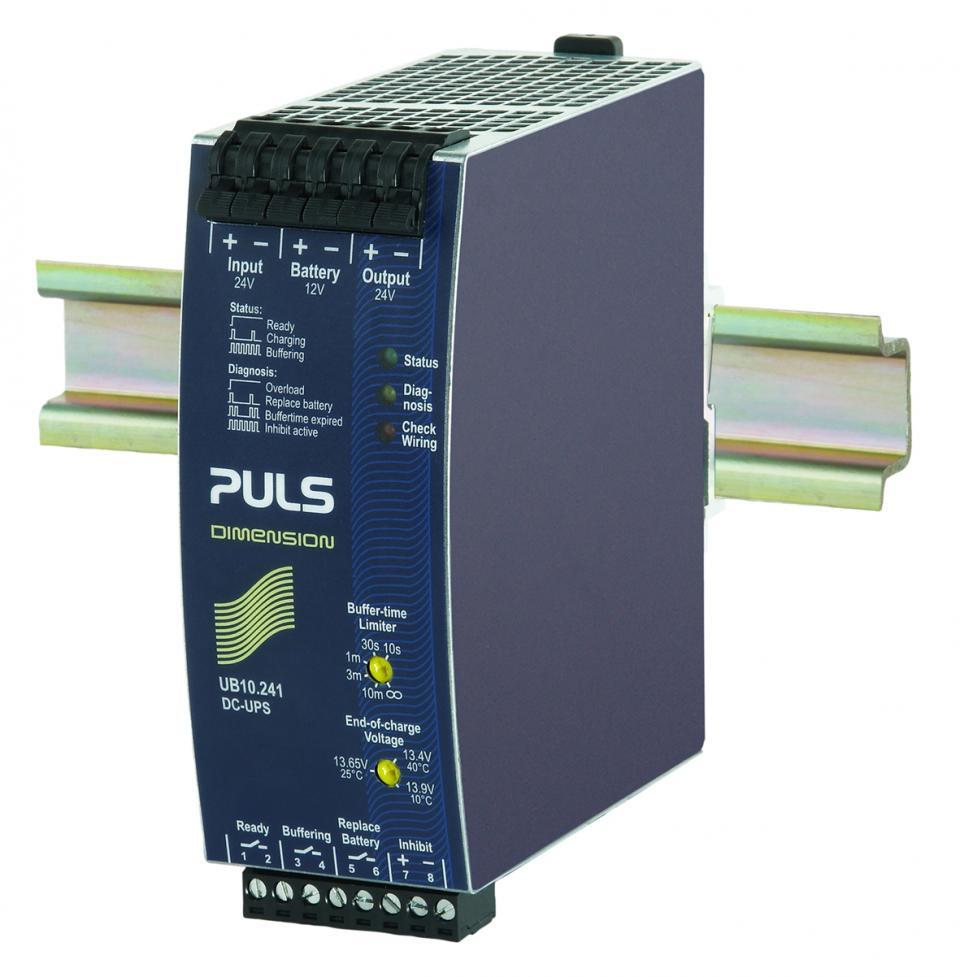

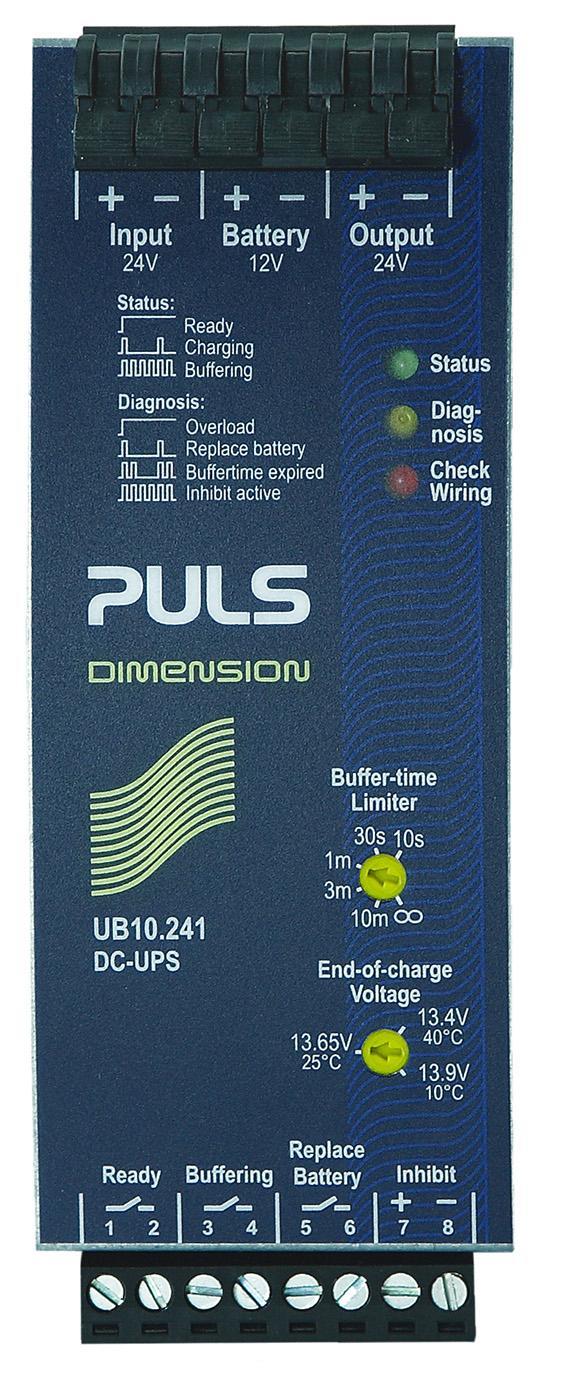

PULS DC-UPS CONTROL UNIT 24VDC 15A UB10.241
Zoom
Zoom
Zoom
Zoom
Zoom
PULS DC-UPS CONTROL UNIT 24VDC 15A UB10.241
Product Code: UB10.241
This product requires only one 12V battery to provide a stable 24V output. It has superior battery management for longer battery life and includes comprehensive diagnostic and monitoring functions. The product is electronically overload and short circuit protected, with 50% power reserves. It also has a selectable buffer time limiter and a replace battery signal.
Technical Specifications
Battery Size
12 V, 3.9 to 40 Ah
Conformal Coating
No
Country of Origin
China / Czech Republic
DC-OK Signal
Yes
Derating
0.25 W/°C
Derating Temperature (°C)
> +60
E Classification
E-CS04
Efficiency
%
Input Voltage Range DC (V)
24
Internal Current Consumption (A)
1.3 (Including Charging Current)
Minimum Input Voltage DC (V)
24
Nominal Output Current 'a' (A)
15
Nominal Output Current 'b' (A)
10
Output Voltage (V)
24
Special Application
Hazardous location, Marine
Storage Element
External lead acid battery
Temperature Tracking Of The End-of-charge Voltage
Manual-select
Use In Crosslinking
Yes
Brand
PULS
Connection Type
Spring clamps
Customs Tariff Number
85044083
Degree of Protection
IP20
Dimensions (mm)
49W x 124H x 117D
Family
DIMENSION
Mounting Type
DIN Rail
Operational Temperature Range (°C)
-25 to 70
Range
DIMENSION
Rated Current (A)
10
Series
U series
Standards and Approvals
ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, Class I Div. 2 Canada - UL, Class I Div. 2 USA - UL, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)
36
Weight (g)
530
Documents
Datasheet
IPD Product Catalogue V17
