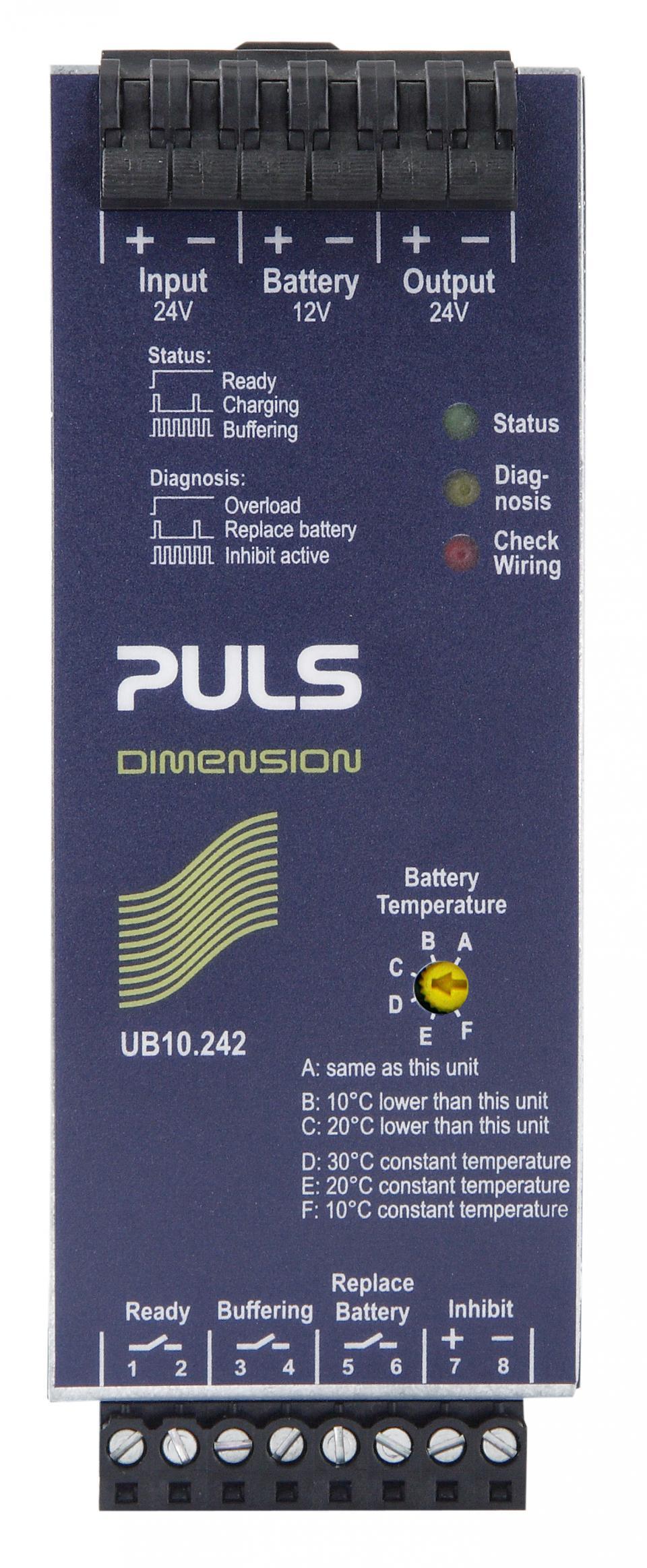

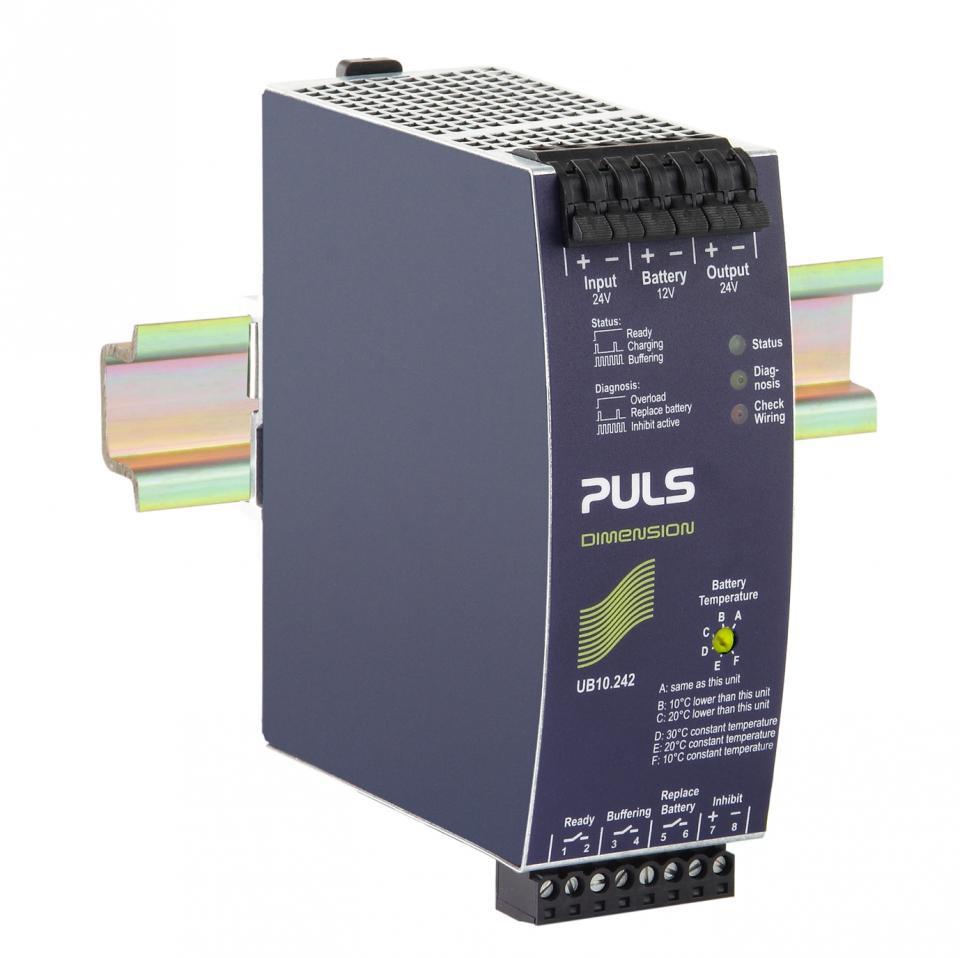

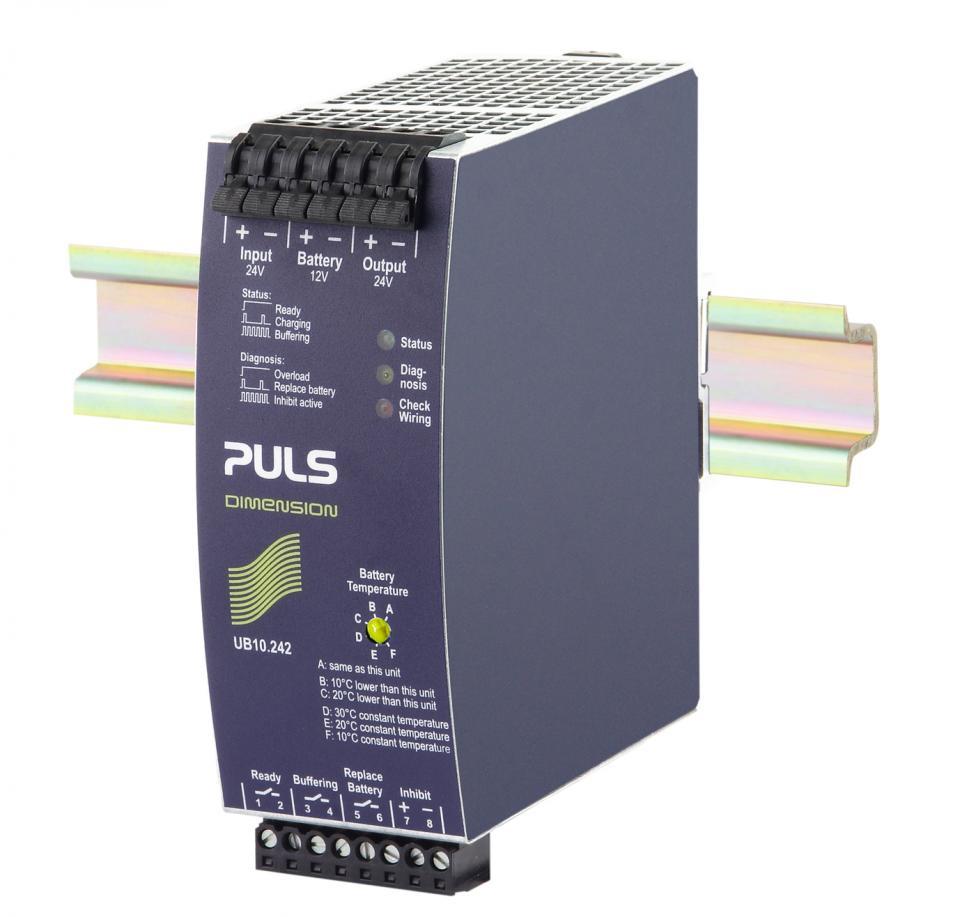

PULS DC-UPS CONTROL UNIT 24VDC 15A UB10.242

Product Code: UB10.242

This product requires a single 12V battery to provide a 24V output. It is compatible with batteries ranging from 17Ah to 130Ah. The battery charging process includes temperature tracking for optimal performance. In buffer mode, the product maintains a stable outputVoltage. It features superior battery management to extend the lifespan of the battery. Additionally, it offers comprehensive diagnostic and monitoring functions. A replace battery signal is included for convenience. The product is electronically overload and short circuit protected for safety. It also has 50% power reserves for added reliability.

Technical Specifications

Battery Size 12 V, 17 to 130 Ah
Conformal Coating No
Country of Origin China / Czech Republic
E Classification E-CS04
Efficiency %
Input Voltage Range DC (V) 24
Internal Current Consumption (A) 2.2 (Including Charging Current)
Minimum Input Voltage DC (V) 24
Nominal Output Current 'a' (A) 15
Nominal Output Current 'b' (A) 10
Output Voltage (V) 24
Special Application Hazardous location, Marine
Storage Element External lead acid battery
Temperature Tracking Of The End-of-charge Voltage Manual/Automatic
Use In Crosslinking Yes
Brand PULS
Connection Type Spring clamps
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 49W x 124H x 117D
Family DIMENSION
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 50
Range DIMENSION
Rated Current (A) 10
Series U series
Standards and Approvals ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, Class I Div. 2 Canada - UL, Class I Div. 2 USA - UL, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 545
