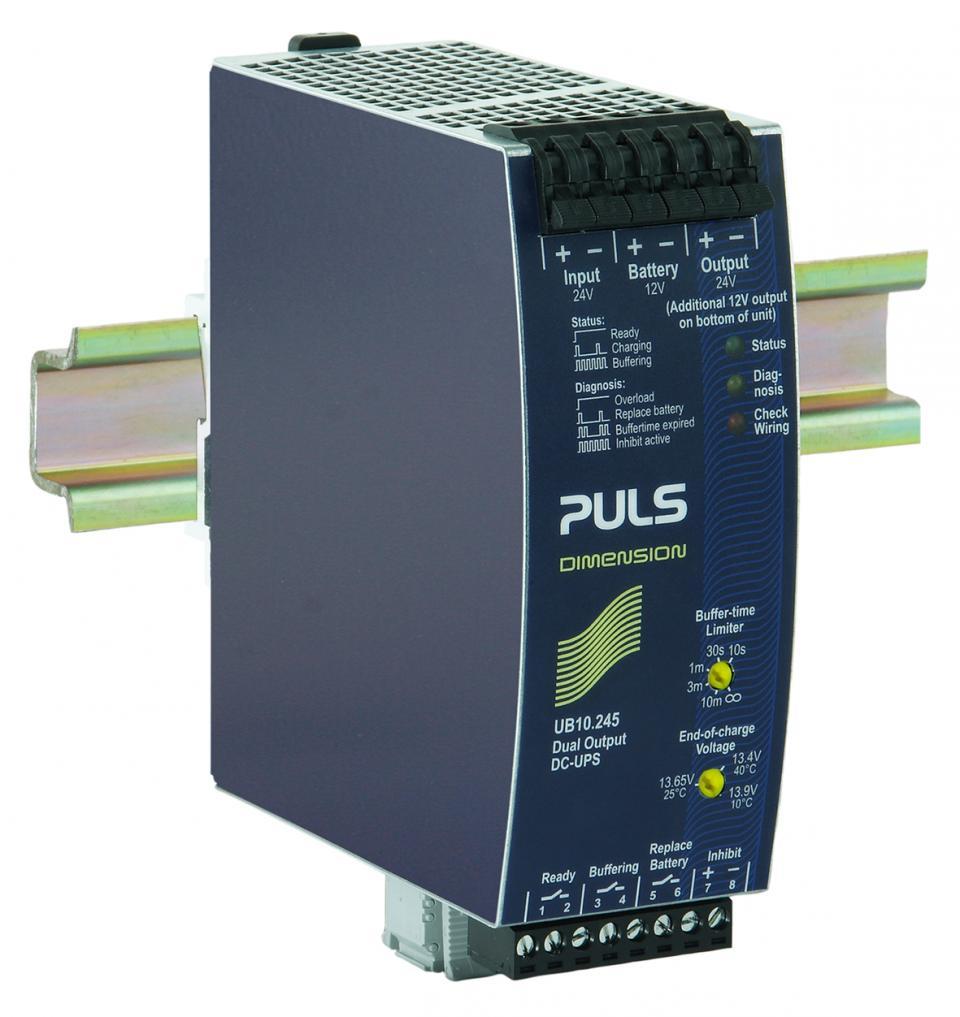

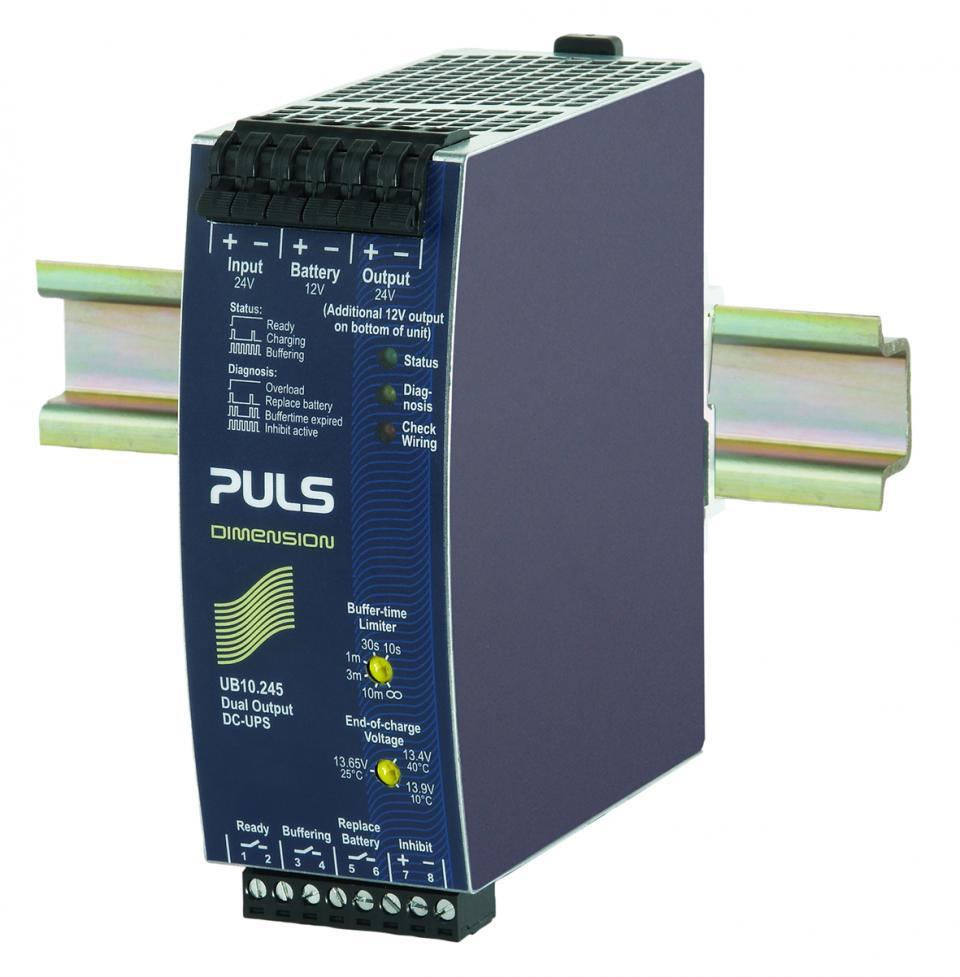

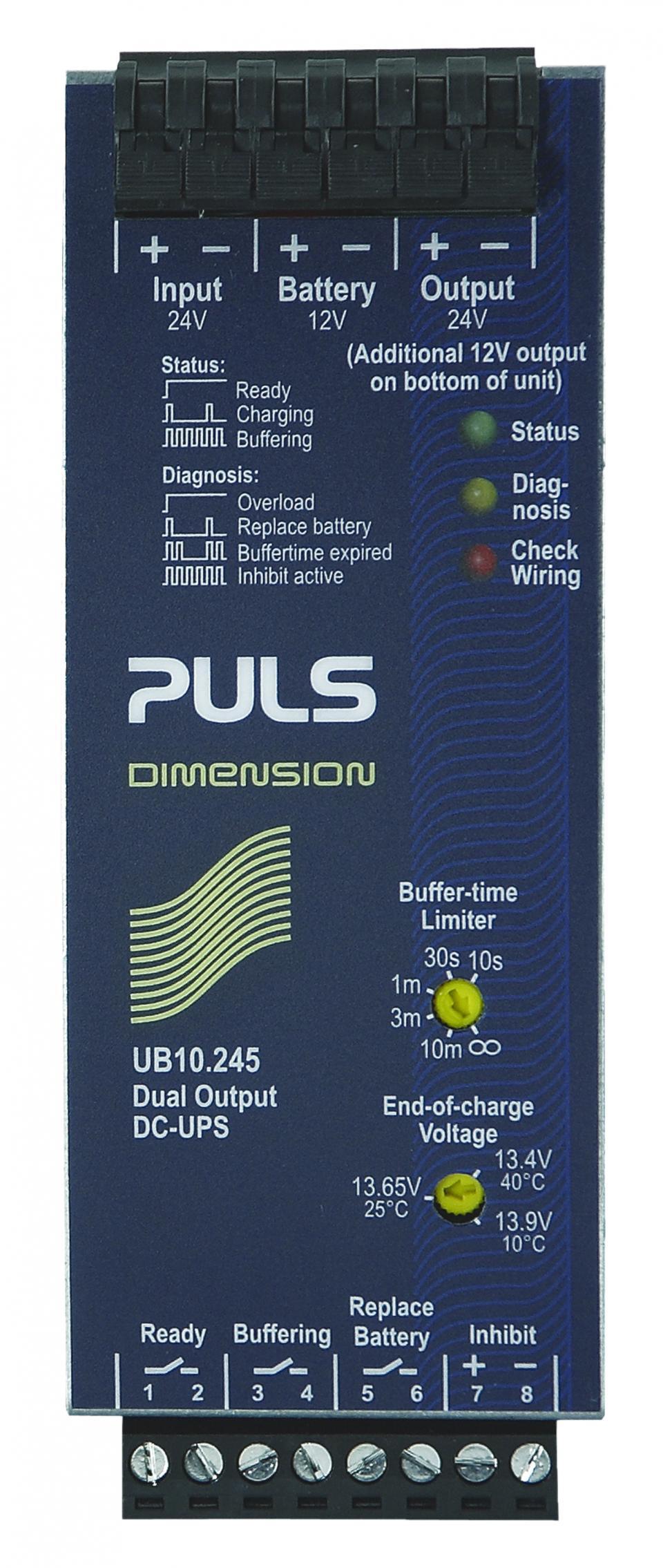

PULS DC-UPS CONTROL UNIT 24VDC 15A UB10.245

Product Code: UB10.245

The 24V DC-UPS is designed forVarious applications and features an additional 12V output. It only requires one 12V battery. The UPS provides a stable outputVoltage in buffer mode and has superior battery management for extended battery life. It also includes comprehensive diagnostic and monitoring functions, as well as an electronic overload and short circuit protection. The UPS has a power reserve of 50%.

Technical Specifications

Battery Size 12 V, 3.9 to 40 Ah
Conformal Coating No
Country of Origin China / Czech Republic
Derating 0.25 W/°C
Derating Temperature (°C) > +60
E Classification E-CS04
Efficiency %
Input Voltage Range DC (V) 24
Internal Current Consumption (A) 1.3 (Including Charging Current)
Minimum Input Voltage DC (V) 24
Nominal Output Current 'a' (A) 15
Nominal Output Current 'b' (A) 10
Output Voltage (V) 24
Special Application Hazardous location
Storage Element External lead acid battery
Temperature Tracking Of The End-of-charge Voltage Manual-select
Use In Crosslinking Yes
Brand PULS
Connection Type Spring clamps
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 49W x 124H x 117D
Family DIMENSION
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
Range DIMENSION
Rated Current (A) 10
Series U series
Standards and Approvals ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, Class I Div. 2 Canada - UL, Class I Div. 2 USA - UL, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 350
