Product Code: QS20.241

AC 100-240V wide-range input forVersatile power compatibility. Compact design with a width of only 82mm. High efficiency of up to 93.9% for optimal energy usage. Peak load capability of 150% (720W) for handling demanding tasks. Safe Hiccup PLUS overload mode and easy fuse tripping to protect against excessive current. Active power factor correction (PFC) for improved power efficiency. Negligible low inrush current surge for smooth operation. Can operate between 60VAC and 300VAC for short-term use. Works reliably in temperatures ranging from -25°C to +60°C. Features a DC-OK relay contact and quick-connect spring-clamp terminals for convenient connectivity options.

AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	China / Czech Republic
DC-OK Signal	Yes
Derating	12 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS01
Efficiency	93.90%
External Input Fuse Recommendation	B-10 A / C-10 A
Harmonic Correction	Active
Input Inrush Current (A)	9 / 7
Input Inrush Current Limitation	Active
Input Voltage Range AC (V)	100-240
Input Voltage Range DC (V)	110-150
Integrated Decoupling Function	No
Maximum Input Voltage DC (V)	150
Maximum Ripple and Noise Voltage (mVpp)	100
Minimum Input Voltage DC (V)	110
Output Current Range (A)	20 - 17
Output Power (W)	480
Output Voltage (V)	24-28
Power Reserve Type	BonusPower
Power Reserves	50%
Special Application	Hazardous location, Marine, Semiconductor
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Spring clamps
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	82W x 124H x 127D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	31.4
Range	DIMENSION
Rated Current (A)	20
Series	Q series
Standards and Approvals	Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	1200

Industrial Power Supplies

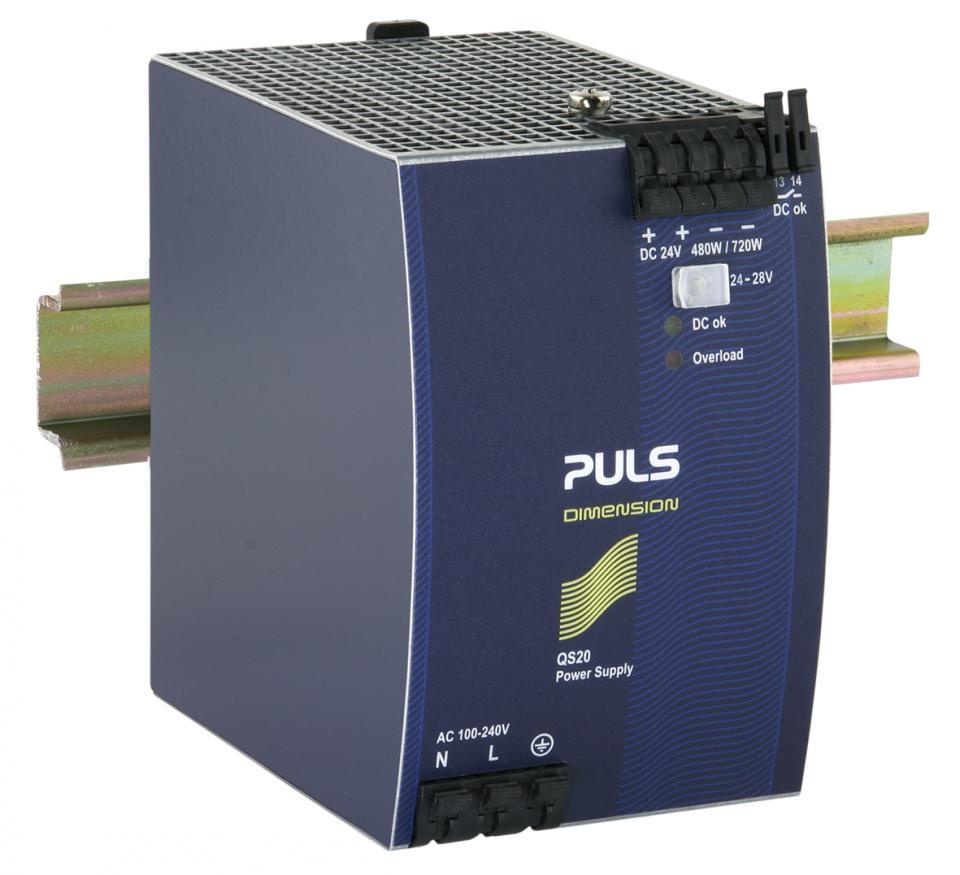

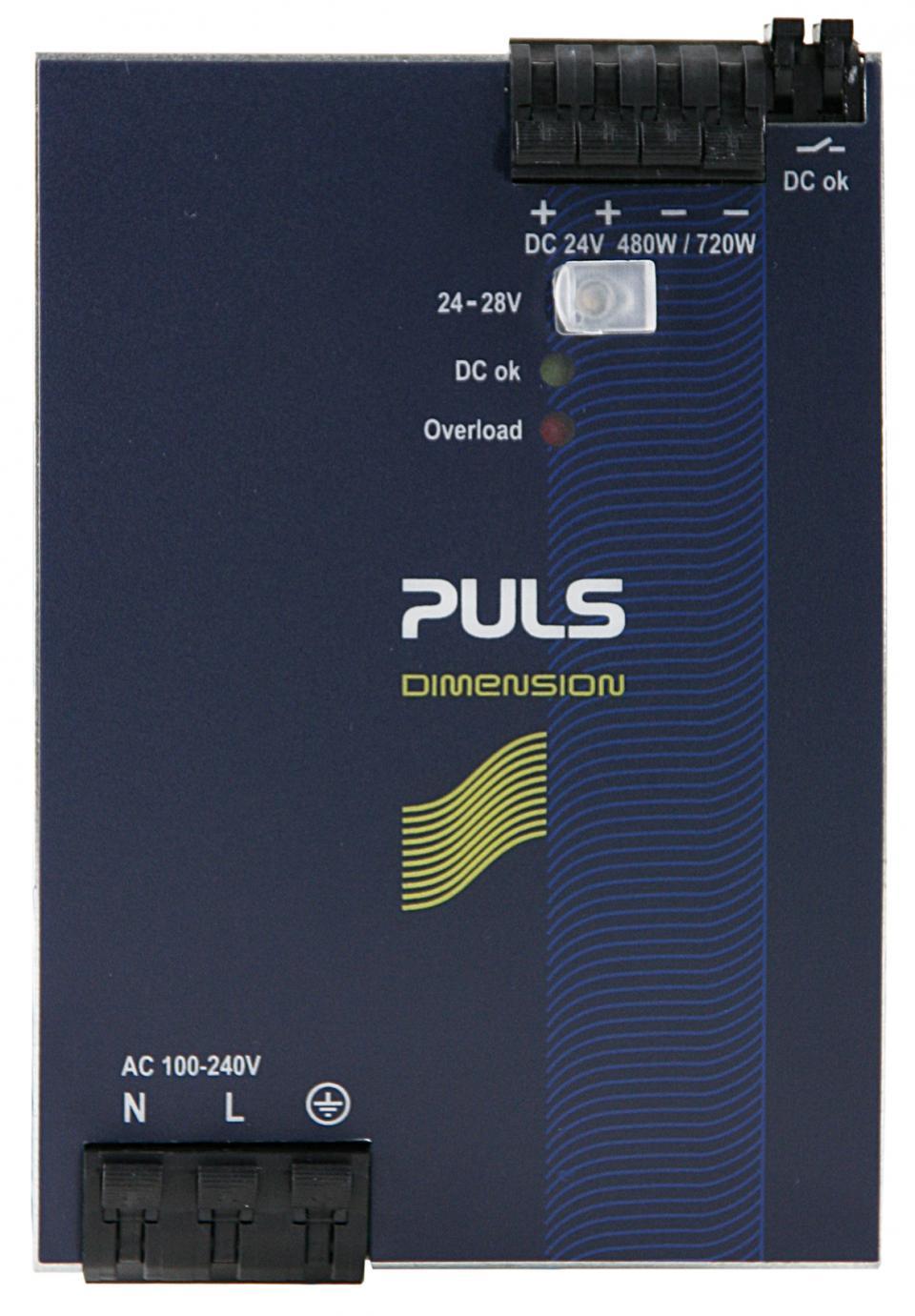

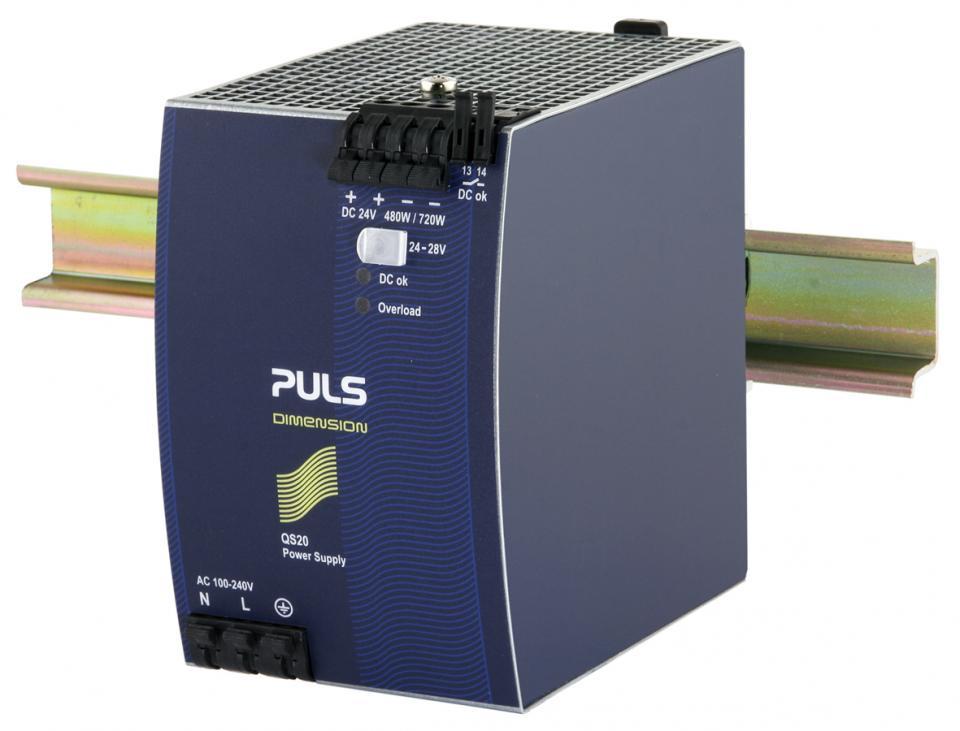

PULS DIN RAIL POWER SUPPLY 1 PHASE 24VDC 20A 480W QS20.241
