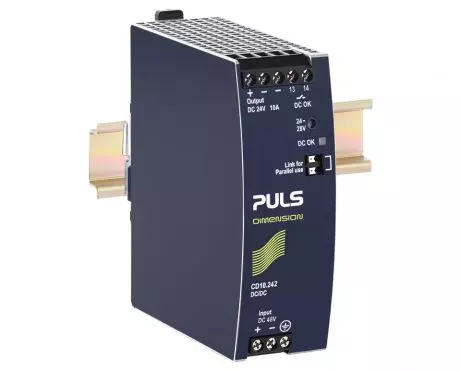

PULS DC/DC CONVERTER INPUT 48VDC OUTPUT 24-28VDC 10DC/DC CONVERTER INPUT 48VDC OU CD10.242

Product Code: CD10.242

This product is a 48V DC-input power supply with an isolated 24V DC output. It has a high efficiency of 94% and a compact width of only 42mm. With 20% output power reserves, it can operate at full power in temperatures ranging from -25 °C to 60 °C. It also features a soft-start function and minimal inrush current surge. Additionally, it offers reverse input polarity protection, a DC-OK relay contact, and a current sharing feature for parallel use.

Technical Specifications

Efficiency 94%
Input Current (A) 8
Mounting Method DIN rail
Output Current Range (A) 8.6 - 10
Output Power (W) 240
Power Reserves 20%
Brand PULS
Connection Type Screw terminals
Dimensions (mm) 42W x 124H x 117D
Input Voltage DC (V) 48
Operational Temperature Range (°C) -25 to 70
Output Voltage DC (V) 24 - 28
Power Loss (W) 15.4
Weight (g) 520
