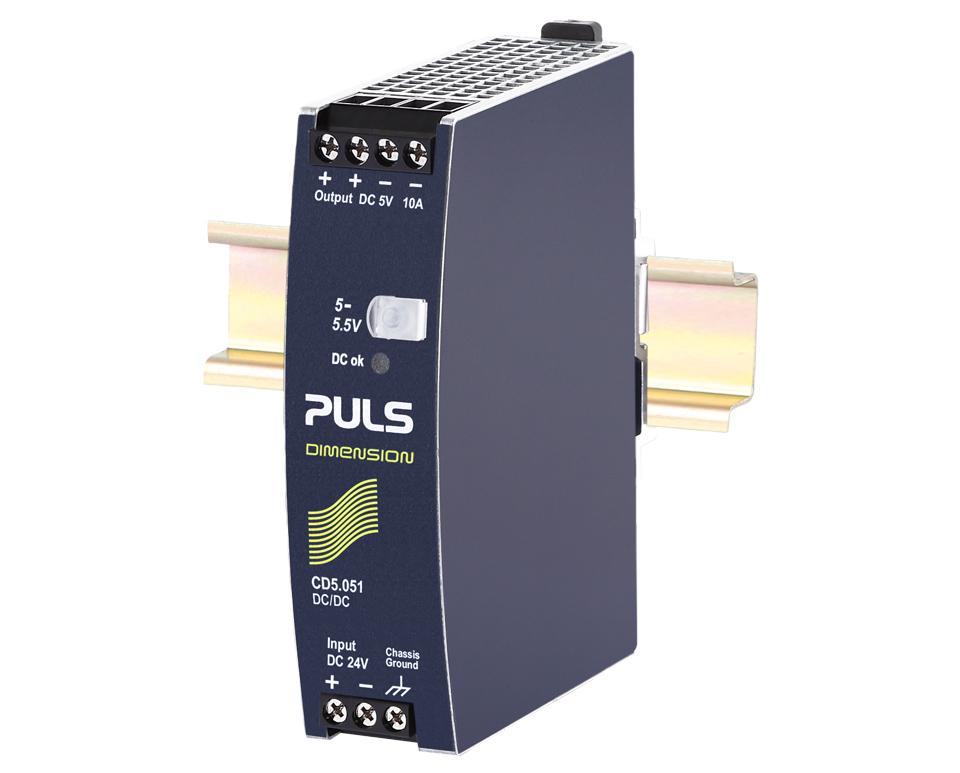

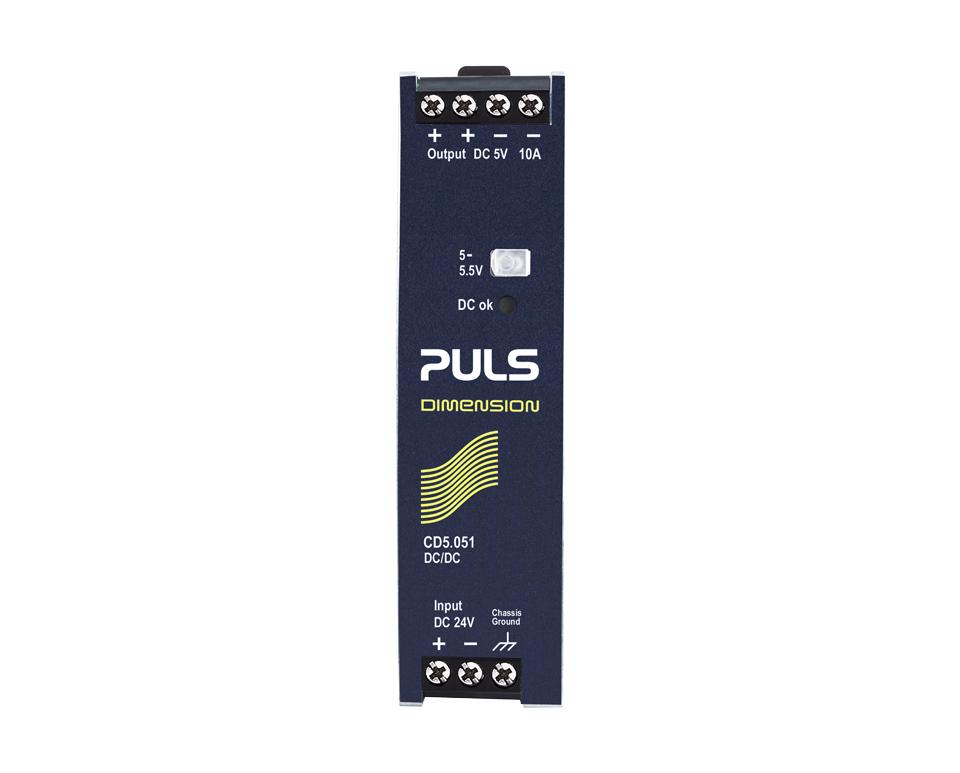

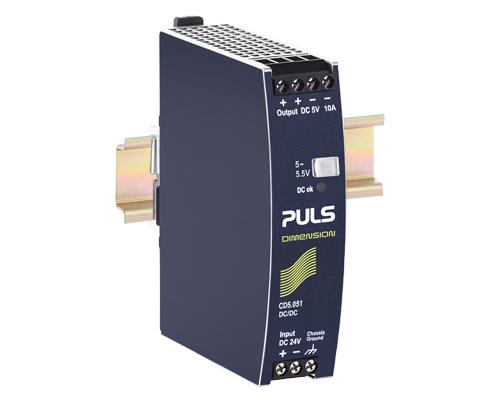

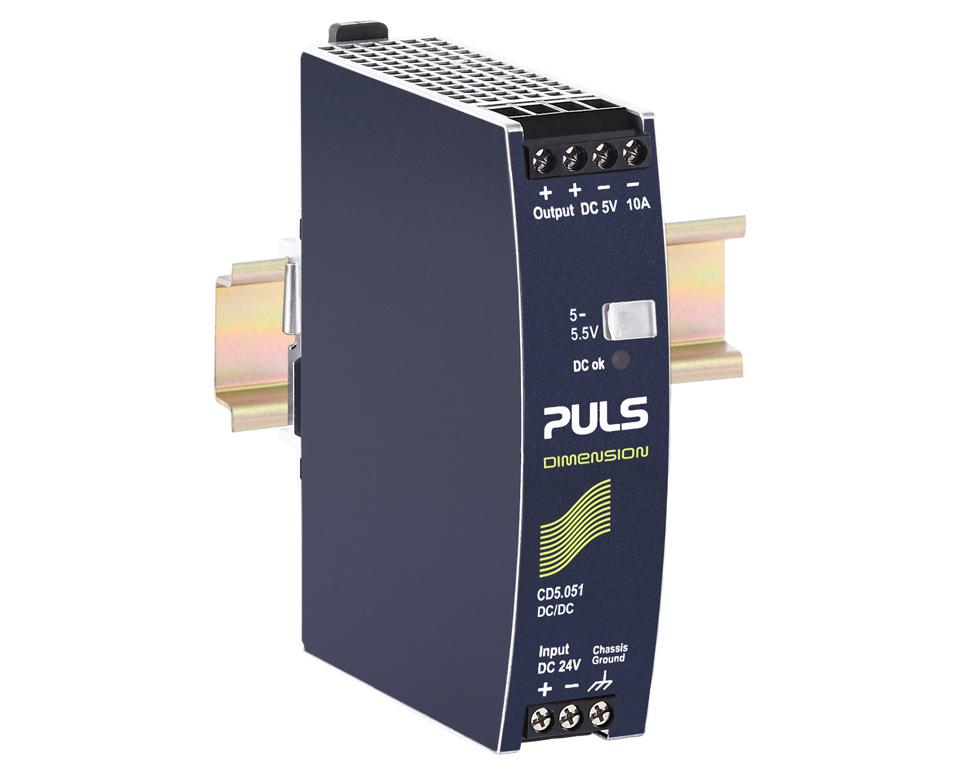

PULS DC/DC CONVERTER 5V DC 10A CD5.051

Product Code: CD5.051

This product is a 24V DC-input power supply with an isolated 5V DC output. It has a high efficiency of up to 81.5% and a compact width of only 32mm. With 20% output power reserves, it ensures reliable performance. It can operate at full power in temperatures ranging from -25°C to +60°C. The soft-start function minimizes inrush current surge, while the reverse input polarity protection provides added safety.

Technical Specifications

Conformal Coating No
Country of Origin Czech Republic
Derating 1.25 W/°C
Derating Temperature (°C) +60 to +70
E Classification E-CS02
Efficiency 81.50%
Hold Up Time (ms) 10
Input Voltage Range DC (V) 24
Integrated Decoupling Function No
Maximum Input Voltage DC (V) 32.4
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 18
Output Current Range (A) 10 - 10
Output Power (W) 50
Output Voltage (V) 5-5.5
Power Reserve Type Power Boost
Power Reserves 20%
Use In Crosslinking Yes
Brand PULS
Connection Type Screw terminals
Customs Tariff Number 85043121
Degree of Protection IP20
Dimensions (mm) 32W x 124H x 102D
Family DIMENSION
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
Power Loss (W) 11.5
Range DIMENSION
Rated Current (A) 10
Series C series
Standards and Approvals EU Declaration of Conformity, IEC 60950 CB Scheme, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 425
