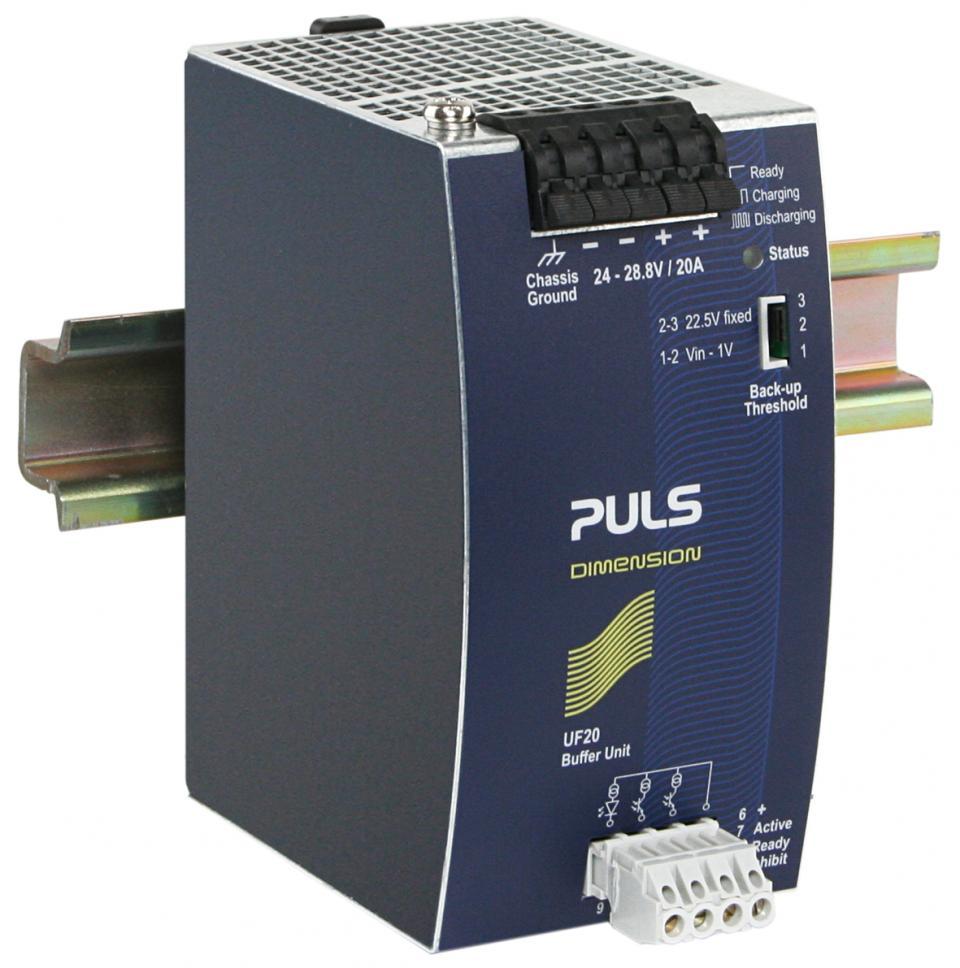

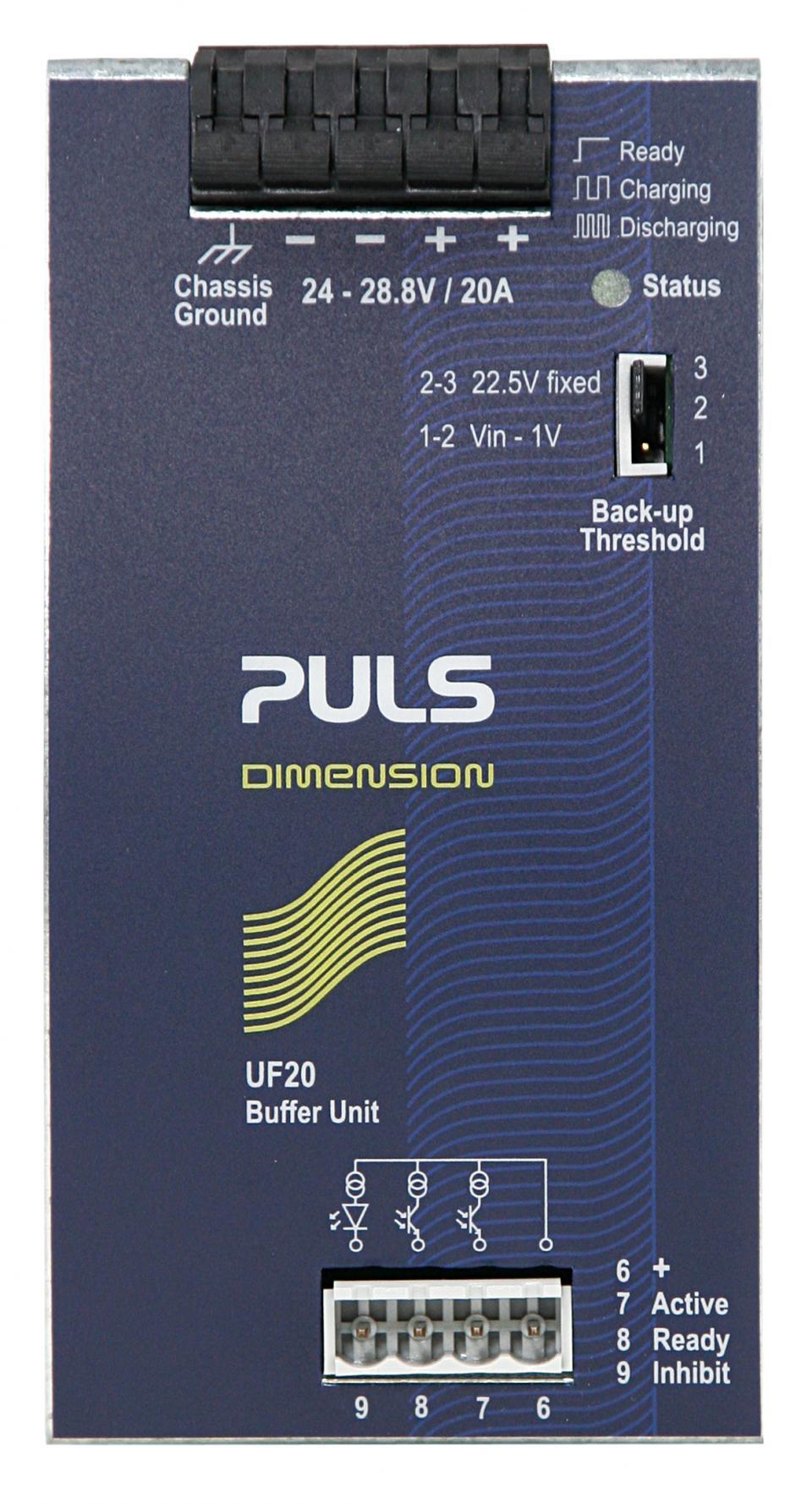

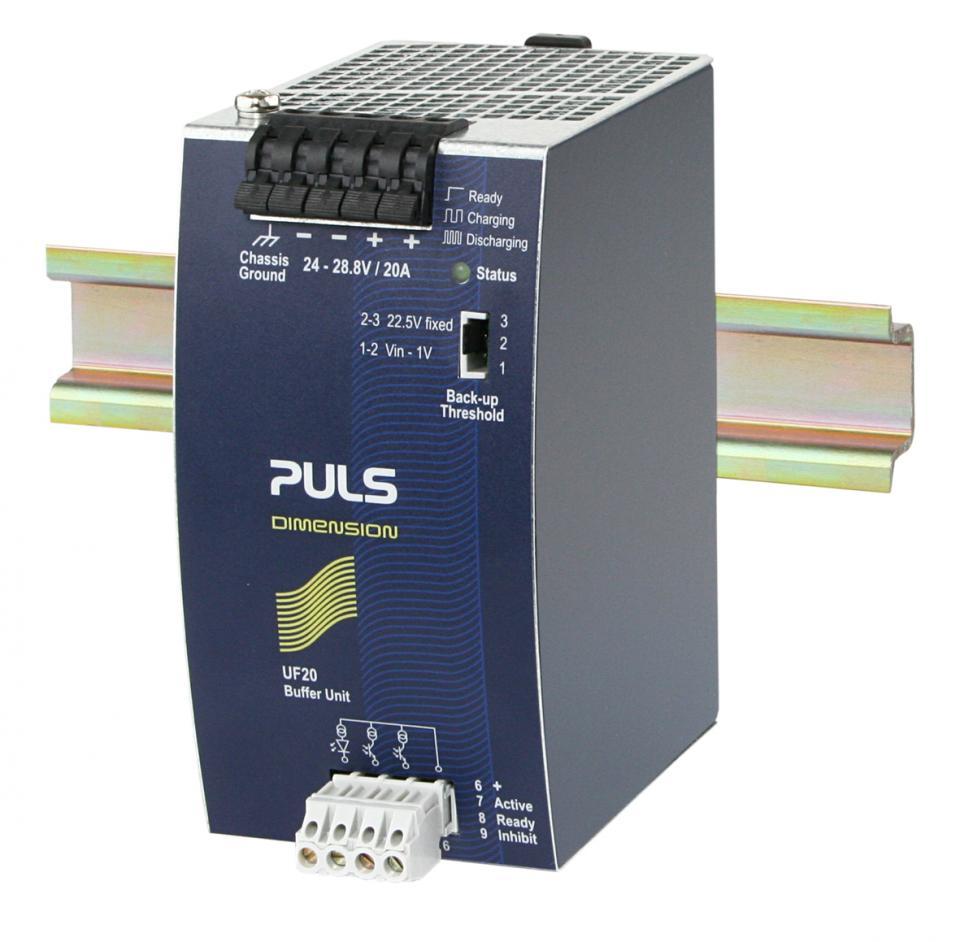

PULS BUFFER MODULE 24VDC 20A UF20.241

Product Code: UF20.241

Buffer 24V loads with electrolytic capacitors instead of lead acid batteries. Provides a minimum hold-up time of 0.2s at 20A, with longer hold-up times at lower loads. Clear status indication through status LED and signaling terminals. Features quick-connect spring-clamp terminals for easy installation.

Technical Specifications

Conformal Coating No
Country of Origin China / Czech Republic
E Classification E-CS04
Efficiency %
Input Voltage Range DC (V) 24
Maximum Input Voltage DC (V) 24
Minimum Input Voltage DC (V) 24
Nominal Output Current 'a' (A) 24
Nominal Output Current 'b' (A) 20
Output Voltage (V) 24
Storage Element Electrolytic capacitors
Use In Crosslinking Yes
Brand PULS
Connection Type Spring clamps
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 64W x 124H x 102D
Family DIMENSION
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
Range DIMENSION
Rated Current (A) 20
Series U series
Standards and Approvals EU Declaration of Conformity, IEC 60950 CB Scheme, Korea Certification, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 740
