Product Code: UC10.241

The product features built-in capacitors as an energy source, specifically EDLC electrochemical double layer capacitors. It has a wide temperature range of -40°C to +60°C and typically has an operational lifetime expectancy of over 10 years. The outputVoltage is regulated in buffer mode, and noVentilated cabinets are required as there is no generation of hydrogen likeVRLA batteries. The unit has a short charging time and quickly returns to the ready mode. The output is decoupled from the input to separate the load, and the circuits are divided into buffered and non-buffered sections. Additionally, it supports PC-Mode function.

Conformal Coating	No
Country of Origin	China / Czech Republic
E Classification	E-CS04
Efficiency	%
Input Voltage Range DC (V)	24
Minimum Input Voltage DC (V)	24
Nominal Output Current 'a' (A)	15
Nominal Output Current 'b' (A)	15
Output Voltage (V)	24
Special Application	Hazardous location
Storage Element	Electrochemical double layer capacitors
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Spring clamps
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	126W x 124H x 117D
Family	DIMENSION
Mounting Type	DIN Rail
Range	DIMENSION
Rated Current (A)	15
Series	U series
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Korea Certification, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	1150

Uninterruptible Power Supplies (UPS)

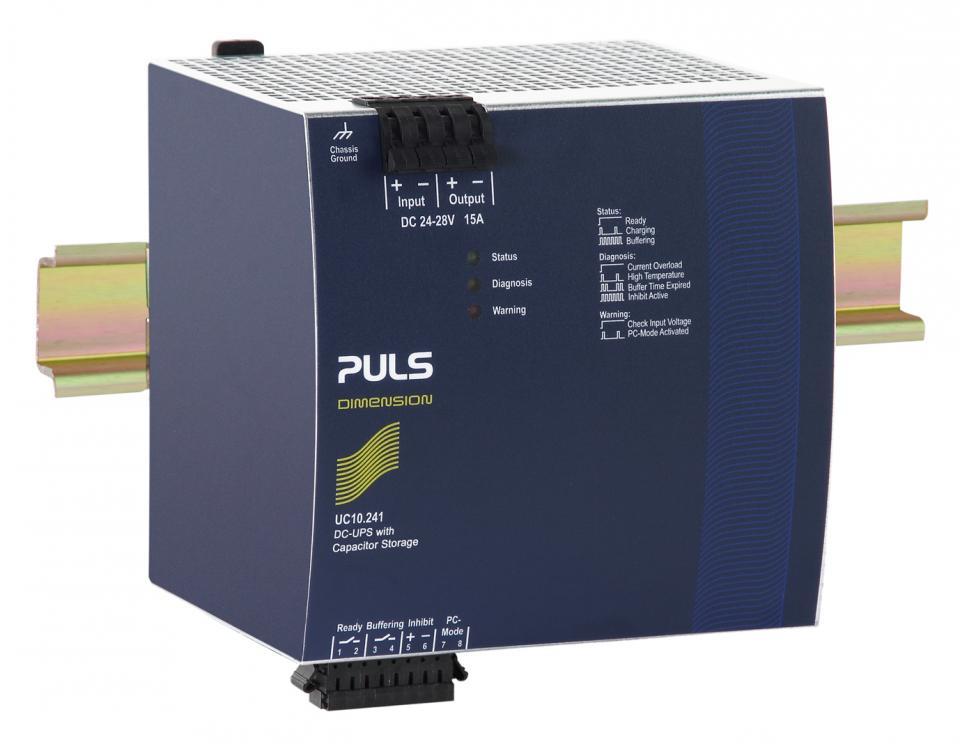

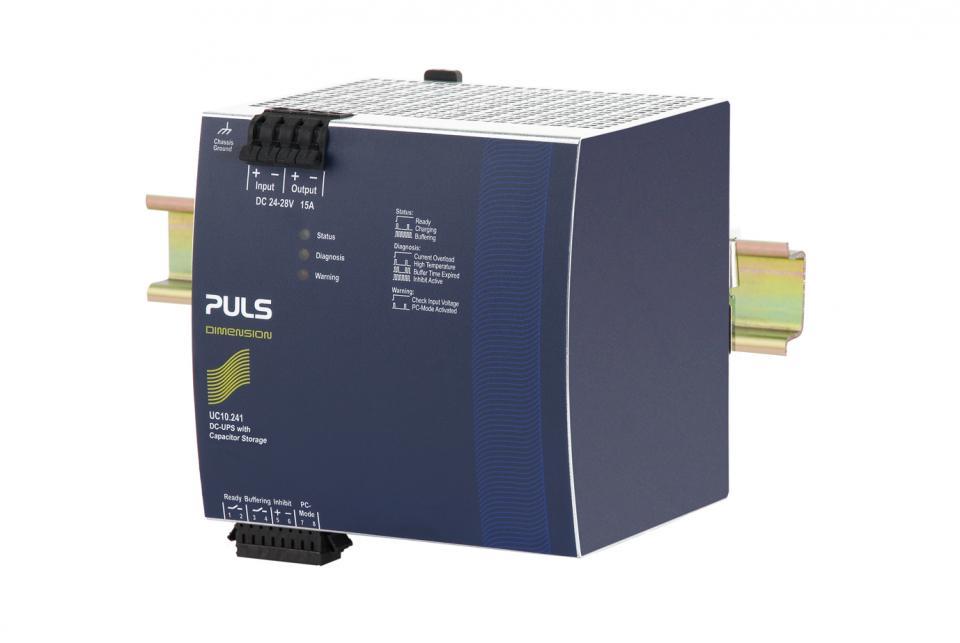

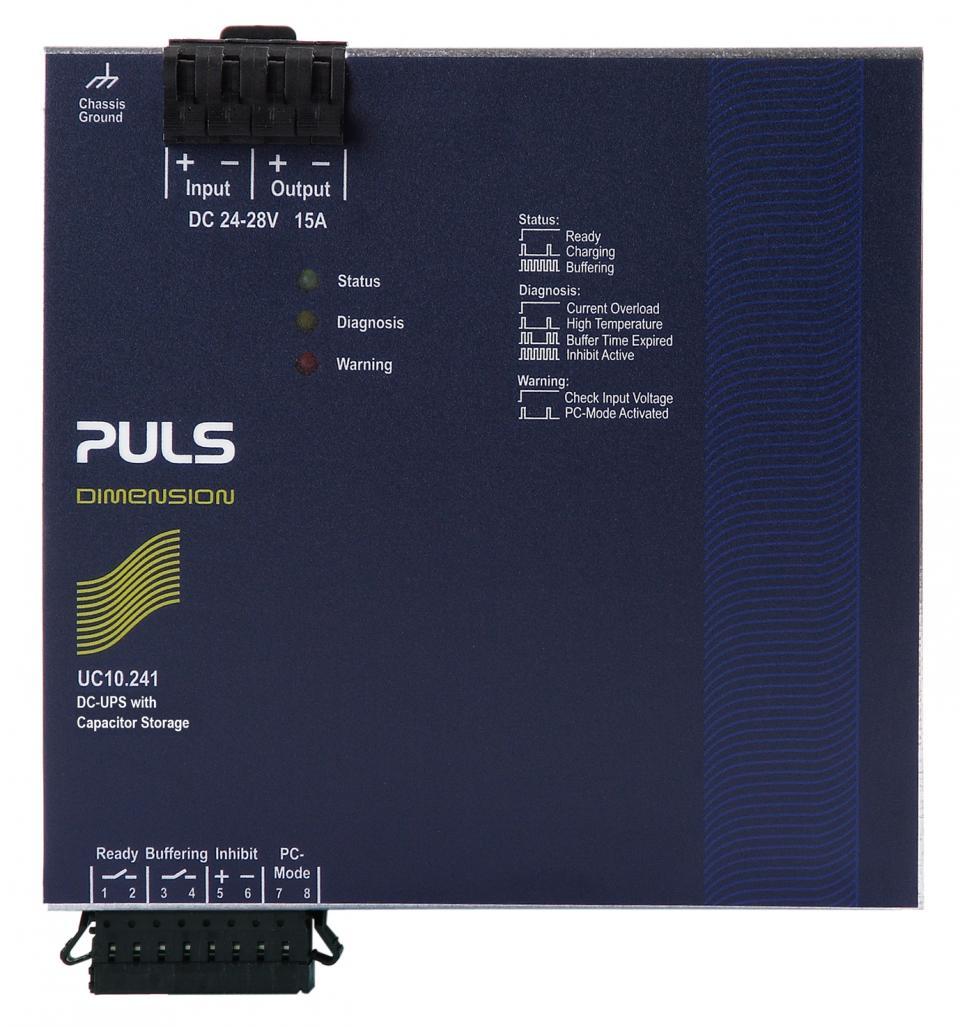

PULS DC-UPS WITH CAPACITOR-BASED 24VDC 15A UC10.241

Product Code: UC10.241

Technical Specifications
