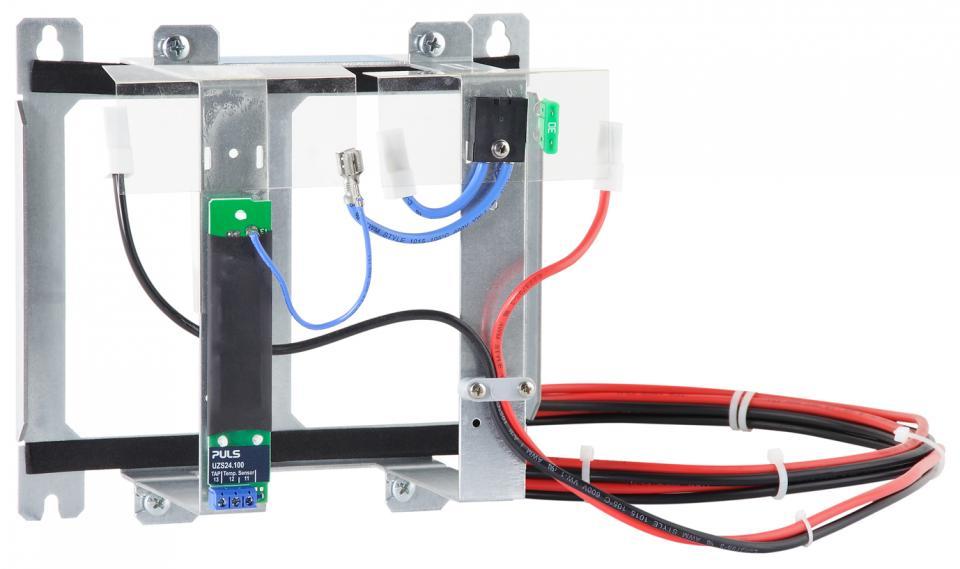

PULS BATTERY MODULE WITHOUT BATTERY UZO24.121

Product Code: UZO24.121

24V, 12Ah Battery capacity with 2x 12V batteries in series. Small mounting footprint. Includes 2m power leads, PT1000 temperature sensor, and auto-resettable fuse for center-tap connection. Comes with a 3-year warranty (excluding batteries).

Technical Specifications

Brand PULS
Conformal Coating No
Country of Origin Czech Republic
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 203W x 186H x 124D
E Classification E-CS05
Efficiency %
Family DIMENSION
Output Voltage (V) 24
Range DIMENSION
Series U series
Special Application Hazardous location
Standards and Approvals ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 61010-2-201 CB Scheme, UL 61010-2-201 Canada, UL 61010-2-201 USA
Use In Crosslinking Yes
Warranty Period (Months) 36
Weight (g) 800
