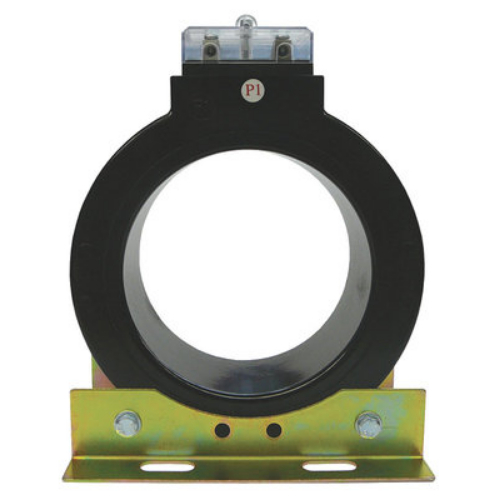

IPD WCT1500-IPD SOLID-CORE CURRENT TRANSFORMER TYPE W 1500/5 RATIO, CLASS 0.5ME/0.5S

Solid-core current transformer type 'W' with a current ratio of 1500/5 and an accuracy class of 0.5 at 15VA. It has a nominal voltage (primary) of 660VAC at 50/60Hz. The short time current for type 'W' is 50kA for 1 second. It has a dielectric quality of 3kV/1min and an insulation class of F (155 °C). The transformer is cast resin encapsulated and has a degree of protection IP40. It can operate in temperatures ranging from -20°C to +80°C. The cable diameter opening is 114mm. This transformer has been type tested to AS60044.1:2007 and AS1675:1986 standards.
