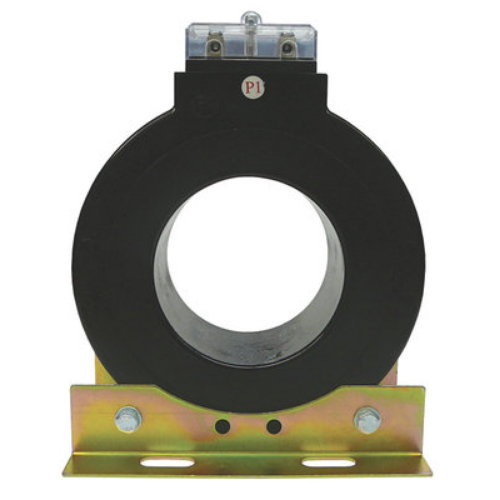

IPD TCT800-IPD SOLID-CORE CURRENT TRANSFORMER TYPE T 800/5 RATIO, CLASS 0.5ME/0.5S

Solid-core current transformer type 'T' with a current ratio of 800/5 and an accuracy class of 0.5 at 15VA. It is designed for a nominal voltage (primary) of 660VAC at 50/60Hz. This transformer can handle a short time current of 50kA for 0.5s. It has a dielectric quality of 3kV/1min and an insulation class F (155 °C). The transformer is cast resin encapsulated and has a degree of protection IP40. It operates within a temperature range of -20°C to +80°C. The cable diameter opening is 85mm. This product has been type tested to AS60044.1:2007 and AS1675:1986 standards.
