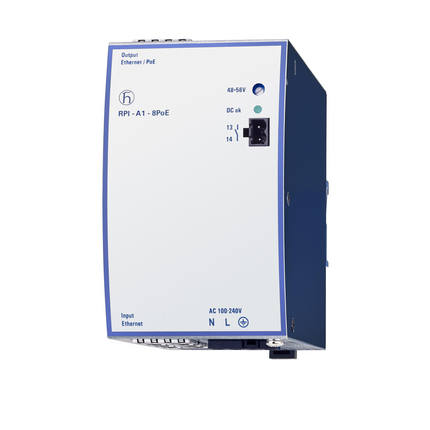

Hirschmann 942 224-001 PoE/PoE+ Injector 8 110-150VDC 100-240VAC 280 W

Product Code: 942 224-001

  • Delivers 280W power for efficient operation
  • Supports 110-150VDC, 100-240VAC input
  • Compact design: 77mm W x 128mm H x 117mm D
  • Operates in -25 to 70°C temperature range
  • IP30 protection for secure indoor use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type PoE/PoE+ Injector
Brand HIRSCHMANN
Series RPI
Degree of Protection IP30
Depth 117 mm
Height 128 mm
Humidity 5-95%
Number of 1GB Ports 8
Number of Ethernet Ports 8
Operational Temperature -25 to 70 deg C
Rated Power 280 W
Rated Voltage 110-150 VDC, 100-240 VAC
Relative Humidity 5-95 %
Standards and Approvals EN50121-4
Width 77 mm

Description

<p>When it comes to powering your industrial and commercial network devices, the RPI Series POE Injector stands as a reliable solution. Designed for those who prioritize efficiency and robustness, this product offers a comprehensive power delivery system that meets various technical requirements.</p><p>The RPI Series POE Injector boasts a rated power of 280 W, making it suitable for high-demand applications. Whether you&amp;#39;re operating within an industrial environment or managing a complex commercial setup, this injector ensures consistent performance. It supports both 110-150 VDC and 100-240 VAC inputs, providing flexibility in diverse electrical infrastructures.</p><p>One of the standout features is its operational temperature range from -25 to 70 degrees Celsius. This wide range allows the device to function effectively in extreme conditions, whether it&amp;#39;s the freezing temperatures of winter or the scorching heat of summer. The device&amp;#39;s resilience is further underscored by its IP30 degree of protection, offering sufficient defense against solid objects larger than 2.5 mm.</p><p>With dimensions measuring at a width of 77 mm, height of 128 mm, and depth of 117 mm, the injector maintains a compact profile without sacrificing performance capabilities. This makes it an ideal choice for installations where space is at a premium yet high functionality is required.</p><p>Humidity can be a concern in various environments; however, with an operational humidity tolerance ranging from 5% to 95%, this POE injector handles moisture variations with ease. Such adaptability ensures reliability even in fluctuating atmospheric conditions.</p><p>Compliance with EN50121-4 standards means that this product adheres to stringent electromagnetic compatibility requirements specific to railway applications. This approval highlights its suitability not only for general industrial use but also in specialized sectors requiring rigorous standards adherence.</p><p>In summary, the RPI Series POE Injector combines robust power delivery with versatile input options and environmental resilience. Its compliance with industry standards further enhances its appeal as a dependable component in any technical setup seeking efficiency and reliability without compromise on safety or performance metrics.</p>
