Electrical Time Switches, Timers & Control Relays

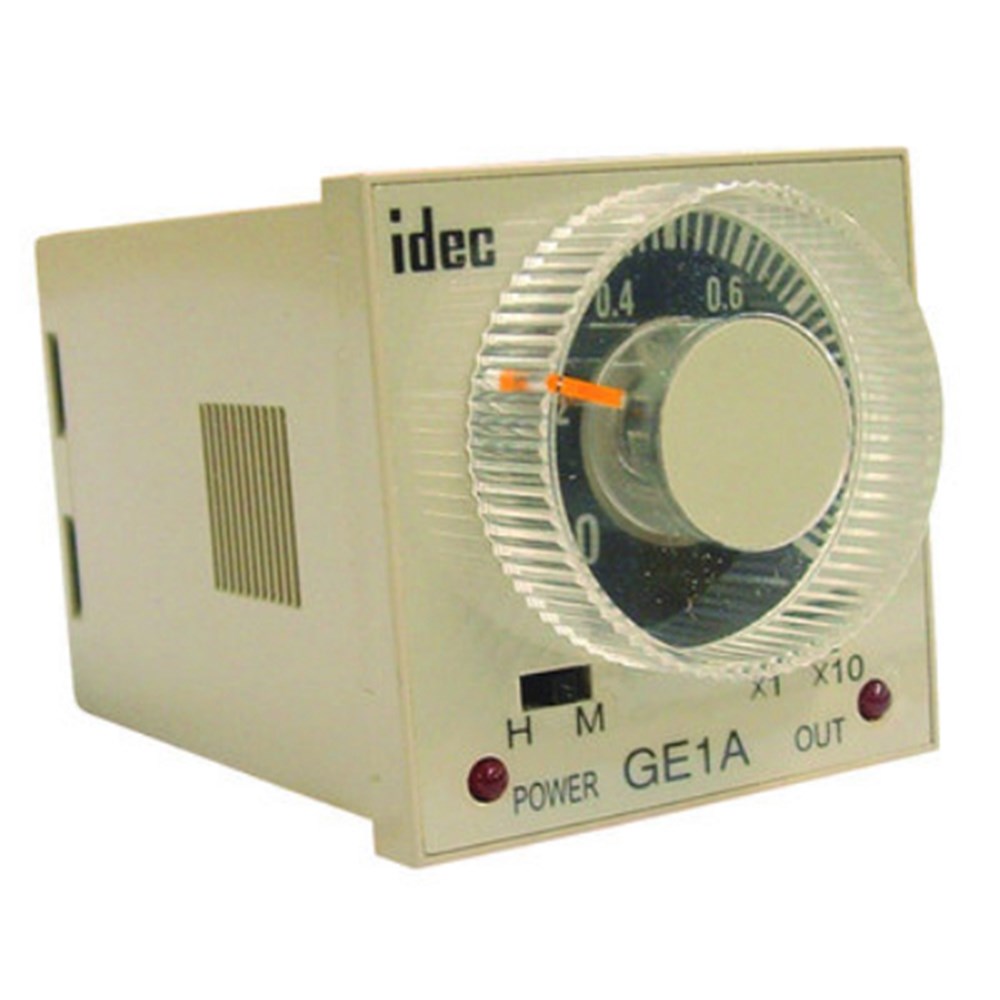

IDEC PLUG-IN TIMER 8PIN 240VAC DPDT 0.1S-10H GE1A-C10HA220

Product Code: GE1A-C10HA220

The IDEC GE1A-C10HA220 is a versatile plug-in timer with an on-delay DPDT configuration and an 8-pin octal base for reliable performance. It offers a broad timing range from 0.1 seconds to 10 hours, suitable for various applications, and operates at 240VAC. Precision is ensured with a maximum repeat error of ±0.2%. The timer features a large, clear knob for straightforward time setting and LED indicators for immediate operational status checks.

Technical Specifications

Brand IDEC
Contacts Delayed DPDT
Input Voltage AC (V) 220 - 240
Insulation Resistance (MO) 100
Maximum Reset Time (s) 0.1
No. of Pins 8
Operating Voltage AC (V) 240
Operational Temperature Range (°C) -10 to +55
Output Voltage AC (V) 240 (3A) / 120 (5A)
Output Voltage DC (V) 24
Power Consumption (W) 0.8
Series GE1A
Timing Range 0.1s - 10hrs
