Product Code: GT3A-4AD24

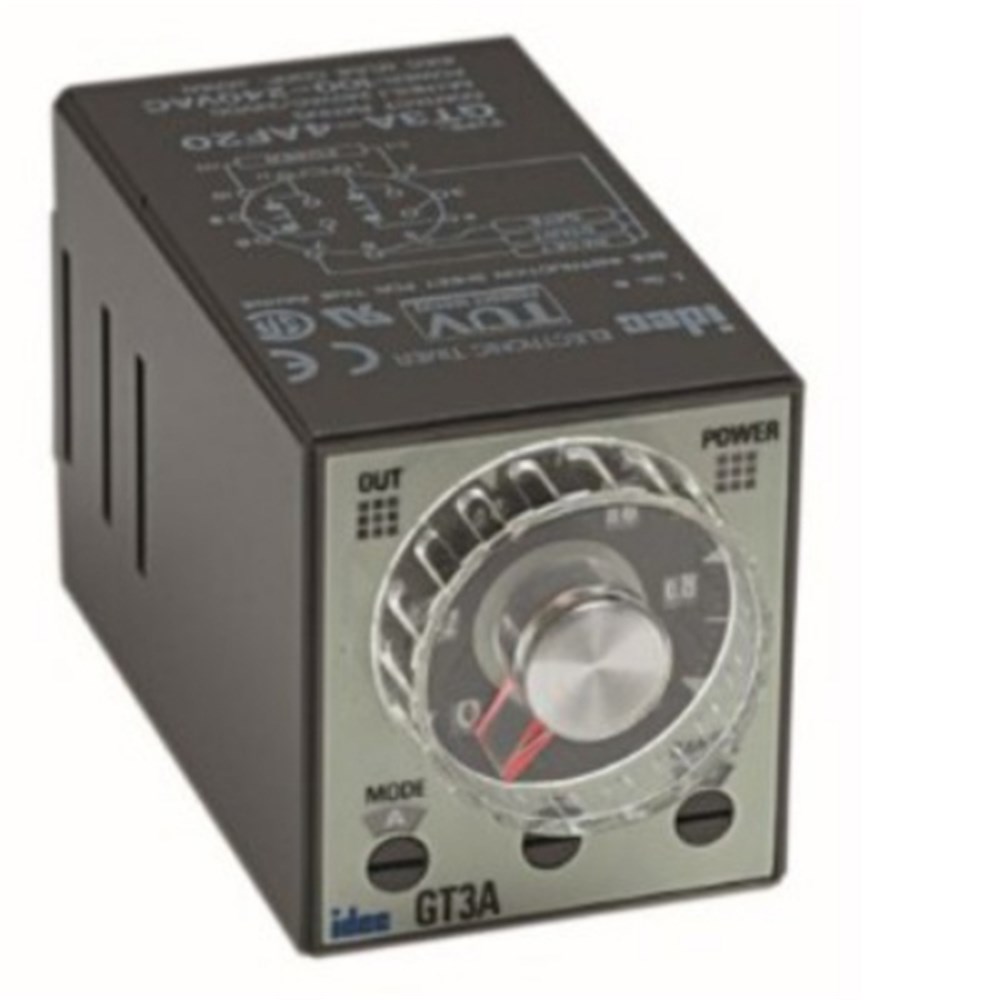

The IDEC GT3A-4AD24 is a versatile plug-in timer with DPDT contacts, designed for a wide range of timing functions. It offers four selectable operation modes and supports external start, reset, and pause inputs. Suitable for both panel and socket mounting, this 11-pin timer provides clear indication of power and output status through LEDs. With a time range from 0.05 seconds to its rated input voltage of 24VAC/DC, it ensures precise timing control in various applications.

Brand	IDEC
Contacts	Delayed DPDT
Degree of Protection	IP40 (Timer), IP20 (Socket)
Input Voltage AC (V)	24
Input Voltage AC/DC (V)	24
Input Voltage DC (V)	12
Insulation Resistance (MO)	100
Maximum Reset Time (s)	60ms
No. of Pins	11
Operational Temperature Range (°C)	-10 to +50
Output Voltage AC (V)	240
Output Voltage DC (V)	24
Pollution Degree	2
Power Consumption (W)	1.8VA (AC)/0.7W (DC)
Series	GT3A
Standards and Approvals	EN 61812-1:2011, EN IEC 63000:2018
Storage Temperature (°C)	-30 - +70
Timing Range	0.1s - 180hrs

Electrical Time Switches, Timers & Control Relays

IDEC PLUG-IN TIMER 11 PIN 24VAC/DC DPDT GT3A-4AD24
